SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.83 | 189.69 | 46.04 | 146.05 | 9.30 | 164.94 | -49.90 | 80.94 | 0.7660 | -167.3 | -43.5 | |
|
previous
or next observation for the same group /

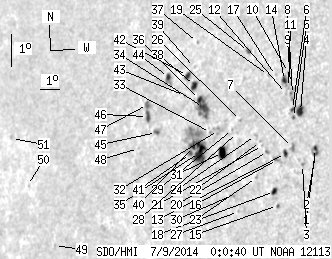

back to the solar disc SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 5.90 | 0.83 | 4.16 | 8.94 | 169.52 | -45.33 | 81.09 | 0.7134 | -811.2 | -621.7 | |
| 1.27 | -1.00 | 0.89 | -1.00 | 8.79 | 169.54 | -45.30 | 81.30 | 0.7130 | -807.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 8.42 | 169.02 | -45.82 | 81.85 | 0.7190 | -841.0 | -668.9 | |
| 4.36 | 7.17 | 3.12 | 5.14 | 10.04 | 168.66 | -46.18 | 79.64 | 0.7245 | -885.4 | -622.8 | |
| 0.36 | 1.63 | 0.26 | 1.18 | 9.84 | 168.38 | -46.46 | 79.94 | 0.7277 | -655.0 | -558.0 | |
| 0.82 | 1.82 | 0.59 | 1.31 | 10.08 | 168.29 | -46.55 | 79.62 | 0.7289 | -624.9 | -525.3 | |
| 0.00 | 3.36 | 0.00 | 2.41 | 8.92 | 168.50 | -46.35 | 81.20 | 0.7256 | -796.0 | -679.2 | |
| 0.00 | 4.27 | 0.00 | 3.09 | 10.54 | 168.21 | -46.64 | 79.00 | 0.7304 | -580.0 | -536.8 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 10.87 | 168.05 | -46.79 | 78.57 | 0.7326 | -618.0 | -507.3 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 11.21 | 167.89 | -46.95 | 78.13 | 0.7348 | -653.0 | -554.3 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 10.75 | 167.98 | -46.86 | 78.75 | 0.7332 | -610.0 | -497.0 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 10.56 | 167.93 | -46.91 | 79.01 | 0.7337 | -177.0 | -187.1 | |
| 1.73 | 3.09 | 1.24 | 2.23 | 8.73 | 168.21 | -46.63 | 81.49 | 0.7288 | -610.6 | -475.6 | |
| 2.27 | 4.90 | 1.66 | 3.57 | 10.95 | 167.76 | -47.08 | 78.49 | 0.7361 | -543.2 | -330.5 | |
| 0.36 | 1.27 | 0.26 | 0.92 | 7.12 | 168.09 | -46.75 | 83.70 | 0.7295 | 520.0 | 453.5 | |
| 0.00 | 3.81 | 0.00 | 2.77 | 8.53 | 167.88 | -46.96 | 81.79 | 0.7326 | -624.0 | -544.7 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 11.09 | 167.32 | -47.53 | 78.36 | 0.7413 | 491.0 | 432.9 | |
| 2.09 | 4.18 | 1.51 | 3.03 | 7.54 | 167.90 | -46.95 | 83.13 | 0.7319 | -477.0 | -260.5 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 11.07 | 167.00 | -47.85 | 78.42 | 0.7450 | 596.0 | 493.9 | |
| 0.00 | 1.63 | 0.00 | 1.20 | 8.75 | 167.39 | -47.45 | 81.52 | 0.7385 | -596.0 | -481.7 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 8.92 | 167.13 | -47.71 | 81.30 | 0.7416 | -467.0 | -449.5 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 9.04 | 167.02 | -47.82 | 81.15 | 0.7430 | -588.0 | -514.0 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 7.93 | 167.02 | -47.83 | 82.64 | 0.7424 | -505.0 | -427.3 | |
| 0.00 | 1.63 | 0.00 | 1.21 | 9.21 | 166.76 | -48.08 | 80.94 | 0.7461 | -448.0 | -353.8 | |
| 0.73 | 2.36 | 0.55 | 1.79 | 11.76 | 165.90 | -48.95 | 77.63 | 0.7581 | -736.9 | -571.6 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 9.64 | 165.98 | -48.87 | 80.44 | 0.7553 | -507.0 | -410.4 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 6.86 | 166.34 | -48.50 | 84.11 | 0.7499 | 381.0 | 327.4 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 9.26 | 165.91 | -48.94 | 80.93 | 0.7558 | 433.0 | 473.7 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 9.34 | 165.65 | -49.19 | 80.85 | 0.7587 | 463.0 | 459.9 | |
| 0.00 | 2.27 | 0.00 | 1.71 | 7.33 | 165.94 | -48.90 | 83.50 | 0.7545 | 627.0 | 490.8 | |
| 6.54 | 11.26 | 4.98 | 8.58 | 8.62 | 165.31 | -49.53 | 81.82 | 0.7622 | -536.8 | -254.4 | |
| 0.00 | 4.81 | 0.00 | 3.69 | 9.28 | 165.00 | -49.85 | 80.97 | 0.7660 | 378.0 | 522.1 | |
| 0.00 | 0.73 | 0.00 | 0.56 | 9.20 | 164.63 | -50.22 | 81.10 | 0.7701 | 568.0 | 565.4 | |
| 5.63 | 22.79 | 4.40 | 17.84 | 9.95 | 164.13 | -50.71 | 80.17 | 0.7759 | 900.0 | 581.0 | |
| 15.25 | 55.12 | 11.89 | 43.17 | 8.57 | 164.21 | -50.63 | 81.95 | 0.7743 | -849.3 | -120.0 | |
| 2.54 | -34.00 | 2.00 | -34.00 | 10.18 | 163.88 | -50.96 | 79.89 | 0.7788 | 715.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 11.92 | 163.36 | -51.48 | 77.71 | 0.7857 | 580.0 | 431.1 | |
| 3.54 | 5.27 | 2.81 | 4.17 | 10.60 | 163.54 | -51.30 | 79.38 | 0.7827 | 670.5 | 416.0 | |
| 0.00 | 1.00 | 0.00 | 0.79 | 11.15 | 163.41 | -51.43 | 78.69 | 0.7845 | 380.0 | 312.7 | |
| 1.63 | -35.00 | 1.28 | -35.00 | 8.74 | 163.88 | -50.96 | 81.75 | 0.7780 | -535.5 | 999999 | |
| 1.00 | -35.00 | 0.79 | -35.00 | 8.52 | 163.78 | -51.07 | 82.04 | 0.7790 | -419.7 | 999999 | |
| 2.27 | 3.63 | 1.82 | 2.91 | 10.89 | 163.12 | -51.72 | 79.05 | 0.7874 | 651.4 | 426.7 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 10.27 | 163.12 | -51.73 | 79.84 | 0.7870 | -368.0 | -261.6 | |
| 2.36 | 7.08 | 1.93 | 5.78 | 10.78 | 162.18 | -52.66 | 79.26 | 0.7972 | 577.3 | 335.2 | |
| 1.09 | 3.00 | 0.89 | 2.45 | 9.07 | 161.96 | -52.89 | 81.42 | 0.7986 | 709.6 | 560.0 | |
| 2.81 | 4.99 | 2.34 | 4.14 | 9.54 | 161.39 | -53.45 | 80.87 | 0.8047 | 554.4 | 333.8 | |
| 0.00 | 3.45 | 0.00 | 2.87 | 9.90 | 161.30 | -53.54 | 80.42 | 0.8057 | -740.0 | -456.2 | |
| 0.00 | 0.45 | 0.00 | 0.38 | 8.54 | 161.13 | -53.71 | 82.12 | 0.8069 | -169.0 | -234.2 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 5.35 | 157.08 | -57.76 | 86.01 | 0.8463 | 453.0 | 330.4 | |
| 0.00 | 0.54 | 0.00 | 0.53 | 7.09 | 155.17 | -59.68 | 83.95 | 0.8634 | 345.0 | 384.8 | |
| 0.00 | 0.64 | 0.00 | 0.65 | 8.46 | 153.84 | -61.01 | 82.38 | 0.8748 | 300.0 | 341.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
