SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.60 | 150.28 | 41.93 | 202.47 | -19.39 | 149.54 | -65.30 | 112.60 | 0.9297 | 430.9 | -4.6 | |
|
previous
or next observation for the same group /

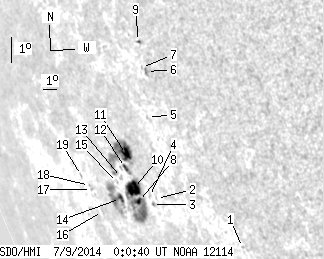

back to the solar disc SDO HMI 2014-07-09 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.68 | -21.33 | 156.18 | -58.66 | 116.37 | 0.8898 | 506.0 | 456.9 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -20.00 | 151.26 | -63.59 | 113.63 | 0.9203 | 341.0 | 364.3 | |
| 0.00 | 0.73 | 0.00 | 0.93 | -20.22 | 150.79 | -64.06 | 113.76 | 0.9236 | 363.0 | 325.4 | |
| 0.00 | 1.18 | 0.00 | 1.51 | -19.96 | 150.76 | -64.08 | 113.48 | 0.9233 | 402.0 | 351.3 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -17.28 | 152.44 | -62.41 | 111.01 | 0.9083 | 191.0 | 270.7 | |
| 0.00 | 3.54 | 0.00 | 4.00 | -15.75 | 153.23 | -61.61 | 109.54 | 0.9002 | 619.0 | 476.5 | |
| 0.00 | 0.82 | 0.00 | 0.93 | -15.64 | 152.95 | -61.89 | 109.36 | 0.9020 | 428.0 | 361.8 | |
| 2.36 | 56.57 | 3.14 | 75.73 | -20.19 | 149.75 | -65.10 | 113.49 | 0.9298 | 366.6 | 63.1 | |
| 0.36 | 1.45 | 0.41 | 1.63 | -14.80 | 153.19 | -61.66 | 108.49 | 0.8990 | 265.5 | 181.9 | |
| 16.53 | -8.00 | 21.98 | -8.00 | -19.76 | 149.69 | -65.15 | 113.03 | 0.9295 | 543.0 | 999999 | |
| 7.45 | 51.03 | 9.67 | 67.60 | -18.63 | 150.01 | -64.83 | 111.90 | 0.9260 | 801.5 | 96.5 | |
| 2.18 | -11.00 | 2.89 | -11.00 | -19.08 | 149.60 | -65.24 | 112.29 | 0.9291 | 472.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 2.60 | -19.44 | 149.00 | -65.84 | 112.54 | 0.9331 | 356.0 | 207.3 | |
| 2.72 | 28.60 | 3.84 | 41.08 | -20.18 | 148.31 | -66.53 | 113.16 | 0.9380 | -50.5 | -316.5 | |
| 0.00 | 0.27 | 0.00 | 0.38 | -19.64 | 148.52 | -66.32 | 112.64 | 0.9361 | 153.0 | 132.3 | |
| 0.00 | 0.73 | 0.00 | 1.13 | -20.73 | 146.25 | -68.59 | 113.32 | 0.9495 | -341.0 | -335.4 | |
| 0.00 | 0.91 | 0.00 | 1.43 | -20.03 | 145.94 | -68.91 | 112.53 | 0.9504 | -530.0 | -487.1 | |
| 0.00 | 0.27 | 0.00 | 0.43 | -19.90 | 145.88 | -68.97 | 112.38 | 0.9505 | -471.0 | -432.0 | |
| 0.00 | 1.09 | 0.00 | 1.75 | -19.60 | 145.43 | -69.42 | 111.99 | 0.9525 | -297.0 | -350.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
