SDO HMI 2014-07-09 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.03 | 248.29 | 34.29 | 183.04 | 14.51 | 261.42 | 47.13 | 286.32 | 0.7409 | -353.6 | -230.3 | |
|
previous
or next observation for the same group /

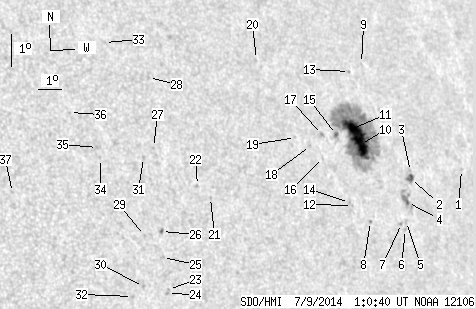

back to the solar disc SDO HMI 2014-07-09 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.59 | 13.57 | 266.73 | 52.44 | 284.25 | 0.7973 | -315.0 | -349.6 | |
| 3.00 | 4.72 | 2.32 | 3.65 | 13.42 | 264.12 | 49.83 | 284.41 | 0.7697 | -682.6 | -553.9 | |
| 0.00 | 1.63 | 0.00 | 1.27 | 13.63 | 264.18 | 49.89 | 284.68 | 0.7706 | -426.0 | -430.0 | |
| 1.18 | 11.44 | 0.90 | 8.76 | 12.69 | 263.78 | 49.48 | 283.51 | 0.7650 | -650.5 | -523.6 | |
| 0.00 | 2.09 | 0.00 | 1.59 | 12.11 | 263.58 | 49.28 | 282.78 | 0.7622 | -319.0 | -299.6 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 11.87 | 263.47 | 49.18 | 282.47 | 0.7607 | -649.0 | -496.7 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 12.06 | 263.32 | 49.03 | 282.74 | 0.7593 | -642.0 | -568.8 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 12.19 | 261.90 | 47.60 | 283.11 | 0.7434 | 279.0 | 324.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 17.08 | 262.91 | 48.62 | 289.37 | 0.7626 | 263.0 | 159.3 | |
| 22.79 | 197.42 | 16.98 | 146.92 | 14.58 | 262.06 | 47.77 | 286.26 | 0.7487 | -874.5 | -275.6 | |
| 17.34 | -10.00 | 12.88 | -10.00 | 15.09 | 261.83 | 47.54 | 286.99 | 0.7471 | -881.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 12.72 | 261.19 | 46.90 | 283.92 | 0.7361 | -615.0 | -518.5 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 16.86 | 262.26 | 47.97 | 289.23 | 0.7551 | 503.0 | 391.3 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 12.82 | 261.08 | 46.79 | 284.07 | 0.7349 | -564.0 | -548.2 | |
| 1.18 | -10.00 | 0.86 | -10.00 | 14.94 | 261.04 | 46.75 | 286.94 | 0.7380 | -822.5 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 14.26 | 260.26 | 45.97 | 286.18 | 0.7278 | -500.0 | -531.0 | |
| 0.00 | 1.73 | 0.00 | 1.25 | 14.97 | 260.41 | 46.12 | 287.11 | 0.7309 | -718.0 | -600.2 | |
| 0.00 | 0.64 | 0.00 | 0.45 | 14.65 | 259.78 | 45.49 | 286.82 | 0.7230 | -583.0 | -444.4 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 14.93 | 259.18 | 44.89 | 287.33 | 0.7166 | -525.0 | -461.8 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 17.43 | 258.16 | 43.87 | 291.04 | 0.7107 | 630.0 | 560.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 13.24 | 255.12 | 40.83 | 285.86 | 0.6639 | 518.0 | 452.8 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 13.63 | 254.67 | 40.37 | 286.57 | 0.6590 | 552.0 | 455.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 10.49 | 252.93 | 38.64 | 282.13 | 0.6302 | 551.0 | 474.6 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 10.37 | 252.87 | 38.58 | 281.95 | 0.6292 | 672.0 | 557.5 | |
| 0.00 | 1.73 | 0.00 | 1.10 | 11.48 | 252.84 | 38.55 | 283.70 | 0.6309 | 685.0 | 515.2 | |
| 0.54 | 1.63 | 0.35 | 1.04 | 12.28 | 252.94 | 38.65 | 284.94 | 0.6338 | 679.5 | 526.3 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 14.88 | 253.13 | 38.84 | 288.90 | 0.6429 | 525.0 | 465.2 | |
| 0.00 | 1.73 | 0.00 | 1.13 | 17.06 | 253.44 | 39.14 | 292.08 | 0.6535 | 276.0 | 235.3 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 12.18 | 252.25 | 37.96 | 284.96 | 0.6245 | 397.0 | 368.4 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 10.62 | 251.96 | 37.67 | 282.53 | 0.6175 | 765.0 | 700.0 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 14.59 | 252.66 | 38.37 | 288.60 | 0.6361 | 653.0 | 563.6 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 10.33 | 251.49 | 37.20 | 282.16 | 0.6106 | 673.0 | 585.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 18.23 | 251.93 | 37.64 | 294.42 | 0.6393 | 468.0 | 384.7 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 14.62 | 250.96 | 36.67 | 289.24 | 0.6142 | 378.0 | 354.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 14.97 | 250.91 | 36.62 | 289.81 | 0.6147 | 706.0 | 554.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 16.10 | 250.04 | 35.75 | 291.94 | 0.6074 | 467.0 | 396.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 13.70 | 247.41 | 33.12 | 289.08 | 0.5638 | 615.0 | 426.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
