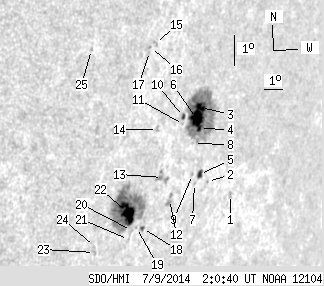

SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.60 | 264.56 | 44.31 | 235.95 | -11.90 | 268.03 | 54.29 | 252.99 | 0.8329 | 117.9 | -54.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 2.63 | -13.16 | 272.05 | 58.31 | 252.55 | 0.8705 | 561.0 | 437.7 | |
| 0.00 | 0.91 | 0.00 | 0.87 | -12.66 | 270.52 | 56.78 | 252.75 | 0.8567 | 252.0 | 242.1 | |
| 5.18 | 118.16 | 4.73 | 108.38 | -10.27 | 269.40 | 55.66 | 255.25 | 0.8422 | 759.1 | 143.7 | |
| 2.00 | -3.00 | 1.84 | -3.00 | -10.94 | 269.53 | 55.79 | 254.50 | 0.8446 | 506.6 | 999999 | |
| 2.82 | 4.45 | 2.65 | 4.18 | -12.41 | 269.98 | 56.24 | 252.91 | 0.8515 | 495.2 | 381.3 | |
| 16.89 | -3.00 | 15.41 | -3.00 | -10.61 | 269.27 | 55.53 | 254.82 | 0.8417 | 812.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.94 | -12.68 | 269.79 | 56.05 | 252.54 | 0.8504 | 421.0 | 354.6 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -11.40 | 269.33 | 55.59 | 253.92 | 0.8437 | 338.0 | 184.0 | |
| 0.00 | 1.09 | 0.00 | 1.01 | -12.39 | 269.58 | 55.84 | 252.83 | 0.8479 | 451.0 | 376.4 | |
| 1.27 | 2.45 | 1.14 | 2.19 | -10.51 | 268.53 | 54.79 | 254.77 | 0.8347 | 680.4 | 606.2 | |
| 0.00 | 1.00 | 0.00 | 0.90 | -10.76 | 268.60 | 54.86 | 254.49 | 0.8358 | 528.0 | 478.1 | |
| 0.00 | 5.63 | 0.00 | 5.11 | -13.12 | 268.55 | 54.80 | 251.72 | 0.8403 | 537.0 | 388.0 | |
| 0.00 | 8.08 | 0.00 | 7.20 | -12.39 | 267.93 | 54.19 | 252.40 | 0.8331 | 372.0 | 402.8 | |
| 0.00 | 2.18 | 0.00 | 1.89 | -10.84 | 267.23 | 53.49 | 254.05 | 0.8232 | 626.0 | 458.6 | |
| 0.00 | 2.36 | 0.00 | 1.99 | -8.12 | 266.52 | 52.78 | 257.15 | 0.8108 | 603.0 | 542.2 | |
| 0.00 | 0.64 | 0.00 | 0.53 | -8.23 | 266.29 | 52.55 | 256.96 | 0.8086 | 625.0 | 602.6 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -8.35 | 266.26 | 52.52 | 256.81 | 0.8086 | 406.0 | 364.9 | |
| 0.91 | 2.00 | 0.81 | 1.77 | -13.98 | 267.38 | 53.63 | 250.39 | 0.8316 | -497.2 | -386.2 | |
| 0.00 | 0.64 | 0.00 | 0.56 | -13.93 | 267.04 | 53.30 | 250.35 | 0.8284 | -385.0 | -315.0 | |
| 0.00 | 0.45 | 0.00 | 0.40 | -14.01 | 266.80 | 53.06 | 250.19 | 0.8265 | -152.0 | -201.0 | |
| 0.00 | 1.09 | 0.00 | 0.95 | -14.29 | 266.74 | 53.00 | 249.83 | 0.8266 | -259.0 | -254.0 | |
| 20.53 | 103.08 | 17.73 | 88.82 | -13.42 | 266.40 | 52.66 | 250.77 | 0.8212 | -837.9 | -447.4 | |
| 0.00 | 2.54 | 0.00 | 2.15 | -14.62 | 265.09 | 51.35 | 248.93 | 0.8120 | -534.0 | -322.8 | |
| 0.00 | 0.73 | 0.00 | 0.61 | -14.43 | 265.03 | 51.29 | 249.15 | 0.8109 | -443.0 | -353.4 | |
| 0.00 | 1.63 | 0.00 | 1.28 | -8.14 | 263.36 | 49.62 | 256.37 | 0.7782 | -479.0 | -417.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
