SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.77 | 231.14 | 35.25 | 171.65 | 14.55 | 261.29 | 47.55 | 286.28 | 0.7455 | -351.2 | -222.4 | |
|
previous
or next observation for the same group /

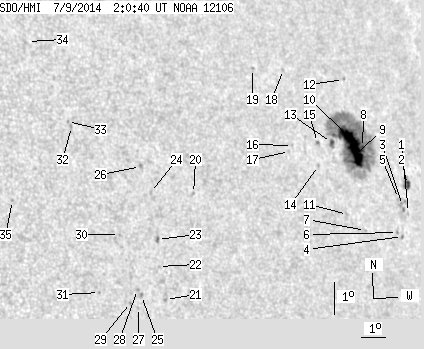

back to the solar disc SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.42 | 12.63 | 264.04 | 50.30 | 283.31 | 0.7738 | -423.0 | -361.0 | |
| 3.45 | 5.54 | 2.70 | 4.34 | 13.49 | 264.24 | 50.50 | 284.40 | 0.7769 | -645.4 | -483.1 | |
| 0.00 | 5.27 | 0.00 | 4.08 | 12.85 | 263.81 | 50.07 | 283.64 | 0.7715 | -595.0 | -611.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 11.90 | 263.56 | 49.82 | 282.44 | 0.7678 | -510.0 | -465.3 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 13.08 | 263.68 | 49.94 | 283.95 | 0.7704 | -606.0 | -548.2 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 12.04 | 263.35 | 49.61 | 282.64 | 0.7656 | -652.0 | -556.2 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 12.17 | 261.86 | 48.12 | 283.01 | 0.7492 | 484.0 | 459.5 | |
| 2.09 | 187.18 | 1.58 | 140.73 | 14.73 | 262.42 | 48.67 | 286.29 | 0.7589 | -290.6 | -286.0 | |
| 21.25 | -8.00 | 15.99 | -8.00 | 14.56 | 262.08 | 48.34 | 286.13 | 0.7550 | -892.5 | 999999 | |
| 18.35 | -8.00 | 13.77 | -8.00 | 15.10 | 261.86 | 48.12 | 286.88 | 0.7535 | -846.4 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.40 | 12.70 | 261.15 | 47.41 | 283.82 | 0.7419 | -615.0 | -498.3 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 16.88 | 262.20 | 48.46 | 289.14 | 0.7604 | 452.0 | 393.8 | |
| 1.63 | -8.00 | 1.21 | -8.00 | 14.95 | 261.01 | 47.27 | 286.85 | 0.7438 | -764.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 14.27 | 260.22 | 46.48 | 286.09 | 0.7337 | -579.0 | -542.1 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 14.98 | 260.37 | 46.63 | 287.02 | 0.7367 | -658.0 | -525.4 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 14.94 | 259.22 | 45.48 | 287.21 | 0.7235 | -544.0 | -450.9 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 14.77 | 259.04 | 45.29 | 287.00 | 0.7210 | -622.0 | -531.8 | |
| 0.00 | 0.36 | 0.00 | 0.26 | 17.32 | 259.52 | 45.78 | 290.36 | 0.7320 | 425.0 | 342.8 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 17.41 | 258.14 | 44.40 | 290.86 | 0.7167 | 541.0 | 473.3 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 13.65 | 254.62 | 40.88 | 286.45 | 0.6654 | 584.0 | 531.5 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 10.44 | 252.89 | 39.15 | 281.95 | 0.6369 | 648.0 | 576.5 | |
| 0.00 | 0.54 | 0.00 | 0.35 | 11.47 | 252.78 | 39.03 | 283.57 | 0.6372 | 628.0 | 620.0 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 12.30 | 252.88 | 39.14 | 284.84 | 0.6402 | 683.0 | 542.5 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 13.75 | 252.87 | 39.13 | 287.08 | 0.6436 | 590.0 | 501.9 | |
| 0.00 | 1.82 | 0.00 | 1.15 | 10.61 | 251.96 | 38.22 | 282.39 | 0.6249 | 719.0 | 627.5 | |
| 0.00 | 1.73 | 0.00 | 1.11 | 14.57 | 252.64 | 38.90 | 288.41 | 0.6427 | 704.0 | 575.6 | |
| 0.00 | 0.64 | 0.00 | 0.40 | 10.24 | 251.79 | 38.05 | 281.84 | 0.6219 | 695.0 | 517.0 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 10.80 | 251.83 | 38.09 | 282.72 | 0.6235 | 554.0 | 525.1 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 10.41 | 251.50 | 37.76 | 282.17 | 0.6183 | 673.0 | 570.4 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 12.51 | 251.40 | 37.66 | 285.56 | 0.6214 | 680.0 | 522.5 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 10.76 | 250.34 | 36.60 | 282.99 | 0.6033 | 636.0 | 586.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 15.92 | 250.16 | 36.42 | 291.38 | 0.6154 | 656.0 | 500.8 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 16.08 | 250.04 | 36.30 | 291.69 | 0.6144 | 606.0 | 572.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 18.64 | 249.05 | 35.30 | 296.15 | 0.6122 | 334.0 | 383.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 13.71 | 247.47 | 33.73 | 288.85 | 0.5722 | 651.0 | 506.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
