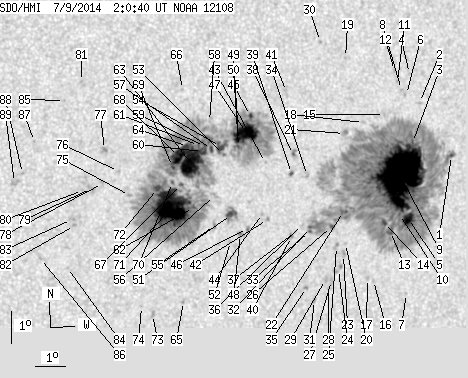

SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 448.21 | 2088.04 | 253.03 | 1181.11 | -6.89 | 240.55 | 26.81 | 248.11 | 0.4833 | 26.5 | 98.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.27 | 1118.16 | 0.75 | 649.09 | -6.30 | 245.49 | 31.75 | 252.55 | 0.5503 | -324.7 | 424.8 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -4.62 | 244.25 | 30.51 | 254.94 | 0.5260 | 759.0 | 610.0 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -5.85 | 244.06 | 30.32 | 252.60 | 0.5284 | 781.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -3.72 | 243.86 | 30.11 | 256.45 | 0.5170 | -504.0 | -370.6 | |
| 9.45 | -1.00 | 5.55 | -1.00 | -8.21 | 244.09 | 30.35 | 248.41 | 0.5399 | 970.9 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -4.36 | 243.77 | 30.03 | 255.20 | 0.5182 | 409.0 | 488.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -10.56 | 244.24 | 30.50 | 244.52 | 0.5548 | -580.0 | -415.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -4.20 | 243.59 | 29.85 | 255.41 | 0.5150 | 575.0 | 465.7 | |
| 197.62 | -1.00 | 115.11 | -1.00 | -6.86 | 243.70 | 29.96 | 250.56 | 0.5278 | 1254.7 | 999999 | |
| 0.27 | -1.00 | 0.16 | -1.00 | -8.07 | 243.76 | 30.02 | 248.44 | 0.5346 | 764.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -3.95 | 243.44 | 29.70 | 255.81 | 0.5118 | 765.0 | 550.2 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -3.61 | 243.32 | 29.58 | 256.41 | 0.5089 | -527.0 | -352.4 | |
| 4.00 | -1.00 | 2.34 | -1.00 | -8.59 | 243.48 | 29.74 | 247.34 | 0.5336 | 787.5 | 999999 | |
| 2.54 | -1.00 | 1.48 | -1.00 | -8.30 | 243.24 | 29.50 | 247.69 | 0.5288 | 964.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -4.95 | 243.03 | 29.28 | 253.70 | 0.5097 | 257.0 | 233.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -10.11 | 243.02 | 29.27 | 244.38 | 0.5359 | 632.0 | 447.5 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -10.04 | 242.80 | 29.05 | 244.34 | 0.5326 | 564.0 | 380.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -5.17 | 242.30 | 28.56 | 252.87 | 0.5002 | 325.0 | 263.8 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -3.15 | 241.60 | 27.86 | 256.49 | 0.4818 | 814.0 | 707.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -8.91 | 241.92 | 28.18 | 245.65 | 0.5141 | 733.0 | 515.9 | |
| 0.00 | 3.81 | 0.00 | 2.17 | -5.49 | 241.66 | 27.91 | 251.87 | 0.4923 | 484.0 | 134.0 | |
| 2.82 | -1.00 | 1.62 | -1.00 | -7.91 | 241.77 | 28.03 | 247.37 | 0.5063 | 1146.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.78 | -9.25 | 241.88 | 28.14 | 245.01 | 0.5155 | 894.0 | 721.5 | |
| 0.00 | 4.36 | 0.00 | 2.52 | -9.72 | 241.74 | 28.00 | 244.08 | 0.5166 | 336.0 | 688.0 | |
| 0.00 | 3.27 | 0.00 | 1.88 | -9.00 | 241.61 | 27.87 | 245.27 | 0.5103 | 833.0 | 679.6 | |
| 1.09 | -1.00 | 0.62 | -1.00 | -8.36 | 241.39 | 27.64 | 246.25 | 0.5035 | 936.8 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.89 | -10.06 | 241.53 | 27.79 | 243.31 | 0.5158 | 898.0 | 638.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -10.30 | 241.45 | 27.71 | 242.81 | 0.5163 | 744.0 | 640.1 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -10.02 | 241.31 | 27.57 | 243.20 | 0.5127 | 668.0 | 536.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -2.63 | 240.73 | 26.98 | 257.13 | 0.4668 | 759.0 | 640.1 | |
| 0.00 | 2.18 | 0.00 | 1.26 | -10.67 | 240.99 | 27.25 | 241.79 | 0.5126 | 958.0 | 696.2 | |
| 1.09 | -1.00 | 0.62 | -1.00 | -8.37 | 240.66 | 26.92 | 245.67 | 0.4935 | -592.2 | 999999 | |
| 0.73 | -1.00 | 0.41 | -1.00 | -8.50 | 240.63 | 26.89 | 245.41 | 0.4939 | -568.4 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -6.75 | 240.45 | 26.71 | 248.60 | 0.4813 | 878.0 | 720.8 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -10.25 | 240.67 | 26.93 | 242.25 | 0.5056 | 952.0 | 726.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -8.27 | 240.37 | 26.63 | 245.63 | 0.4889 | -325.0 | -222.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -8.48 | 240.15 | 26.41 | 245.05 | 0.4871 | 672.0 | 573.4 | |
| 0.64 | 3.81 | 0.36 | 2.14 | -6.09 | 239.93 | 26.19 | 249.54 | 0.4703 | -620.3 | -440.6 | |
| 0.82 | 1.73 | 0.46 | 0.97 | -6.67 | 239.89 | 26.15 | 248.35 | 0.4729 | -599.7 | -420.6 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -8.63 | 240.02 | 26.28 | 244.66 | 0.4863 | 819.0 | 737.1 | |
| 0.00 | 5.36 | 0.00 | 2.98 | -4.13 | 239.61 | 25.87 | 253.35 | 0.4560 | 865.0 | 630.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -8.08 | 239.16 | 25.42 | 244.99 | 0.4708 | -618.0 | -473.0 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -6.30 | 238.99 | 25.25 | 248.39 | 0.4578 | -556.0 | -464.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.89 | 238.98 | 25.24 | 245.21 | 0.4671 | -633.0 | -509.4 | |
| 1.73 | 842.80 | 0.95 | 461.17 | -4.84 | 238.41 | 24.67 | 251.04 | 0.4416 | 752.4 | -360.8 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -8.34 | 238.50 | 24.75 | 243.89 | 0.4633 | -631.0 | -505.5 | |
| 30.61 | -45.00 | 16.89 | -45.00 | -5.36 | 238.30 | 24.56 | 249.84 | 0.4427 | -1010.7 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -8.52 | 238.27 | 24.53 | 243.33 | 0.4613 | -669.0 | -565.6 | |
| 4.63 | -45.00 | 2.55 | -45.00 | -5.60 | 238.04 | 24.30 | 249.12 | 0.4401 | -1140.9 | 999999 | |
| 1.63 | -45.00 | 0.90 | -45.00 | -5.78 | 238.05 | 24.31 | 248.74 | 0.4413 | -820.6 | 999999 | |
| 5.36 | 15.08 | 2.97 | 8.37 | -7.89 | 237.93 | 24.18 | 244.27 | 0.4523 | -807.4 | -545.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -8.73 | 237.95 | 24.21 | 242.62 | 0.4583 | -460.0 | -380.7 | |
| 0.36 | -45.00 | 0.20 | -45.00 | -6.02 | 237.56 | 23.82 | 247.83 | 0.4354 | -789.8 | 999999 | |
| 6.27 | -45.00 | 3.44 | -45.00 | -5.77 | 237.45 | 23.70 | 248.28 | 0.4323 | -934.6 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.56 | -8.21 | 237.37 | 23.63 | 243.09 | 0.4468 | -649.0 | -496.7 | |
| 0.00 | 4.00 | 0.00 | 2.20 | -7.28 | 237.32 | 23.58 | 244.95 | 0.4398 | -575.0 | -398.2 | |
| 1.91 | -45.00 | 1.04 | -45.00 | -5.85 | 237.15 | 23.41 | 247.84 | 0.4285 | -851.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -4.98 | 237.05 | 23.30 | 249.67 | 0.4221 | -476.0 | -336.8 | |
| 2.45 | -45.00 | 1.34 | -45.00 | -5.75 | 236.91 | 23.17 | 247.85 | 0.4244 | -899.5 | 999999 | |
| 4.36 | -45.00 | 2.38 | -45.00 | -5.90 | 236.85 | 23.11 | 247.46 | 0.4244 | -874.5 | 999999 | |
| 1.09 | -45.00 | 0.59 | -45.00 | -5.72 | 236.71 | 22.97 | 247.75 | 0.4212 | -786.7 | 999999 | |
| 1.36 | -45.00 | 0.75 | -45.00 | -7.63 | 236.63 | 22.89 | 243.55 | 0.4324 | -522.8 | 999999 | |
| 40.87 | -45.00 | 22.31 | -45.00 | -6.27 | 236.50 | 22.76 | 246.35 | 0.4215 | -1107.6 | 999999 | |
| 5.45 | -45.00 | 2.97 | -45.00 | -5.74 | 236.34 | 22.60 | 247.38 | 0.4160 | -1088.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -10.57 | 236.49 | 22.75 | 237.54 | 0.4524 | -710.0 | -661.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -3.97 | 236.12 | 22.38 | 251.24 | 0.4028 | -815.0 | -618.9 | |
| 1.00 | -45.00 | 0.55 | -45.00 | -6.91 | 236.20 | 22.46 | 244.66 | 0.4213 | -965.3 | 999999 | |
| 17.89 | -45.00 | 9.73 | -45.00 | -6.04 | 236.06 | 22.32 | 246.44 | 0.4137 | -1367.6 | 999999 | |
| 2.36 | -45.00 | 1.28 | -45.00 | -6.34 | 235.87 | 22.13 | 245.58 | 0.4129 | -1186.1 | 999999 | |
| 0.64 | -45.00 | 0.35 | -45.00 | -6.84 | 235.89 | 22.15 | 244.51 | 0.4165 | -1072.3 | 999999 | |
| 91.82 | -45.00 | 50.13 | -45.00 | -7.64 | 235.87 | 22.13 | 242.75 | 0.4217 | -1216.7 | 999999 | |
| 3.81 | -45.00 | 2.07 | -45.00 | -7.01 | 235.41 | 21.66 | 243.63 | 0.4107 | -1296.8 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.55 | -10.95 | 235.48 | 21.74 | 235.64 | 0.4424 | -719.0 | -608.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -10.69 | 235.10 | 21.36 | 235.66 | 0.4352 | -761.0 | -579.5 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -7.21 | 234.49 | 20.75 | 242.20 | 0.3991 | -858.0 | -638.4 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -6.45 | 234.10 | 20.36 | 243.47 | 0.3880 | -915.0 | -752.2 | |
| 0.00 | 3.00 | 0.00 | 1.60 | -5.76 | 233.61 | 19.87 | 244.56 | 0.3761 | -919.0 | -821.8 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -6.81 | 233.59 | 19.85 | 242.04 | 0.3833 | -861.0 | -544.8 | |
| 0.00 | 3.54 | 0.00 | 1.90 | -6.96 | 233.24 | 19.50 | 241.27 | 0.3794 | -994.0 | -817.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.01 | 232.95 | 19.21 | 240.77 | 0.3757 | -904.0 | -757.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -3.65 | 232.81 | 19.07 | 249.07 | 0.3506 | -715.0 | -585.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -8.10 | 232.74 | 18.99 | 238.01 | 0.3815 | -825.0 | -748.7 | |
| 0.00 | 2.63 | 0.00 | 1.41 | -7.91 | 232.63 | 18.89 | 238.29 | 0.3785 | -689.0 | -694.7 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -9.40 | 232.57 | 18.83 | 234.93 | 0.3908 | -741.0 | -545.4 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -4.22 | 232.27 | 18.53 | 246.96 | 0.3459 | -682.0 | -550.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.10 | 231.68 | 17.94 | 234.27 | 0.3762 | -730.0 | -541.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.46 | 231.34 | 17.60 | 242.52 | 0.3407 | -764.0 | -560.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.44 | 230.99 | 17.24 | 239.49 | 0.3434 | -847.0 | -714.9 | |
| 0.00 | 4.90 | 0.00 | 2.58 | -6.72 | 230.74 | 17.00 | 238.44 | 0.3422 | -738.0 | -694.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
