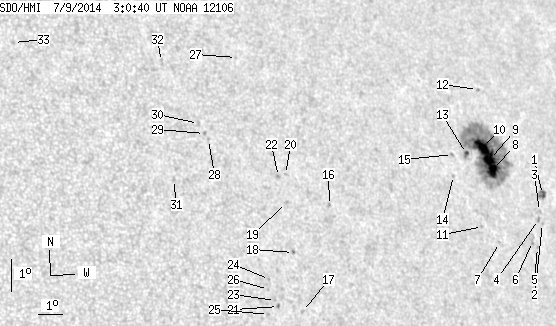

SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.24 | 230.49 | 28.28 | 172.42 | 14.62 | 261.06 | 47.87 | 286.37 | 0.7490 | -316.4 | -227.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.63 | 0.00 | 4.47 | 13.52 | 264.30 | 51.10 | 284.36 | 0.7833 | -752.0 | -635.2 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 12.63 | 264.04 | 50.85 | 283.25 | 0.7796 | -421.0 | -349.3 | |
| 0.00 | 2.27 | 0.00 | 1.79 | 13.01 | 263.99 | 50.80 | 283.74 | 0.7796 | -564.0 | -502.7 | |
| 0.00 | 1.36 | 0.00 | 1.07 | 12.77 | 263.88 | 50.68 | 283.44 | 0.7780 | -693.0 | -622.4 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 11.91 | 263.60 | 50.40 | 282.38 | 0.7741 | -419.0 | -471.6 | |
| 0.00 | 2.45 | 0.00 | 1.90 | 12.11 | 263.40 | 50.21 | 282.65 | 0.7722 | -703.0 | -567.5 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 12.15 | 261.82 | 48.63 | 282.91 | 0.7549 | 420.0 | 329.7 | |
| 10.45 | 186.11 | 7.95 | 141.40 | 14.41 | 262.10 | 48.91 | 285.83 | 0.7610 | -873.2 | -295.5 | |
| 11.26 | -8.00 | 8.57 | -8.00 | 14.73 | 262.06 | 48.86 | 286.25 | 0.7610 | -858.1 | 999999 | |
| 14.17 | -8.00 | 10.74 | -8.00 | 15.11 | 261.84 | 48.65 | 286.79 | 0.7592 | -889.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.88 | 12.68 | 261.15 | 47.96 | 283.70 | 0.7481 | -631.0 | -531.8 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 16.92 | 262.20 | 49.00 | 289.07 | 0.7663 | 493.0 | 404.4 | |
| 1.36 | -8.00 | 1.02 | -8.00 | 14.96 | 261.03 | 47.84 | 286.75 | 0.7501 | -815.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.93 | 14.31 | 260.23 | 47.04 | 286.03 | 0.7401 | -605.0 | -517.3 | |
| 0.00 | 1.54 | 0.00 | 1.14 | 14.96 | 260.37 | 47.18 | 286.88 | 0.7428 | -664.0 | -522.2 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 13.63 | 254.61 | 41.42 | 286.29 | 0.6721 | 642.0 | 492.9 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 10.43 | 252.90 | 39.71 | 281.81 | 0.6442 | 681.0 | 485.6 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 12.25 | 252.85 | 39.65 | 284.63 | 0.6468 | 677.0 | 606.2 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 13.80 | 252.86 | 39.67 | 286.99 | 0.6505 | 654.0 | 464.5 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 14.67 | 253.01 | 39.81 | 288.26 | 0.6545 | 555.0 | 498.6 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 10.62 | 251.97 | 38.78 | 282.29 | 0.6323 | 747.0 | 660.4 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 14.62 | 252.71 | 39.52 | 288.27 | 0.6507 | 681.0 | 548.7 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 10.81 | 251.88 | 38.69 | 282.60 | 0.6314 | 696.0 | 537.2 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 11.46 | 251.74 | 38.55 | 283.66 | 0.6308 | 673.0 | 469.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 10.39 | 251.54 | 38.35 | 282.01 | 0.6261 | 690.0 | 594.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 11.16 | 251.65 | 38.46 | 283.20 | 0.6291 | 643.0 | 468.8 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 18.39 | 251.90 | 38.71 | 294.20 | 0.6529 | 561.0 | 506.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | 15.88 | 250.16 | 36.97 | 291.09 | 0.6221 | 615.0 | 480.8 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 16.07 | 250.04 | 36.85 | 291.43 | 0.6213 | 648.0 | 542.5 | |
| 0.00 | 2.27 | 0.00 | 1.43 | 16.39 | 249.87 | 36.68 | 292.00 | 0.6203 | 348.0 | 283.5 | |
| 0.00 | 2.00 | 0.00 | 1.23 | 14.69 | 248.54 | 35.35 | 289.82 | 0.5971 | 448.0 | 381.8 | |
| 0.00 | 2.09 | 0.00 | 1.31 | 18.38 | 248.87 | 35.67 | 295.55 | 0.6156 | 494.0 | 541.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 19.18 | 243.35 | 30.16 | 300.07 | 0.5504 | 643.0 | 426.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
