SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 10.97 | 0.32 | 7.99 | -14.33 | 256.97 | 43.78 | 246.37 | 0.7337 | 240.1 | 203.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

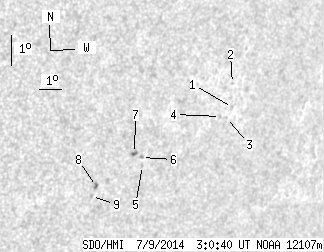

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.42 | -12.92 | 260.61 | 47.42 | 249.67 | 0.7677 | 410.0 | 412.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -12.15 | 260.43 | 47.24 | 250.57 | 0.7633 | 446.0 | 402.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -13.22 | 260.41 | 47.22 | 249.21 | 0.7665 | 395.0 | 372.0 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -13.18 | 260.12 | 46.93 | 249.16 | 0.7633 | 390.0 | 333.1 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -14.59 | 256.98 | 43.78 | 246.10 | 0.7347 | 452.0 | 385.8 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -14.33 | 256.87 | 43.68 | 246.39 | 0.7325 | 739.0 | 541.8 | |
| 0.00 | 2.63 | 0.00 | 1.90 | -14.18 | 256.53 | 43.34 | 246.43 | 0.7282 | 805.0 | 660.8 | |
| 0.45 | 2.45 | 0.32 | 1.74 | -15.17 | 255.13 | 41.94 | 244.49 | 0.7170 | -636.8 | -511.0 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -15.49 | 255.00 | 41.81 | 244.01 | 0.7170 | -559.0 | -415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
