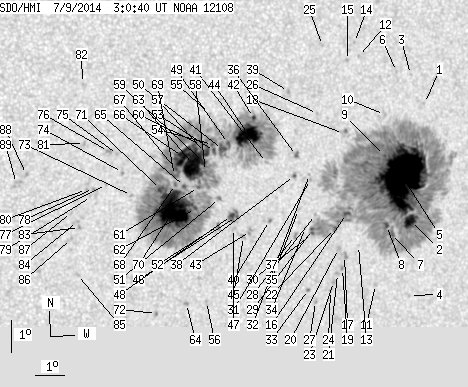

SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 426.96 | 2104.76 | 241.98 | 1196.30 | -6.88 | 240.52 | 27.33 | 248.51 | 0.4905 | -15.7 | 102.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.37 | -4.61 | 244.37 | 31.18 | 255.28 | 0.5357 | 705.0 | 497.1 | |
| 13.62 | 1119.01 | 8.06 | 653.46 | -8.25 | 244.11 | 30.92 | 248.69 | 0.5480 | 923.1 | 430.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -3.70 | 243.83 | 30.64 | 256.71 | 0.5247 | -501.0 | -370.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.57 | 244.31 | 31.12 | 244.92 | 0.5630 | -656.0 | -462.8 | |
| 176.12 | -2.00 | 103.20 | -2.00 | -6.84 | 243.72 | 30.53 | 250.92 | 0.5357 | 1282.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -3.59 | 243.33 | 30.14 | 256.69 | 0.5170 | -377.0 | -260.2 | |
| 2.45 | -2.00 | 1.44 | -2.00 | -8.60 | 243.46 | 30.27 | 247.67 | 0.5409 | 821.9 | 999999 | |
| 2.45 | -2.00 | 1.44 | -2.00 | -8.35 | 243.26 | 30.07 | 247.98 | 0.5369 | 1034.0 | 999999 | |
| 1.00 | -2.00 | 0.58 | -2.00 | -6.17 | 243.03 | 29.84 | 251.74 | 0.5230 | 1330.1 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.73 | -4.90 | 242.96 | 29.77 | 254.05 | 0.5166 | 212.0 | 201.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -10.18 | 243.04 | 29.85 | 244.67 | 0.5441 | 611.0 | 464.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -3.08 | 241.98 | 28.79 | 257.06 | 0.4954 | 561.0 | 381.0 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -8.94 | 242.32 | 29.13 | 246.30 | 0.5272 | 698.0 | 539.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -2.65 | 241.83 | 28.64 | 257.85 | 0.4917 | 696.0 | 587.5 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -3.19 | 241.60 | 28.41 | 256.66 | 0.4902 | 820.0 | 689.6 | |
| 2.63 | -2.00 | 1.52 | -2.00 | -7.92 | 241.81 | 28.62 | 247.75 | 0.5146 | 1090.6 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.21 | -9.23 | 241.85 | 28.66 | 245.43 | 0.5226 | 826.0 | 761.1 | |
| 0.00 | 4.18 | 0.00 | 2.38 | -5.44 | 241.55 | 28.36 | 252.24 | 0.4986 | 366.0 | 145.7 | |
| 0.00 | 1.73 | 0.00 | 1.00 | -9.64 | 241.82 | 28.63 | 244.69 | 0.5245 | 852.0 | 720.1 | |
| 0.00 | 2.72 | 0.00 | 1.58 | -9.01 | 241.62 | 28.43 | 245.66 | 0.5181 | 902.0 | 777.0 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -9.79 | 241.65 | 28.46 | 244.30 | 0.5232 | 752.0 | 698.1 | |
| 1.27 | -2.00 | 0.73 | -2.00 | -8.38 | 241.43 | 28.24 | 246.65 | 0.5118 | 933.0 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.48 | -10.04 | 241.54 | 28.35 | 243.78 | 0.5232 | 768.0 | 663.4 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -10.32 | 241.46 | 28.27 | 243.23 | 0.5239 | 767.0 | 615.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -2.70 | 240.73 | 27.53 | 257.23 | 0.4754 | 672.0 | 528.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -4.79 | 240.62 | 27.43 | 252.94 | 0.4821 | 712.0 | 561.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -10.65 | 240.96 | 27.77 | 242.25 | 0.5194 | 782.0 | 780.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -7.92 | 240.73 | 27.54 | 246.98 | 0.4996 | -76.0 | -55.2 | |
| 1.27 | -2.00 | 0.73 | -2.00 | -8.38 | 240.66 | 27.47 | 246.07 | 0.5013 | -624.8 | 999999 | |
| 0.82 | -2.00 | 0.47 | -2.00 | -8.51 | 240.67 | 27.48 | 245.84 | 0.5021 | -457.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.83 | 240.49 | 27.29 | 248.87 | 0.4901 | 806.0 | 687.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -6.67 | 240.44 | 27.25 | 249.14 | 0.4886 | 951.0 | 836.2 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -10.26 | 240.68 | 27.49 | 242.69 | 0.5132 | 849.0 | 738.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -8.31 | 240.41 | 27.22 | 246.00 | 0.4974 | -541.0 | -475.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -7.75 | 240.13 | 26.94 | 246.85 | 0.4902 | 403.0 | 431.6 | |
| 0.91 | 3.54 | 0.51 | 2.00 | -6.07 | 239.96 | 26.77 | 249.98 | 0.4786 | -718.7 | -416.1 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -8.55 | 240.08 | 26.89 | 245.30 | 0.4943 | 965.0 | 749.7 | |
| 0.64 | 1.73 | 0.36 | 0.97 | -6.68 | 239.93 | 26.73 | 248.74 | 0.4813 | -591.1 | -367.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -4.08 | 239.60 | 26.41 | 253.77 | 0.4639 | 943.0 | 804.2 | |
| 0.36 | 1.73 | 0.20 | 0.97 | -8.06 | 239.15 | 25.96 | 245.48 | 0.4783 | -565.0 | -462.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -6.25 | 238.94 | 25.75 | 248.88 | 0.4649 | -637.0 | -425.8 | |
| 1.45 | 876.77 | 0.81 | 481.86 | -4.85 | 238.44 | 25.25 | 251.41 | 0.4502 | 714.2 | -351.1 | |
| 0.00 | 3.81 | 0.00 | 2.14 | -8.38 | 238.53 | 25.33 | 244.32 | 0.4716 | -475.0 | -426.0 | |
| 35.15 | -42.00 | 19.49 | -42.00 | -5.37 | 238.29 | 25.10 | 250.21 | 0.4507 | -1021.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -8.53 | 238.30 | 25.11 | 243.83 | 0.4694 | -779.0 | -620.9 | |
| 1.27 | 9.45 | 0.71 | 5.26 | -7.90 | 238.02 | 24.83 | 244.81 | 0.4614 | -617.9 | -650.7 | |
| 0.00 | 2.27 | 0.00 | 1.27 | -8.27 | 237.94 | 24.75 | 244.01 | 0.4628 | -664.0 | -471.1 | |
| 2.63 | -46.00 | 1.47 | -46.00 | -7.86 | 237.85 | 24.65 | 244.73 | 0.4588 | -916.6 | 999999 | |
| 1.63 | -42.00 | 0.90 | -42.00 | -5.63 | 237.63 | 24.43 | 249.16 | 0.4423 | -886.4 | 999999 | |
| 5.45 | -42.00 | 3.00 | -42.00 | -5.81 | 237.43 | 24.24 | 248.62 | 0.4405 | -941.7 | 999999 | |
| 0.45 | 2.82 | 0.25 | 1.56 | -7.32 | 237.41 | 24.22 | 245.43 | 0.4492 | -707.2 | -490.9 | |
| 0.91 | 3.18 | 0.50 | 1.77 | -8.16 | 237.42 | 24.23 | 243.75 | 0.4549 | -635.8 | -438.3 | |
| 1.91 | -42.00 | 1.05 | -42.00 | -5.86 | 237.17 | 23.97 | 248.29 | 0.4369 | -861.0 | 999999 | |
| 0.91 | -42.00 | 0.50 | -42.00 | -5.64 | 237.09 | 23.90 | 248.69 | 0.4345 | -813.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -4.68 | 236.95 | 23.76 | 250.68 | 0.4273 | -331.0 | -226.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -10.53 | 237.19 | 24.00 | 238.95 | 0.4687 | -722.0 | -552.8 | |
| 6.90 | -42.00 | 3.79 | -42.00 | -5.88 | 236.86 | 23.67 | 247.98 | 0.4326 | -880.9 | 999999 | |
| 0.27 | -42.00 | 0.15 | -42.00 | -6.47 | 236.89 | 23.70 | 246.75 | 0.4365 | -600.7 | 999999 | |
| 3.00 | -42.00 | 1.65 | -42.00 | -6.19 | 236.81 | 23.62 | 247.28 | 0.4336 | -807.5 | 999999 | |
| 2.63 | -42.00 | 1.44 | -42.00 | -5.66 | 236.72 | 23.53 | 248.34 | 0.4292 | -878.3 | 999999 | |
| 0.82 | -42.00 | 0.45 | -42.00 | -6.96 | 236.68 | 23.49 | 245.52 | 0.4365 | -655.4 | 999999 | |
| 1.09 | -42.00 | 0.60 | -42.00 | -7.61 | 236.62 | 23.43 | 244.11 | 0.4398 | -592.4 | 999999 | |
| 40.87 | -42.00 | 22.40 | -42.00 | -6.24 | 236.48 | 23.29 | 246.87 | 0.4291 | -1118.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -10.58 | 236.52 | 23.33 | 238.15 | 0.4601 | -815.0 | -675.1 | |
| 1.36 | -42.00 | 0.75 | -42.00 | -6.92 | 236.21 | 23.02 | 245.18 | 0.4295 | -957.7 | 999999 | |
| 19.89 | -42.00 | 10.86 | -42.00 | -5.99 | 236.10 | 22.91 | 247.09 | 0.4221 | -1345.4 | 999999 | |
| 2.00 | -42.00 | 1.09 | -42.00 | -6.35 | 235.88 | 22.69 | 246.09 | 0.4212 | -1247.0 | 999999 | |
| 0.73 | -42.00 | 0.40 | -42.00 | -6.85 | 235.91 | 22.72 | 245.04 | 0.4247 | -1123.9 | 999999 | |
| 0.91 | -42.00 | 0.50 | -42.00 | -6.57 | 235.86 | 22.67 | 245.60 | 0.4222 | -1107.9 | 999999 | |
| 87.83 | -42.00 | 48.15 | -42.00 | -7.65 | 235.88 | 22.69 | 243.30 | 0.4298 | -1234.7 | 999999 | |
| 3.36 | -42.00 | 1.83 | -42.00 | -6.99 | 235.42 | 22.22 | 244.24 | 0.4186 | -1284.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -10.86 | 235.53 | 22.34 | 236.49 | 0.4495 | -788.0 | -653.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -7.15 | 234.46 | 21.27 | 242.89 | 0.4061 | -873.0 | -666.9 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -6.43 | 234.14 | 20.94 | 244.15 | 0.3964 | -814.0 | -677.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.87 | 233.95 | 20.76 | 245.26 | 0.3898 | -832.0 | -654.4 | |
| 0.00 | 2.27 | 0.00 | 1.22 | -5.77 | 233.65 | 20.46 | 245.17 | 0.3848 | -926.0 | -857.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -6.79 | 233.63 | 20.43 | 242.77 | 0.3916 | -822.0 | -675.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.90 | 233.21 | 20.01 | 242.01 | 0.3864 | -866.0 | -768.1 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -7.15 | 233.15 | 19.96 | 241.38 | 0.3875 | -534.0 | -586.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.93 | 232.98 | 19.79 | 241.68 | 0.3833 | -925.0 | -812.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.50 | 232.86 | 19.67 | 244.94 | 0.3714 | -899.0 | -793.8 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -3.65 | 232.74 | 19.55 | 249.53 | 0.3580 | -702.0 | -497.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.10 | 232.80 | 19.61 | 238.79 | 0.3902 | -944.0 | -757.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.92 | 232.73 | 19.54 | 239.12 | 0.3876 | -966.0 | -811.9 | |
| 0.00 | 1.91 | 0.00 | 1.03 | -9.57 | 232.82 | 19.63 | 235.66 | 0.4028 | -808.0 | -589.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.44 | 232.56 | 19.37 | 237.73 | 0.3896 | -812.0 | -586.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.63 | 232.52 | 19.33 | 239.49 | 0.3824 | -671.0 | -577.4 | |
| 0.00 | 1.91 | 0.00 | 1.01 | -6.42 | 231.01 | 17.82 | 240.36 | 0.3514 | -826.0 | -716.1 | |
| 0.00 | 5.18 | 0.00 | 2.74 | -6.69 | 230.70 | 17.51 | 239.24 | 0.3492 | -686.0 | -569.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
