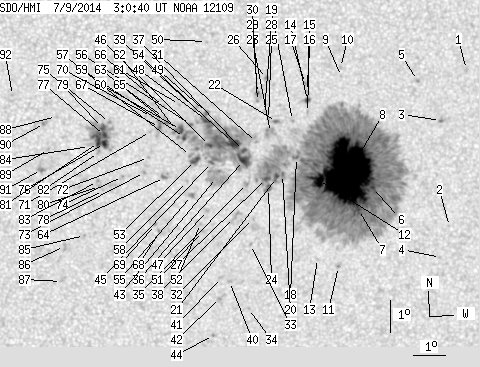

SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 294.64 | 1622.99 | 150.45 | 828.63 | -7.75 | 220.73 | 7.53 | 212.53 | 0.2404 | 730.6 | 270.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.07 | -4.78 | 225.61 | 12.41 | 235.67 | 0.2606 | 820.0 | 603.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -9.64 | 225.20 | 12.01 | 221.75 | 0.3094 | 460.0 | 280.5 | |
| 0.36 | 2.54 | 0.19 | 1.31 | -6.34 | 224.82 | 11.63 | 229.12 | 0.2662 | 1013.8 | 798.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.61 | 224.95 | 11.76 | 219.12 | 0.3189 | 583.0 | 448.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.09 | 224.08 | 10.89 | 231.04 | 0.2431 | -914.0 | -734.4 | |
| 1.54 | 1198.94 | 0.79 | 613.84 | -8.39 | 222.74 | 9.55 | 218.15 | 0.2670 | 955.5 | 460.0 | |
| 0.27 | -6.00 | 0.14 | -6.00 | -9.07 | 222.32 | 9.13 | 215.37 | 0.2719 | 934.7 | 999999 | |
| 215.72 | -6.00 | 110.43 | -6.00 | -7.91 | 221.98 | 8.79 | 216.99 | 0.2528 | 1678.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.94 | 221.72 | 8.53 | 224.57 | 0.2115 | -688.0 | -483.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.66 | 221.69 | 8.49 | 225.40 | 0.2077 | -898.0 | -634.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.85 | 221.74 | 8.55 | 210.19 | 0.2917 | -772.0 | -608.5 | |
| 14.17 | -6.00 | 7.24 | -6.00 | -8.15 | 221.06 | 7.86 | 213.42 | 0.2470 | 1396.0 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -10.59 | 221.08 | 7.89 | 208.66 | 0.2824 | 468.0 | 421.0 | |
| 1.73 | 5.00 | 0.87 | 2.53 | -5.67 | 220.68 | 7.49 | 218.55 | 0.2090 | 1043.1 | 589.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.39 | 220.67 | 7.48 | 219.39 | 0.2052 | 711.0 | 563.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.04 | 220.68 | 7.49 | 217.48 | 0.2140 | 620.0 | 434.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.14 | 220.61 | 7.42 | 219.93 | 0.2013 | 1047.0 | 786.6 | |
| 0.82 | -6.00 | 0.42 | -6.00 | -7.43 | 220.36 | 7.17 | 212.67 | 0.2303 | 1034.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.28 | 220.22 | 7.03 | 215.06 | 0.2127 | 667.0 | 530.5 | |
| 0.64 | -6.00 | 0.32 | -6.00 | -7.96 | 219.94 | 6.74 | 209.93 | 0.2342 | 1105.7 | 999999 | |
| 2.63 | -6.00 | 1.34 | -6.00 | -8.05 | 219.75 | 6.56 | 209.05 | 0.2340 | 1317.5 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.70 | -6.31 | 219.73 | 6.54 | 213.06 | 0.2084 | 673.0 | 457.9 | |
| 0.00 | 9.63 | 0.00 | 4.88 | -6.65 | 219.55 | 6.36 | 211.46 | 0.2116 | 136.0 | 190.2 | |
| 2.27 | -6.00 | 1.16 | -6.00 | -8.39 | 219.51 | 6.32 | 207.46 | 0.2371 | 1080.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.25 | 219.48 | 6.29 | 212.22 | 0.2051 | -479.0 | -331.7 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -4.98 | 219.44 | 6.25 | 215.68 | 0.1867 | -213.0 | -278.8 | |
| 2.27 | -6.00 | 1.16 | -6.00 | -8.08 | 219.44 | 6.25 | 207.83 | 0.2319 | 1254.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.00 | 219.35 | 6.16 | 212.36 | 0.2004 | -601.0 | -405.2 | |
| 0.64 | 3.36 | 0.32 | 1.70 | -5.44 | 219.13 | 5.94 | 212.96 | 0.1903 | -962.6 | -393.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.69 | 219.14 | 5.94 | 212.27 | 0.1939 | -850.0 | -675.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.95 | 219.12 | 5.93 | 208.99 | 0.2124 | 872.0 | 667.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.32 | 219.06 | 5.87 | 204.10 | 0.2481 | -706.0 | -585.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.14 | 218.98 | 5.79 | 202.53 | 0.2602 | -783.0 | -550.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.15 | 218.95 | 5.76 | 199.75 | 0.2917 | -619.0 | -499.0 | |
| 0.00 | 2.72 | 0.00 | 1.39 | -8.23 | 218.83 | 5.63 | 205.16 | 0.2295 | 973.0 | 796.2 | |
| 8.72 | 213.54 | 4.43 | 108.05 | -7.51 | 218.72 | 5.53 | 206.16 | 0.2177 | 1096.1 | -19.6 | |
| 2.00 | -36.00 | 1.01 | -36.00 | -7.20 | 218.72 | 5.53 | 206.80 | 0.2130 | 1126.3 | 999999 | |
| 0.00 | 6.45 | 0.00 | 3.29 | -9.29 | 218.47 | 5.28 | 201.98 | 0.2436 | -755.0 | -650.8 | |
| 10.81 | -36.00 | 5.47 | -36.00 | -6.95 | 218.38 | 5.19 | 205.88 | 0.2065 | 1123.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -11.29 | 218.34 | 5.15 | 198.78 | 0.2747 | -818.0 | -656.8 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -11.17 | 218.09 | 4.90 | 198.07 | 0.2713 | -842.0 | -602.9 | |
| 0.00 | 4.18 | 0.00 | 2.16 | -11.80 | 218.07 | 4.88 | 197.29 | 0.2813 | -829.0 | -668.1 | |
| 0.00 | 30.25 | 0.00 | 15.36 | -8.03 | 217.90 | 4.70 | 201.75 | 0.2202 | -115.0 | -160.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -13.00 | 217.87 | 4.68 | 195.45 | 0.2997 | -911.0 | -720.2 | |
| 0.82 | -36.00 | 0.41 | -36.00 | -7.57 | 217.74 | 4.55 | 201.88 | 0.2117 | -803.7 | 999999 | |
| 2.36 | -36.00 | 1.19 | -36.00 | -7.04 | 217.67 | 4.48 | 202.56 | 0.2029 | -609.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.97 | -9.06 | 217.63 | 4.44 | 199.06 | 0.2350 | -853.0 | -664.5 | |
| 3.63 | -36.00 | 1.83 | -36.00 | -6.26 | 217.57 | 4.38 | 203.66 | 0.1900 | -797.8 | 999999 | |
| 0.73 | -36.00 | 0.37 | -36.00 | -6.01 | 217.57 | 4.38 | 204.19 | 0.1861 | -971.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -3.83 | 217.56 | 4.37 | 210.06 | 0.1523 | -749.0 | -597.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.72 | 217.48 | 4.29 | 197.61 | 0.2448 | -785.0 | -698.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.47 | 217.42 | 4.22 | 197.67 | 0.2404 | -711.0 | -507.7 | |
| 3.81 | 6.54 | 1.93 | 3.31 | -7.50 | 217.24 | 4.05 | 199.80 | 0.2077 | -894.5 | -690.4 | |
| 0.00 | 3.18 | 0.00 | 1.60 | -5.89 | 217.23 | 4.04 | 202.78 | 0.1818 | -819.0 | -727.7 | |
| 0.00 | 2.54 | 0.00 | 1.29 | -8.59 | 217.13 | 3.94 | 197.67 | 0.2247 | -871.0 | -735.5 | |
| 0.45 | 1.63 | 0.23 | 0.82 | -6.38 | 217.08 | 3.89 | 201.02 | 0.1887 | -1040.4 | -904.8 | |
| 0.00 | 2.09 | 0.00 | 1.06 | -7.34 | 217.09 | 3.90 | 199.35 | 0.2043 | -1046.0 | -863.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.15 | 217.00 | 3.81 | 197.73 | 0.2169 | -746.0 | -537.2 | |
| 1.82 | -36.00 | 0.92 | -36.00 | -6.78 | 216.90 | 3.71 | 199.40 | 0.1941 | -1026.1 | 999999 | |
| 3.27 | -36.00 | 1.65 | -36.00 | -6.54 | 216.77 | 3.58 | 199.23 | 0.1894 | -1215.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.76 | 216.74 | 3.55 | 200.49 | 0.1767 | -816.0 | -649.1 | |
| 0.45 | -36.00 | 0.23 | -36.00 | -6.57 | 216.65 | 3.46 | 198.56 | 0.1892 | -1144.8 | 999999 | |
| 0.36 | 9.90 | 0.18 | 4.99 | -6.32 | 216.34 | 3.15 | 197.41 | 0.1835 | -1005.8 | -860.4 | |
| 0.00 | 3.09 | 0.00 | 1.56 | -8.02 | 216.29 | 3.10 | 194.74 | 0.2114 | -980.0 | -857.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -6.16 | 216.25 | 3.06 | 197.18 | 0.1805 | -924.0 | -723.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.82 | 216.25 | 3.06 | 197.75 | 0.1749 | -996.0 | -767.9 | |
| 0.91 | -63.00 | 0.46 | -63.00 | -6.47 | 216.13 | 2.94 | 196.05 | 0.1850 | -1185.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -9.71 | 216.15 | 2.96 | 192.35 | 0.2388 | -814.0 | -675.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -9.49 | 216.02 | 2.83 | 192.04 | 0.2347 | -916.0 | -776.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -6.13 | 215.88 | 2.69 | 195.26 | 0.1782 | -948.0 | -764.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.59 | 215.85 | 2.66 | 194.45 | 0.1858 | -915.0 | -725.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -7.40 | 215.80 | 2.60 | 193.15 | 0.1990 | -878.0 | -758.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.87 | 215.67 | 2.48 | 192.06 | 0.2063 | -987.0 | -783.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.99 | 215.00 | 1.81 | 188.74 | 0.2063 | -950.0 | -754.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -6.31 | 214.59 | 1.40 | 187.95 | 0.1768 | -1116.0 | -844.2 | |
| 3.18 | 42.42 | 1.60 | 21.37 | -6.96 | 214.44 | 1.25 | 186.66 | 0.1875 | -1188.1 | -772.8 | |
| 2.36 | -76.00 | 1.19 | -76.00 | -6.71 | 214.44 | 1.25 | 186.82 | 0.1833 | -1374.9 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | -8.42 | 214.41 | 1.22 | 185.73 | 0.2124 | -739.0 | -593.1 | |
| 2.27 | -76.00 | 1.14 | -76.00 | -6.46 | 214.38 | 1.19 | 186.65 | 0.1789 | -1220.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.30 | 214.29 | 1.10 | 185.21 | 0.2101 | -842.0 | -778.7 | |
| 3.63 | -76.00 | 1.83 | -76.00 | -6.93 | 214.26 | 1.07 | 185.71 | 0.1867 | -1176.8 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.24 | 214.26 | 1.07 | 185.55 | 0.1920 | -814.0 | -562.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.14 | 214.23 | 1.04 | 184.98 | 0.2073 | -1080.0 | -841.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.05 | 213.98 | 0.79 | 184.19 | 0.1884 | -147.0 | -207.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.83 | 213.83 | 0.64 | 182.68 | 0.2357 | -926.0 | -764.0 | |
| 0.00 | 3.00 | 0.00 | 1.53 | -10.17 | 213.21 | 0.02 | 180.08 | 0.2413 | -901.0 | -740.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.27 | 213.12 | -0.08 | 179.71 | 0.2600 | -736.0 | -657.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -6.12 | 212.97 | -0.22 | 178.71 | 0.1719 | -873.0 | -636.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.14 | 212.72 | -0.47 | 177.54 | 0.1896 | -1008.0 | -742.6 | |
| 0.00 | 2.63 | 0.00 | 1.33 | -6.34 | 212.60 | -0.59 | 176.65 | 0.1758 | -963.0 | -806.9 | |
| 0.00 | 4.45 | 0.00 | 2.25 | -7.76 | 212.51 | -0.69 | 176.59 | 0.2005 | -969.0 | -809.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -5.47 | 211.62 | -1.57 | 170.33 | 0.1629 | -829.0 | -578.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
