SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.60 | 0.00 | 14.65 | -17.82 | 230.09 | 16.90 | 215.60 | 0.4970 | 40.1 | 107.7 | |
|
previous
or next observation for the same group /

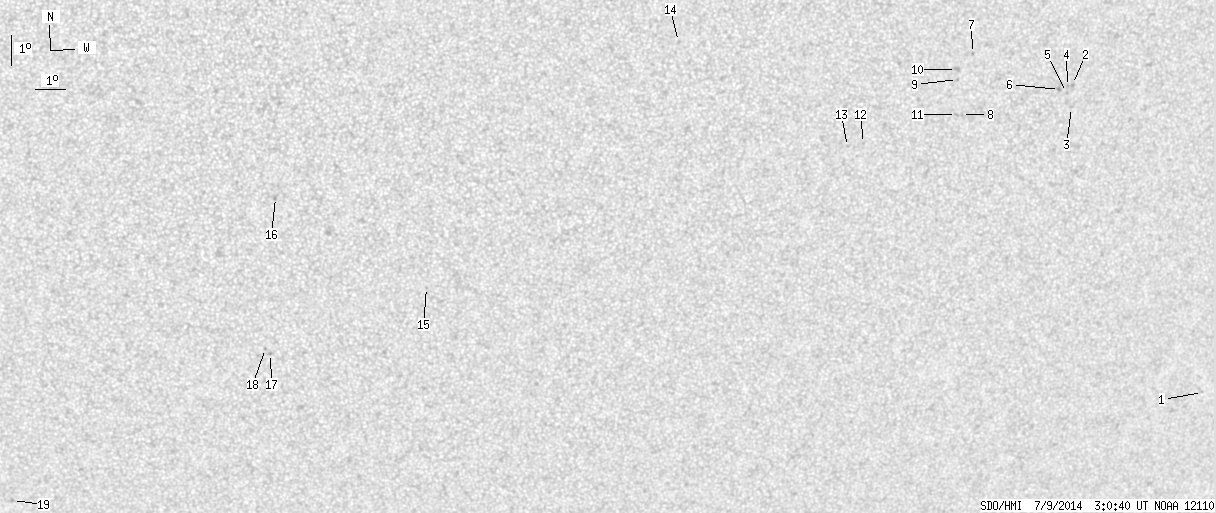

back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.25 | -25.85 | 247.56 | 34.36 | 226.42 | 0.7035 | -598.0 | -515.8 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -15.30 | 240.24 | 27.05 | 233.97 | 0.5446 | 737.0 | 622.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -16.04 | 240.32 | 27.12 | 232.90 | 0.5514 | 503.0 | 364.3 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -15.36 | 240.08 | 26.88 | 233.71 | 0.5430 | 743.0 | 702.6 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -15.55 | 240.07 | 26.88 | 233.41 | 0.5445 | 581.0 | 582.4 | |
| 0.00 | 2.09 | 0.00 | 1.23 | -15.44 | 239.80 | 26.61 | 233.31 | 0.5406 | 788.0 | 711.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -14.19 | 236.62 | 23.43 | 231.88 | 0.4919 | 719.0 | 649.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -16.15 | 236.47 | 23.28 | 228.57 | 0.5082 | 824.0 | 679.6 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -15.02 | 236.20 | 23.00 | 230.04 | 0.4944 | 648.0 | 569.3 | |
| 0.00 | 3.54 | 0.00 | 2.01 | -14.69 | 236.13 | 22.93 | 230.48 | 0.4906 | 733.0 | 522.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -16.15 | 236.30 | 23.10 | 228.37 | 0.5062 | 691.0 | 613.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -17.01 | 233.21 | 20.02 | 223.06 | 0.4814 | -553.0 | -383.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.09 | 232.68 | 19.49 | 222.18 | 0.4768 | -734.0 | -576.9 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.59 | 226.82 | 13.63 | 217.74 | 0.3757 | -451.0 | -470.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.54 | 219.04 | 5.85 | 192.53 | 0.4388 | -768.0 | -596.1 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -18.52 | 214.07 | 0.88 | 182.20 | 0.3804 | -760.0 | -689.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -23.76 | 213.93 | 0.74 | 181.46 | 0.4636 | -840.0 | -700.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.59 | 213.76 | 0.57 | 181.14 | 0.4609 | -823.0 | -671.8 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -28.98 | 204.93 | -8.26 | 166.90 | 0.5563 | -679.0 | -534.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
