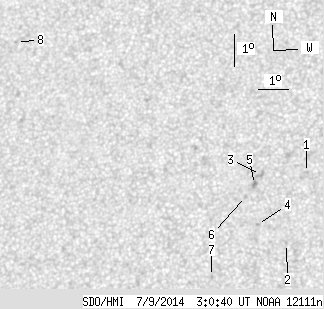

SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.97 | 0.00 | 8.41 | 17.91 | 199.53 | -13.66 | 42.06 | 0.3352 | -606.2 | -582.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.19 | 201.98 | -11.21 | 36.35 | 0.3129 | -731.0 | -600.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.96 | 201.47 | -11.72 | 42.51 | 0.2904 | -128.0 | -89.7 | |
| 0.00 | 4.45 | 0.00 | 2.33 | 18.11 | 200.48 | -12.71 | 39.93 | 0.3273 | -1006.0 | -783.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.54 | 200.49 | -12.70 | 43.35 | 0.3084 | -840.0 | -675.7 | |
| 0.00 | 3.72 | 0.00 | 1.95 | 17.79 | 200.31 | -12.89 | 40.97 | 0.3253 | -1123.0 | -909.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.41 | 200.04 | -13.15 | 42.35 | 0.3237 | -891.0 | -704.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.90 | 199.10 | -14.09 | 50.25 | 0.3073 | -848.0 | -600.8 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 22.16 | 191.72 | -21.47 | 46.62 | 0.4683 | 717.0 | 472.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
