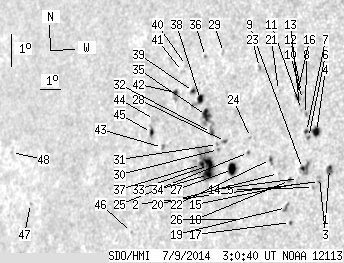

SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.59 | 170.49 | 36.89 | 127.03 | 9.31 | 164.96 | -48.23 | 80.82 | 0.7472 | -207.2 | -112.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 5.90 | 1.06 | 4.04 | 8.82 | 169.61 | -43.58 | 81.12 | 0.6918 | -891.6 | -727.3 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 8.40 | 169.24 | -43.95 | 81.75 | 0.6961 | -770.0 | -686.4 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 8.52 | 169.22 | -43.97 | 81.58 | 0.6964 | -792.0 | -626.3 | |
| 4.90 | 6.99 | 3.40 | 4.85 | 9.92 | 168.87 | -44.32 | 79.61 | 0.7020 | -884.9 | -632.6 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 8.21 | 169.01 | -44.18 | 82.05 | 0.6988 | -594.0 | -500.7 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 9.72 | 168.56 | -44.63 | 79.93 | 0.7056 | -749.0 | -533.1 | |
| 0.73 | 2.09 | 0.51 | 1.46 | 9.90 | 168.44 | -44.75 | 79.69 | 0.7072 | -547.0 | -436.8 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 10.42 | 168.31 | -44.89 | 78.98 | 0.7094 | -768.0 | -646.4 | |
| 1.54 | 7.18 | 1.08 | 4.99 | 8.77 | 168.45 | -44.74 | 81.30 | 0.7061 | -759.6 | -718.1 | |
| 0.00 | 1.54 | 0.00 | 1.09 | 10.87 | 168.09 | -45.10 | 78.37 | 0.7125 | -580.0 | -482.7 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 10.57 | 168.10 | -45.09 | 78.80 | 0.7120 | -421.0 | -354.8 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 11.09 | 168.00 | -45.19 | 78.08 | 0.7138 | -697.0 | -573.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 10.69 | 167.99 | -45.20 | 78.65 | 0.7135 | -512.0 | -436.7 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 8.45 | 168.32 | -44.87 | 81.75 | 0.7074 | -692.0 | -601.3 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 8.30 | 168.30 | -44.89 | 81.97 | 0.7076 | -588.0 | -548.5 | |
| 0.82 | 3.00 | 0.58 | 2.12 | 10.95 | 167.81 | -45.38 | 78.29 | 0.7160 | -592.3 | -560.5 | |
| 0.36 | 1.45 | 0.25 | 1.02 | 7.10 | 168.16 | -45.04 | 83.68 | 0.7087 | 498.5 | 484.8 | |
| 0.64 | 2.00 | 0.45 | 1.41 | 8.38 | 167.94 | -45.25 | 81.89 | 0.7120 | -500.3 | -387.9 | |
| 0.00 | 3.54 | 0.00 | 2.49 | 7.55 | 167.92 | -45.27 | 83.06 | 0.7117 | -247.0 | -407.3 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 8.57 | 167.43 | -45.77 | 81.66 | 0.7184 | -648.0 | -439.0 | |
| 0.00 | 0.54 | 0.00 | 0.39 | 11.10 | 166.97 | -46.22 | 78.20 | 0.7261 | 502.0 | 483.5 | |
| 0.64 | 3.00 | 0.45 | 2.14 | 8.98 | 167.00 | -46.19 | 81.13 | 0.7237 | -641.6 | -528.4 | |
| 0.00 | 1.91 | 0.00 | 1.40 | 11.77 | 165.96 | -47.23 | 77.43 | 0.7386 | -708.0 | -574.4 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 9.61 | 165.99 | -47.20 | 80.35 | 0.7361 | -397.0 | -326.8 | |
| 0.00 | 1.18 | 0.00 | 0.86 | 9.15 | 165.98 | -47.21 | 80.98 | 0.7359 | 578.0 | 547.1 | |
| 0.00 | 0.82 | 0.00 | 0.59 | 7.09 | 166.07 | -47.12 | 83.77 | 0.7338 | 606.0 | 432.9 | |
| 7.81 | 9.99 | 5.76 | 7.37 | 8.59 | 165.34 | -47.85 | 81.77 | 0.7430 | -689.8 | -367.7 | |
| 0.82 | 2.27 | 0.61 | 1.69 | 9.43 | 164.87 | -48.32 | 80.68 | 0.7489 | 684.0 | 549.2 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 12.15 | 164.19 | -49.01 | 77.15 | 0.7591 | 397.0 | 399.0 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 9.17 | 164.59 | -48.60 | 81.05 | 0.7520 | 651.0 | 513.8 | |
| 0.00 | 1.18 | 0.00 | 0.89 | 9.32 | 164.51 | -48.68 | 80.85 | 0.7529 | 581.0 | 478.5 | |
| 1.36 | 16.35 | 1.03 | 12.41 | 9.68 | 164.16 | -49.03 | 80.41 | 0.7571 | 789.1 | 648.7 | |
| 7.54 | 50.86 | 5.68 | 38.51 | 8.66 | 164.21 | -48.98 | 81.75 | 0.7560 | -945.1 | -213.4 | |
| 4.18 | -33.00 | 3.15 | -33.00 | 8.39 | 164.25 | -48.94 | 82.11 | 0.7553 | -883.8 | 999999 | |
| 5.99 | -32.00 | 4.56 | -32.00 | 10.18 | 163.82 | -49.37 | 79.77 | 0.7613 | 822.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 11.99 | 163.36 | -49.83 | 77.46 | 0.7680 | 618.0 | 521.1 | |
| 2.00 | -33.00 | 1.52 | -33.00 | 8.68 | 163.87 | -49.32 | 81.75 | 0.7598 | -533.5 | 999999 | |
| 3.63 | 8.45 | 2.79 | 6.50 | 10.66 | 163.43 | -49.76 | 79.18 | 0.7660 | 628.3 | 235.9 | |
| 1.36 | 2.63 | 1.05 | 2.04 | 10.89 | 163.04 | -50.15 | 78.92 | 0.7705 | 528.0 | 398.6 | |
| 0.00 | 1.09 | 0.00 | 0.85 | 11.67 | 162.51 | -50.68 | 77.97 | 0.7769 | 316.0 | 229.1 | |
| 0.00 | 1.82 | 0.00 | 1.43 | 11.47 | 162.36 | -50.83 | 78.23 | 0.7783 | 513.0 | 417.5 | |
| 1.82 | 5.54 | 1.43 | 4.36 | 10.81 | 162.17 | -51.02 | 79.10 | 0.7798 | 562.3 | 381.1 | |
| 0.00 | 2.18 | 0.00 | 1.72 | 9.11 | 161.90 | -51.29 | 81.31 | 0.7817 | 773.0 | 557.5 | |
| 0.00 | 2.91 | 0.00 | 2.33 | 9.94 | 161.32 | -51.87 | 80.28 | 0.7883 | -422.0 | -295.0 | |
| 1.91 | 4.63 | 1.53 | 3.72 | 9.54 | 161.26 | -51.93 | 80.80 | 0.7887 | 374.9 | 254.8 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 6.44 | 160.81 | -52.38 | 84.74 | 0.7927 | -471.0 | -377.2 | |
| 0.00 | 1.00 | 0.00 | 0.93 | 7.04 | 155.24 | -57.95 | 84.02 | 0.8479 | 440.0 | 325.0 | |
| 0.00 | 0.82 | 0.00 | 0.79 | 8.53 | 153.77 | -59.42 | 82.29 | 0.8612 | 503.0 | 392.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
