SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 417.84 | 2106.28 | 238.72 | 1203.86 | -6.89 | 240.61 | 27.97 | 248.95 | 0.4997 | 70.8 | 84.3 | |
|
previous
or next observation for the same group /

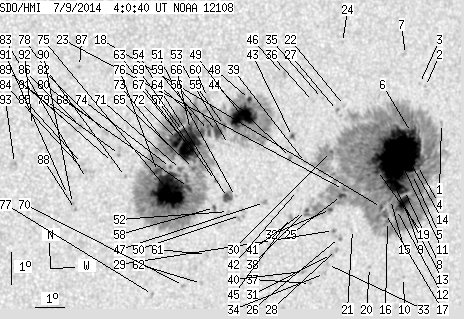

back to the solar disc SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.03 | -5.83 | 245.27 | 32.63 | 253.80 | 0.5607 | 553.0 | 433.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -4.66 | 244.62 | 31.98 | 255.54 | 0.5472 | -265.0 | -121.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -4.56 | 244.40 | 31.76 | 255.62 | 0.5437 | 443.0 | 382.8 | |
| 1.54 | 1135.56 | 0.92 | 666.93 | -7.10 | 244.49 | 31.84 | 251.20 | 0.5552 | 355.8 | 415.4 | |
| 2.54 | -4.00 | 1.51 | -4.00 | -7.37 | 244.33 | 31.69 | 250.64 | 0.5542 | 87.7 | 999999 | |
| 6.72 | -4.00 | 3.97 | -4.00 | -6.07 | 244.20 | 31.56 | 252.85 | 0.5467 | 899.9 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -3.65 | 243.86 | 31.22 | 257.03 | 0.5328 | -465.0 | -375.7 | |
| 3.72 | -4.00 | 2.21 | -4.00 | -7.86 | 244.08 | 31.44 | 249.66 | 0.5531 | 737.7 | 999999 | |
| 10.99 | -4.00 | 6.53 | -4.00 | -8.23 | 244.07 | 31.43 | 249.02 | 0.5549 | 945.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.59 | 244.31 | 31.67 | 245.26 | 0.5704 | -476.0 | -363.2 | |
| 147.43 | -4.00 | 86.91 | -4.00 | -6.80 | 243.78 | 31.14 | 251.34 | 0.5440 | 1351.7 | 999999 | |
| 0.27 | -4.00 | 0.16 | -4.00 | -8.44 | 243.84 | 31.20 | 248.52 | 0.5527 | 802.3 | 999999 | |
| 18.26 | -4.00 | 10.79 | -4.00 | -7.69 | 243.70 | 31.06 | 249.73 | 0.5472 | 1140.7 | 999999 | |
| 7.27 | -4.00 | 4.27 | -4.00 | -6.08 | 243.59 | 30.95 | 252.51 | 0.5382 | 1152.9 | 999999 | |
| 0.27 | -4.00 | 0.16 | -4.00 | -8.12 | 243.60 | 30.95 | 248.92 | 0.5478 | 724.0 | 999999 | |
| 0.91 | -4.00 | 0.54 | -4.00 | -8.81 | 243.55 | 30.91 | 247.72 | 0.5506 | 661.8 | 999999 | |
| 3.27 | -4.00 | 1.93 | -4.00 | -8.55 | 243.45 | 30.81 | 248.09 | 0.5480 | 781.3 | 999999 | |
| 1.18 | -4.00 | 0.70 | -4.00 | -8.36 | 243.29 | 30.65 | 248.32 | 0.5449 | 1041.4 | 999999 | |
| 4.27 | -4.00 | 2.50 | -4.00 | -7.20 | 243.06 | 30.41 | 250.20 | 0.5359 | 1325.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -10.23 | 243.04 | 30.40 | 244.98 | 0.5517 | 587.0 | 468.2 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -9.01 | 242.31 | 29.67 | 246.54 | 0.5351 | 630.0 | 474.3 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -5.15 | 241.76 | 29.12 | 253.21 | 0.5083 | -183.0 | -195.6 | |
| 0.91 | -4.00 | 0.53 | -4.00 | -7.75 | 241.89 | 29.25 | 248.48 | 0.5225 | 945.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -3.21 | 241.62 | 28.97 | 256.89 | 0.4986 | 779.0 | 663.2 | |
| 2.73 | -4.00 | 1.58 | -4.00 | -7.94 | 241.84 | 29.19 | 248.11 | 0.5226 | 1011.8 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.70 | -9.25 | 241.87 | 29.23 | 245.82 | 0.5304 | 908.0 | 802.6 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -5.30 | 241.53 | 28.88 | 252.80 | 0.5055 | -204.0 | -215.7 | |
| 0.00 | 1.91 | 0.00 | 1.11 | -9.62 | 241.80 | 29.16 | 245.11 | 0.5316 | 871.0 | 774.4 | |
| 0.36 | 1.82 | 0.21 | 1.06 | -9.02 | 241.64 | 29.00 | 246.04 | 0.5260 | 960.8 | 793.3 | |
| 0.91 | -4.00 | 0.52 | -4.00 | -6.56 | 241.39 | 28.74 | 250.34 | 0.5093 | 952.4 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.64 | -9.77 | 241.64 | 29.00 | 244.73 | 0.5303 | 801.0 | 715.6 | |
| 1.18 | -4.00 | 0.68 | -4.00 | -8.36 | 241.48 | 28.84 | 247.10 | 0.5200 | 923.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -10.08 | 241.53 | 28.88 | 244.11 | 0.5307 | 913.0 | 729.7 | |
| 0.00 | 1.73 | 0.00 | 1.01 | -10.36 | 241.45 | 28.81 | 243.57 | 0.5314 | 717.0 | 588.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.91 | 240.98 | 28.34 | 253.24 | 0.4959 | 664.0 | 501.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.99 | 240.68 | 28.03 | 252.90 | 0.4918 | 767.0 | 626.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -10.66 | 240.98 | 28.34 | 242.69 | 0.5271 | 942.0 | 762.8 | |
| 0.91 | -4.00 | 0.52 | -4.00 | -8.37 | 240.64 | 28.00 | 246.49 | 0.5085 | -710.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.71 | -6.87 | 240.50 | 27.86 | 249.17 | 0.4983 | 723.0 | 557.2 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -10.27 | 240.70 | 28.06 | 243.13 | 0.5209 | 836.0 | 728.7 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -8.39 | 240.54 | 27.89 | 246.36 | 0.5072 | -291.0 | -292.7 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -7.73 | 240.28 | 27.64 | 247.39 | 0.4999 | 725.0 | 612.0 | |
| 1.18 | 2.73 | 0.67 | 1.54 | -6.05 | 240.00 | 27.36 | 250.41 | 0.4870 | -611.9 | -484.7 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -6.70 | 239.97 | 27.33 | 249.13 | 0.4899 | -615.0 | -375.2 | |
| 0.00 | 2.73 | 0.00 | 1.56 | -8.57 | 240.10 | 27.45 | 245.71 | 0.5022 | 894.0 | 786.6 | |
| 0.00 | 2.45 | 0.00 | 1.38 | -4.13 | 239.64 | 27.00 | 254.02 | 0.4729 | 912.0 | 817.1 | |
| 0.00 | 3.09 | 0.00 | 1.75 | -8.07 | 239.16 | 26.52 | 245.90 | 0.4862 | -641.0 | -456.3 | |
| 2.18 | 863.32 | 1.21 | 476.58 | -4.86 | 238.47 | 25.83 | 251.78 | 0.4589 | 695.4 | -368.0 | |
| 30.34 | -48.00 | 16.90 | -48.00 | -5.38 | 238.25 | 25.61 | 250.55 | 0.4583 | -1088.6 | 999999 | |
| 0.00 | 6.63 | 0.00 | 3.73 | -8.45 | 238.36 | 25.72 | 244.51 | 0.4775 | -162.0 | -494.6 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -7.85 | 238.15 | 25.51 | 245.49 | 0.4708 | -232.0 | -272.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -8.31 | 237.94 | 25.30 | 244.41 | 0.4708 | -595.0 | -453.4 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -6.23 | 237.82 | 25.18 | 248.47 | 0.4565 | -119.0 | -174.9 | |
| 4.91 | 9.17 | 2.75 | 5.14 | -7.88 | 237.88 | 25.24 | 245.21 | 0.4671 | -839.9 | -625.0 | |
| 1.36 | -48.00 | 0.76 | -48.00 | -5.64 | 237.66 | 25.01 | 249.57 | 0.4509 | -872.7 | 999999 | |
| 7.90 | -48.00 | 4.38 | -48.00 | -5.82 | 237.43 | 24.78 | 249.02 | 0.4485 | -898.7 | 999999 | |
| 0.36 | 1.36 | 0.20 | 0.76 | -7.33 | 237.44 | 24.80 | 245.91 | 0.4575 | -617.0 | -479.6 | |
| 0.73 | 2.73 | 0.41 | 1.52 | -8.17 | 237.46 | 24.81 | 244.25 | 0.4631 | -704.6 | -549.3 | |
| 3.36 | -48.00 | 1.86 | -48.00 | -5.78 | 237.12 | 24.48 | 248.86 | 0.4438 | -837.5 | 999999 | |
| 0.00 | 4.36 | 0.00 | 2.40 | -4.76 | 237.05 | 24.40 | 250.99 | 0.4373 | -112.0 | -206.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -9.64 | 237.29 | 24.65 | 241.27 | 0.4708 | -755.0 | -606.1 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -10.54 | 237.19 | 24.55 | 239.48 | 0.4761 | -681.0 | -518.0 | |
| 0.27 | -48.00 | 0.15 | -48.00 | -6.57 | 236.76 | 24.11 | 246.89 | 0.4431 | -742.7 | 999999 | |
| 3.09 | -48.00 | 1.70 | -48.00 | -5.43 | 236.70 | 24.06 | 249.28 | 0.4357 | -761.2 | 999999 | |
| 1.09 | -48.00 | 0.60 | -48.00 | -6.94 | 236.67 | 24.03 | 246.05 | 0.4442 | -568.8 | 999999 | |
| 3.00 | -48.00 | 1.65 | -48.00 | -5.73 | 236.51 | 23.87 | 248.47 | 0.4347 | -1040.9 | 999999 | |
| 36.33 | -48.00 | 20.00 | -48.00 | -6.22 | 236.47 | 23.83 | 247.38 | 0.4369 | -1154.1 | 999999 | |
| 3.54 | -48.00 | 1.96 | -48.00 | -7.53 | 236.54 | 23.90 | 244.71 | 0.4460 | -701.7 | 999999 | |
| 3.27 | -48.00 | 1.79 | -48.00 | -5.78 | 236.28 | 23.64 | 248.16 | 0.4316 | -1108.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.59 | 236.58 | 23.94 | 238.77 | 0.4684 | -798.0 | -662.9 | |
| 1.18 | -48.00 | 0.65 | -48.00 | -6.96 | 236.24 | 23.60 | 245.61 | 0.4381 | -955.5 | 999999 | |
| 12.81 | -48.00 | 7.02 | -48.00 | -6.03 | 236.09 | 23.45 | 247.47 | 0.4302 | -1452.4 | 999999 | |
| 2.36 | -48.00 | 1.29 | -48.00 | -6.33 | 235.91 | 23.26 | 246.65 | 0.4293 | -1286.8 | 999999 | |
| 0.64 | -48.00 | 0.35 | -48.00 | -6.89 | 235.90 | 23.26 | 245.45 | 0.4327 | -1115.3 | 999999 | |
| 77.12 | -48.00 | 42.45 | -48.00 | -7.63 | 235.91 | 23.26 | 243.89 | 0.4377 | -1265.2 | 999999 | |
| 5.18 | -48.00 | 2.83 | -48.00 | -7.00 | 235.47 | 22.83 | 244.80 | 0.4273 | -1226.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -10.84 | 235.56 | 22.91 | 237.18 | 0.4569 | -795.0 | -639.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.13 | 234.41 | 21.77 | 243.46 | 0.4131 | -852.0 | -733.5 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -6.44 | 234.18 | 21.54 | 244.75 | 0.4051 | -922.0 | -754.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.85 | 233.96 | 21.32 | 245.87 | 0.3980 | -843.0 | -617.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -6.68 | 233.96 | 21.32 | 243.97 | 0.4036 | -736.0 | -570.4 | |
| 0.00 | 3.00 | 0.00 | 1.61 | -5.75 | 233.70 | 21.05 | 245.83 | 0.3934 | -942.0 | -785.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -7.16 | 233.13 | 20.49 | 241.98 | 0.3951 | -754.0 | -612.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.91 | 233.05 | 20.41 | 242.46 | 0.3921 | -995.0 | -853.4 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -6.69 | 232.98 | 20.34 | 242.87 | 0.3895 | -729.0 | -617.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -5.54 | 232.87 | 20.23 | 245.45 | 0.3799 | -964.0 | -786.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -3.69 | 232.78 | 20.14 | 249.97 | 0.3673 | -852.0 | -712.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -8.11 | 232.82 | 20.17 | 239.47 | 0.3980 | -850.0 | -747.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.63 | 232.71 | 20.07 | 245.06 | 0.3782 | -878.0 | -717.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -7.92 | 232.71 | 20.07 | 239.76 | 0.3950 | -939.0 | -810.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.64 | 232.53 | 19.89 | 240.17 | 0.3903 | -767.0 | -574.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.47 | 231.31 | 18.66 | 243.82 | 0.3565 | -541.0 | -462.7 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -6.64 | 230.77 | 18.12 | 240.22 | 0.3575 | -947.0 | -686.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
