SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.18 | 0.00 | 9.80 | -22.14 | 198.63 | -14.02 | 152.83 | 0.4956 | 230.6 | 87.6 | |
|
previous
or next observation for the same group /

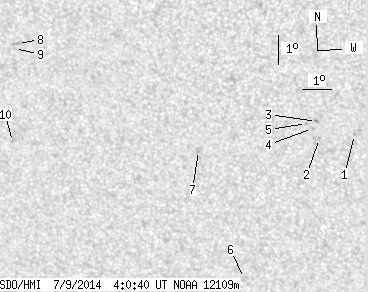

back to the solar disc SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.45 | -22.02 | 204.37 | -8.27 | 162.91 | 0.4557 | 715.0 | 613.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.16 | 203.20 | -9.45 | 160.77 | 0.4635 | 749.0 | 556.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.59 | 203.13 | -9.51 | 160.21 | 0.4555 | 1039.0 | 829.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.83 | 202.99 | -9.66 | 160.11 | 0.4597 | 815.0 | 622.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.66 | 202.80 | -9.85 | 159.62 | 0.4583 | 793.0 | 659.1 | |
| 0.00 | 2.73 | 0.00 | 1.61 | -27.05 | 200.19 | -12.45 | 159.38 | 0.5475 | -751.0 | -589.7 | |
| 0.00 | 3.00 | 0.00 | 1.71 | -22.62 | 199.08 | -13.56 | 153.92 | 0.4943 | 793.0 | 687.1 | |
| 0.00 | 3.91 | 0.00 | 2.23 | -19.14 | 193.32 | -19.33 | 140.93 | 0.4981 | -347.0 | -368.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -19.31 | 193.19 | -19.45 | 140.98 | 0.5012 | -716.0 | -593.2 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.44 | 192.69 | -19.95 | 144.20 | 0.5413 | -784.0 | -657.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
