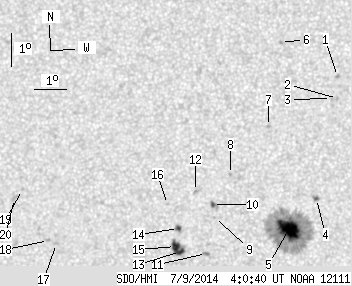

SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.79 | 204.19 | 20.98 | 102.43 | 6.32 | 204.19 | -8.46 | 72.18 | 0.1548 | -533.1 | -347.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.09 | 10.85 | 206.38 | -6.26 | 40.77 | 0.1648 | -980.0 | -726.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.17 | 206.39 | -6.25 | 43.60 | 0.1561 | -961.0 | -723.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 10.17 | 206.21 | -6.44 | 44.44 | 0.1583 | -718.0 | -584.9 | |
| 0.82 | 3.36 | 0.41 | 1.68 | 7.11 | 205.79 | -6.85 | 63.37 | 0.1330 | -1164.9 | -825.7 | |
| 28.25 | 155.42 | 14.14 | 77.76 | 6.16 | 204.94 | -7.70 | 72.16 | 0.1407 | -1394.6 | -424.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 11.88 | 204.57 | -8.07 | 43.99 | 0.1987 | -887.0 | -665.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.30 | 204.26 | -8.38 | 55.82 | 0.1747 | -886.0 | -720.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.82 | 203.11 | -9.53 | 66.26 | 0.1801 | -848.0 | -676.7 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 6.50 | 202.64 | -10.01 | 74.06 | 0.1804 | -657.0 | -530.1 | |
| 1.27 | 5.18 | 0.64 | 2.61 | 6.90 | 202.57 | -10.08 | 72.06 | 0.1834 | -1011.0 | -746.3 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 5.40 | 202.41 | -10.24 | 80.32 | 0.1803 | -1004.0 | -772.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 7.29 | 202.03 | -10.62 | 70.93 | 0.1942 | -816.0 | -623.1 | |
| 3.36 | 14.62 | 1.70 | 7.39 | 5.46 | 201.60 | -11.05 | 80.69 | 0.1942 | 1184.8 | 690.8 | |
| 1.82 | 3.72 | 0.92 | 1.88 | 6.16 | 201.52 | -11.12 | 77.22 | 0.1975 | 1036.3 | 767.0 | |
| 6.27 | -13.00 | 3.17 | -13.00 | 5.61 | 201.44 | -11.21 | 80.05 | 0.1972 | 1153.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.88 | 201.16 | -11.48 | 74.11 | 0.2064 | 689.0 | 486.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.65 | 197.69 | -14.95 | 82.10 | 0.2603 | 857.0 | 773.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 5.73 | 197.44 | -15.20 | 81.89 | 0.2648 | 862.0 | 645.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 7.28 | 196.56 | -16.08 | 76.82 | 0.2834 | 810.0 | 633.0 | |
| 0.00 | 3.45 | 0.00 | 1.78 | 7.00 | 196.32 | -16.33 | 77.95 | 0.2866 | 743.0 | 658.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
