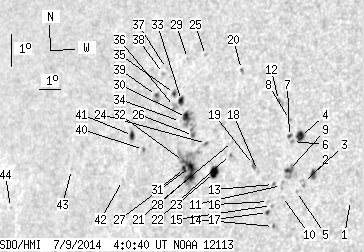

SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.69 | 171.13 | 35.76 | 125.61 | 9.28 | 165.12 | -47.53 | 80.82 | 0.7390 | -253.0 | -100.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.54 | 8.00 | 171.31 | -41.33 | 82.13 | 0.6625 | -649.0 | -526.7 | |
| 2.73 | 4.81 | 1.85 | 3.26 | 8.73 | 169.67 | -42.97 | 81.20 | 0.6841 | -850.3 | -662.2 | |
| 0.00 | 3.27 | 0.00 | 2.23 | 8.46 | 169.28 | -43.36 | 81.62 | 0.6887 | -741.0 | -615.0 | |
| 4.81 | 6.99 | 3.30 | 4.80 | 9.86 | 168.94 | -43.70 | 79.63 | 0.6943 | -916.3 | -654.6 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 8.18 | 169.02 | -43.62 | 82.06 | 0.6918 | -586.0 | -448.7 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 9.69 | 168.62 | -44.02 | 79.91 | 0.6980 | -644.0 | -582.2 | |
| 0.91 | 2.09 | 0.63 | 1.44 | 9.84 | 168.47 | -44.17 | 79.72 | 0.7001 | -511.1 | -385.7 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 10.36 | 168.38 | -44.26 | 78.99 | 0.7017 | -715.0 | -622.1 | |
| 2.27 | 10.36 | 1.57 | 7.13 | 8.80 | 168.59 | -44.05 | 81.19 | 0.6976 | -849.2 | -621.2 | |
| 0.00 | 0.55 | 0.00 | 0.38 | 8.00 | 168.45 | -44.20 | 82.36 | 0.6988 | -602.0 | -426.3 | |
| 0.00 | 2.54 | 0.00 | 1.76 | 8.33 | 168.36 | -44.29 | 81.89 | 0.7001 | -606.0 | -552.9 | |
| 0.36 | 3.09 | 0.25 | 2.16 | 10.92 | 167.80 | -44.85 | 78.27 | 0.7095 | -519.5 | -511.5 | |
| 0.00 | 1.45 | 0.00 | 1.01 | 8.35 | 168.01 | -44.63 | 81.89 | 0.7044 | -584.0 | -466.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 7.07 | 168.18 | -44.47 | 83.71 | 0.7017 | 633.0 | 503.9 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 7.70 | 168.01 | -44.63 | 82.81 | 0.7040 | -680.0 | -447.3 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 7.82 | 167.86 | -44.78 | 82.65 | 0.7059 | -358.0 | -328.0 | |
| 0.82 | 2.00 | 0.57 | 1.39 | 7.48 | 167.87 | -44.78 | 83.13 | 0.7057 | -520.2 | -393.5 | |
| 0.00 | 2.36 | 0.00 | 1.67 | 8.74 | 167.25 | -45.39 | 81.40 | 0.7140 | -475.0 | -285.1 | |
| 0.00 | 3.82 | 0.00 | 2.70 | 8.92 | 167.05 | -45.60 | 81.17 | 0.7166 | -522.0 | -502.5 | |
| 0.36 | 1.91 | 0.26 | 1.38 | 11.80 | 165.96 | -46.68 | 77.32 | 0.7323 | -540.5 | -503.2 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 9.58 | 165.99 | -46.65 | 80.35 | 0.7296 | -347.0 | -253.9 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 9.18 | 165.97 | -46.67 | 80.90 | 0.7295 | 620.0 | 497.0 | |
| 7.45 | 10.26 | 5.44 | 7.49 | 8.59 | 165.34 | -47.30 | 81.74 | 0.7366 | -709.5 | -369.7 | |
| 0.64 | 1.91 | 0.47 | 1.41 | 9.46 | 164.83 | -47.82 | 80.61 | 0.7431 | 594.3 | 510.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | 12.15 | 164.21 | -48.43 | 77.08 | 0.7527 | 449.0 | 407.8 | |
| 0.82 | 22.16 | 0.61 | 16.65 | 9.68 | 164.18 | -48.46 | 80.37 | 0.7507 | 805.7 | 575.0 | |
| 5.54 | 50.51 | 4.13 | 37.73 | 8.72 | 164.21 | -48.43 | 81.64 | 0.7497 | -970.8 | -233.0 | |
| 6.18 | -27.00 | 4.60 | -27.00 | 8.42 | 164.26 | -48.38 | 82.04 | 0.7489 | -947.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 12.02 | 163.38 | -49.26 | 77.36 | 0.7617 | 641.0 | 511.8 | |
| 4.81 | -26.00 | 3.63 | -26.00 | 10.21 | 163.75 | -48.90 | 79.70 | 0.7560 | 828.9 | 999999 | |
| 1.91 | -27.00 | 1.43 | -27.00 | 8.65 | 163.95 | -48.70 | 81.76 | 0.7527 | -576.8 | 999999 | |
| 0.27 | -27.00 | 0.20 | -27.00 | 8.86 | 163.86 | -48.78 | 81.48 | 0.7538 | -325.7 | 999999 | |
| 3.18 | 4.54 | 2.42 | 3.45 | 10.72 | 163.40 | -49.24 | 79.06 | 0.7603 | 684.4 | 516.2 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 10.08 | 163.49 | -49.15 | 79.90 | 0.7588 | 487.0 | 382.7 | |
| 1.27 | 3.00 | 0.97 | 2.30 | 10.92 | 163.02 | -49.62 | 78.84 | 0.7647 | 557.1 | 429.0 | |
| 0.00 | 4.00 | 0.00 | 3.05 | 10.52 | 163.11 | -49.54 | 79.35 | 0.7634 | 223.0 | 137.5 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 11.66 | 162.46 | -50.19 | 77.93 | 0.7716 | 481.0 | 384.3 | |
| 0.00 | 1.45 | 0.00 | 1.13 | 11.50 | 162.35 | -50.30 | 78.15 | 0.7726 | 518.0 | 392.3 | |
| 1.09 | 5.72 | 0.85 | 4.45 | 10.81 | 162.17 | -50.47 | 79.05 | 0.7739 | 634.9 | 391.6 | |
| 0.45 | 2.00 | 0.35 | 1.56 | 9.14 | 161.89 | -50.75 | 81.24 | 0.7759 | 636.0 | 523.1 | |
| 2.82 | 4.36 | 2.23 | 3.46 | 9.54 | 161.26 | -51.38 | 80.77 | 0.7828 | 428.8 | 168.5 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 8.14 | 161.04 | -51.61 | 82.56 | 0.7847 | -568.0 | -441.2 | |
| 0.00 | 1.00 | 0.00 | 0.84 | 8.34 | 158.38 | -54.27 | 82.40 | 0.8124 | -417.0 | -342.6 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 7.01 | 155.28 | -57.37 | 84.06 | 0.8424 | 454.0 | 360.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
