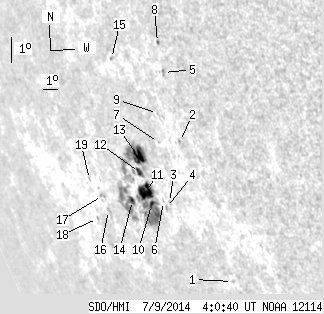

SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.15 | 177.76 | 42.92 | 221.43 | -19.45 | 149.40 | -63.24 | 113.15 | 0.9171 | 448.5 | -18.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 1.10 | -22.55 | 153.59 | -59.05 | 117.57 | 0.8954 | 313.0 | 306.4 | |
| 0.00 | 1.18 | 0.00 | 1.27 | -17.95 | 153.09 | -59.56 | 112.45 | 0.8893 | 554.0 | 489.4 | |
| 0.00 | 1.36 | 0.00 | 1.59 | -20.06 | 151.12 | -61.52 | 114.22 | 0.9071 | 535.0 | 408.3 | |
| 0.00 | 1.45 | 0.00 | 1.72 | -20.25 | 150.79 | -61.86 | 114.34 | 0.9097 | 455.0 | 372.3 | |
| 0.00 | 2.36 | 0.00 | 2.48 | -15.71 | 153.24 | -59.40 | 110.03 | 0.8839 | 641.0 | 568.6 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -20.05 | 150.71 | -61.93 | 114.11 | 0.9098 | 311.0 | 313.7 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -18.07 | 151.65 | -60.99 | 112.21 | 0.8999 | -212.0 | -150.7 | |
| 0.45 | 1.54 | 0.47 | 1.61 | -14.75 | 153.32 | -59.33 | 108.98 | 0.8815 | 201.0 | 158.4 | |
| 0.00 | 0.91 | 0.00 | 1.00 | -17.10 | 152.14 | -60.50 | 111.28 | 0.8946 | 234.0 | 168.9 | |
| 2.82 | 62.68 | 3.45 | 77.42 | -20.21 | 149.75 | -62.89 | 114.04 | 0.9163 | 436.7 | 65.6 | |
| 17.26 | -10.00 | 21.16 | -10.00 | -19.79 | 149.62 | -63.02 | 113.56 | 0.9165 | 590.4 | 999999 | |
| 3.45 | 60.23 | 4.21 | 73.52 | -19.17 | 149.63 | -63.01 | 112.90 | 0.9154 | 568.4 | 104.9 | |
| 8.63 | -12.00 | 10.35 | -12.00 | -18.62 | 149.93 | -62.72 | 112.39 | 0.9126 | 766.1 | 999999 | |
| 2.54 | 35.15 | 3.28 | 46.11 | -20.16 | 148.39 | -64.25 | 113.66 | 0.9248 | 69.5 | -281.4 | |
| 0.00 | 1.73 | 0.00 | 2.02 | -15.45 | 149.94 | -62.70 | 108.99 | 0.9075 | -449.0 | -417.6 | |
| 0.00 | 3.00 | 0.00 | 4.25 | -20.63 | 146.11 | -66.54 | 113.64 | 0.9386 | -361.0 | -316.1 | |
| 0.00 | 2.36 | 0.00 | 3.35 | -20.14 | 146.04 | -66.61 | 113.12 | 0.9384 | -508.0 | -468.7 | |
| 0.00 | 1.18 | 0.00 | 1.78 | -20.97 | 144.86 | -67.78 | 113.74 | 0.9457 | -383.0 | -309.8 | |
| 0.00 | 1.09 | 0.00 | 1.58 | -19.65 | 145.37 | -67.28 | 112.47 | 0.9415 | -446.0 | -391.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
