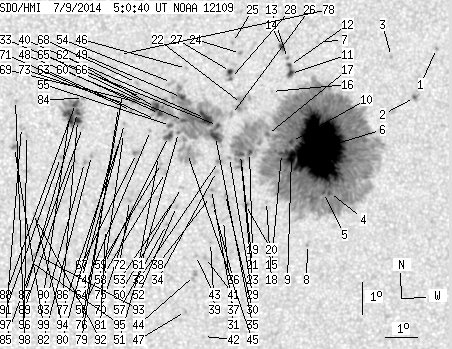

SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 298.44 | 1647.27 | 152.78 | 843.31 | -7.78 | 220.73 | 8.64 | 216.16 | 0.2514 | 680.8 | 277.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -4.87 | 225.55 | 13.46 | 237.46 | 0.2762 | 876.0 | 716.2 | |
| 0.64 | 3.36 | 0.33 | 1.74 | -6.38 | 224.89 | 12.80 | 231.67 | 0.2818 | 1037.0 | 796.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -5.10 | 224.14 | 12.05 | 233.80 | 0.2588 | -894.0 | -729.4 | |
| 1.91 | 1210.87 | 0.99 | 621.88 | -9.29 | 222.30 | 10.20 | 217.92 | 0.2858 | 823.4 | 468.8 | |
| 1.36 | -4.00 | 0.70 | -4.00 | -9.29 | 222.11 | 10.02 | 217.41 | 0.2838 | 842.5 | 999999 | |
| 212.76 | -4.00 | 109.27 | -4.00 | -7.92 | 221.98 | 9.89 | 220.23 | 0.2645 | 1718.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.63 | 221.83 | 9.74 | 229.36 | 0.2231 | -797.0 | -632.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.92 | 221.66 | 9.56 | 212.90 | 0.3016 | -773.0 | -612.2 | |
| 9.08 | -4.00 | 4.66 | -4.00 | -8.15 | 221.08 | 8.99 | 216.99 | 0.2582 | 1480.0 | 999999 | |
| 1.36 | -4.00 | 0.70 | -4.00 | -7.69 | 221.07 | 8.98 | 218.09 | 0.2518 | 1275.3 | 999999 | |
| 2.91 | 7.09 | 1.48 | 3.60 | -5.58 | 221.01 | 8.91 | 223.73 | 0.2240 | 1063.2 | 776.9 | |
| 1.18 | -11.00 | 0.60 | -11.00 | -5.33 | 220.97 | 8.88 | 224.40 | 0.2206 | 1031.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -5.12 | 220.91 | 8.81 | 224.89 | 0.2172 | 1112.0 | 815.7 | |
| 1.91 | 4.00 | 0.97 | 2.03 | -4.74 | 220.72 | 8.62 | 225.51 | 0.2104 | 958.7 | 694.3 | |
| 1.27 | -4.00 | 0.65 | -4.00 | -8.06 | 220.77 | 8.67 | 216.25 | 0.2537 | 1168.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -6.13 | 220.43 | 8.33 | 220.16 | 0.2244 | -397.0 | -321.8 | |
| 0.73 | -4.00 | 0.37 | -4.00 | -7.46 | 220.32 | 8.23 | 216.24 | 0.2411 | 1155.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -9.55 | 220.33 | 8.24 | 211.66 | 0.2705 | 651.0 | 493.8 | |
| 1.82 | -4.00 | 0.93 | -4.00 | -8.02 | 219.77 | 7.68 | 213.08 | 0.2435 | 1352.0 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.87 | -9.64 | 219.68 | 7.59 | 209.42 | 0.2661 | 787.0 | 547.7 | |
| 1.18 | -4.00 | 0.60 | -4.00 | -8.29 | 219.53 | 7.44 | 211.63 | 0.2453 | 1163.8 | 999999 | |
| 0.00 | 16.35 | 0.00 | 8.30 | -6.49 | 219.50 | 7.41 | 215.88 | 0.2195 | 214.0 | 114.8 | |
| 2.00 | -4.00 | 1.02 | -4.00 | -8.08 | 219.50 | 7.40 | 211.99 | 0.2418 | 1299.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -4.95 | 219.45 | 7.36 | 220.30 | 0.1982 | -405.0 | -374.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.61 | 219.20 | 7.11 | 220.46 | 0.1909 | -870.0 | -722.2 | |
| 0.00 | 2.45 | 0.00 | 1.25 | -6.83 | 219.20 | 7.10 | 213.87 | 0.2213 | 615.0 | 399.9 | |
| 2.45 | 7.36 | 1.24 | 3.72 | -5.50 | 219.15 | 7.05 | 217.38 | 0.2023 | -898.9 | -605.7 | |
| 0.64 | -27.00 | 0.32 | -27.00 | -5.72 | 219.15 | 7.06 | 216.74 | 0.2053 | -813.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -8.17 | 219.16 | 7.06 | 210.59 | 0.2401 | 1021.0 | 794.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.32 | 219.05 | 6.96 | 207.93 | 0.2563 | -692.0 | -587.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.13 | 219.01 | 6.91 | 206.33 | 0.2682 | -677.0 | -475.9 | |
| 0.00 | 2.91 | 0.00 | 1.48 | -8.29 | 218.82 | 6.72 | 209.12 | 0.2390 | 1039.0 | 860.7 | |
| 1.73 | 201.86 | 0.88 | 102.30 | -7.17 | 218.77 | 6.67 | 211.42 | 0.2222 | 1117.0 | -20.7 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -8.60 | 218.76 | 6.66 | 208.29 | 0.2432 | 343.0 | 356.7 | |
| 7.27 | -33.00 | 3.70 | -33.00 | -7.51 | 218.71 | 6.62 | 210.42 | 0.2267 | 1136.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.66 | 218.68 | 6.59 | 206.06 | 0.2586 | -774.0 | -681.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.16 | 218.61 | 6.52 | 206.71 | 0.2505 | -861.0 | -682.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.38 | 218.59 | 6.49 | 206.22 | 0.2536 | -706.0 | -629.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -10.82 | 218.61 | 6.52 | 203.96 | 0.2759 | -733.0 | -570.2 | |
| 10.81 | -33.00 | 5.48 | -33.00 | -6.95 | 218.39 | 6.30 | 210.49 | 0.2157 | 1138.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -11.29 | 218.47 | 6.37 | 202.80 | 0.2821 | -746.0 | -534.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.80 | 218.46 | 6.37 | 199.69 | 0.3211 | -558.0 | -415.8 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -11.23 | 218.15 | 6.06 | 201.87 | 0.2791 | -808.0 | -668.7 | |
| 0.00 | 5.09 | 0.00 | 2.63 | -11.86 | 218.14 | 6.04 | 200.98 | 0.2889 | -827.0 | -692.7 | |
| 0.00 | 29.16 | 0.00 | 14.83 | -8.03 | 217.85 | 5.76 | 206.01 | 0.2276 | -81.0 | -229.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.40 | 217.79 | 5.70 | 211.97 | 0.1876 | -739.0 | -592.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.00 | 217.88 | 5.78 | 198.84 | 0.3053 | -843.0 | -645.8 | |
| 1.54 | -33.00 | 0.78 | -33.00 | -7.00 | 217.72 | 5.62 | 207.59 | 0.2109 | -578.6 | 999999 | |
| 3.00 | -33.00 | 1.52 | -33.00 | -6.29 | 217.65 | 5.55 | 208.96 | 0.1996 | -816.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -9.09 | 217.68 | 5.59 | 203.44 | 0.2427 | -932.0 | -663.6 | |
| 0.36 | -33.00 | 0.18 | -33.00 | -7.37 | 217.57 | 5.47 | 206.17 | 0.2154 | -770.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.68 | 217.53 | 5.44 | 201.96 | 0.2510 | -771.0 | -666.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.49 | 217.44 | 5.34 | 201.89 | 0.2475 | -790.0 | -638.4 | |
| 0.00 | 3.27 | 0.00 | 1.65 | -5.82 | 217.34 | 5.24 | 208.72 | 0.1900 | -811.0 | -723.3 | |
| 1.18 | -33.00 | 0.60 | -33.00 | -7.16 | 217.32 | 5.22 | 205.57 | 0.2101 | -878.4 | 999999 | |
| 3.63 | 8.18 | 1.84 | 4.15 | -7.50 | 217.26 | 5.16 | 204.64 | 0.2150 | -919.3 | -790.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.25 | 217.23 | 5.14 | 200.06 | 0.2581 | -883.0 | -713.9 | |
| 0.00 | 2.36 | 0.00 | 1.20 | -8.62 | 217.18 | 5.08 | 202.29 | 0.2320 | -899.0 | -685.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.34 | 217.05 | 4.96 | 202.26 | 0.2267 | -759.0 | -593.9 | |
| 2.73 | -33.00 | 1.38 | -33.00 | -6.78 | 216.97 | 4.88 | 204.86 | 0.2018 | -937.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -8.12 | 216.96 | 4.86 | 202.24 | 0.2227 | -719.0 | -519.8 | |
| 5.27 | -33.00 | 2.66 | -33.00 | -6.59 | 216.85 | 4.75 | 204.69 | 0.1980 | -1196.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.97 | 216.85 | 4.76 | 203.93 | 0.2039 | -687.0 | -573.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.31 | 216.70 | 4.61 | 202.60 | 0.2082 | -916.0 | -704.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.44 | 216.51 | 4.41 | 203.44 | 0.1932 | -946.0 | -848.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.28 | 216.42 | 4.32 | 203.31 | 0.1901 | -830.0 | -771.1 | |
| 0.00 | 4.18 | 0.00 | 2.12 | -8.02 | 216.28 | 4.18 | 199.53 | 0.2170 | -866.0 | -771.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -5.82 | 216.26 | 4.16 | 203.54 | 0.1817 | -925.0 | -695.2 | |
| 0.82 | 5.36 | 0.41 | 2.70 | -6.40 | 216.20 | 4.11 | 202.03 | 0.1906 | -1199.9 | -880.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.74 | 216.17 | 4.08 | 196.74 | 0.2442 | -881.0 | -760.4 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -6.68 | 216.11 | 4.02 | 201.06 | 0.1945 | -980.0 | -741.2 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -9.48 | 216.07 | 3.98 | 196.67 | 0.2397 | -897.0 | -745.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.50 | 215.96 | 3.86 | 200.66 | 0.1906 | -976.0 | -803.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.08 | 215.90 | 3.80 | 199.34 | 0.1997 | -873.0 | -709.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.39 | 215.87 | 3.78 | 198.70 | 0.2046 | -790.0 | -492.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -6.19 | 215.83 | 3.74 | 200.62 | 0.1848 | -1007.0 | -816.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.64 | 215.75 | 3.65 | 197.76 | 0.2080 | -856.0 | -687.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -4.95 | 215.73 | 3.64 | 202.73 | 0.1644 | -810.0 | -558.3 | |
| 0.00 | 2.09 | 0.00 | 1.05 | -6.59 | 215.71 | 3.62 | 199.28 | 0.1906 | -823.0 | -672.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | -8.08 | 215.51 | 3.41 | 196.06 | 0.2139 | -854.0 | -657.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.39 | 215.34 | 3.24 | 192.85 | 0.2514 | -770.0 | -684.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.07 | 214.89 | 2.79 | 193.27 | 0.2112 | -1090.0 | -963.9 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -8.29 | 214.68 | 2.58 | 192.07 | 0.2140 | -1013.0 | -843.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.30 | 214.64 | 2.54 | 194.19 | 0.1806 | -927.0 | -796.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.20 | 214.61 | 2.51 | 192.92 | 0.1955 | -749.0 | -668.8 | |
| 3.18 | 45.69 | 1.60 | 23.04 | -6.98 | 214.45 | 2.36 | 192.39 | 0.1913 | -1179.1 | -741.8 | |
| 2.54 | -86.00 | 1.28 | -86.00 | -6.74 | 214.45 | 2.36 | 192.67 | 0.1871 | -1303.4 | 999999 | |
| 3.09 | -86.00 | 1.56 | -86.00 | -6.46 | 214.39 | 2.30 | 192.68 | 0.1822 | -1153.3 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.66 | -8.23 | 214.34 | 2.24 | 190.58 | 0.2118 | -842.0 | -774.4 | |
| 8.09 | -86.00 | 4.08 | -86.00 | -6.86 | 214.21 | 2.11 | 191.26 | 0.1883 | -1143.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.13 | 213.93 | 1.84 | 188.79 | 0.2090 | -1013.0 | -836.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -10.07 | 213.20 | 1.10 | 184.55 | 0.2404 | -985.0 | -777.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -11.17 | 213.17 | 1.08 | 184.10 | 0.2590 | -969.0 | -747.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -9.88 | 213.14 | 1.04 | 184.35 | 0.2372 | -951.0 | -806.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -11.36 | 212.95 | 0.86 | 183.23 | 0.2620 | -869.0 | -634.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -7.44 | 212.89 | 0.79 | 184.05 | 0.1953 | -1021.0 | -755.8 | |
| 0.00 | 2.54 | 0.00 | 1.28 | -7.20 | 212.73 | 0.64 | 183.34 | 0.1909 | -710.0 | -642.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.36 | 212.55 | 0.45 | 182.58 | 0.1763 | -826.0 | -610.1 | |
| 0.00 | 4.09 | 0.00 | 2.07 | -7.82 | 212.52 | 0.42 | 182.09 | 0.2013 | -921.0 | -839.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
