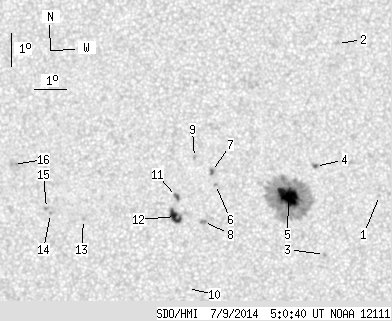

SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.06 | 194.22 | 19.07 | 97.23 | 6.16 | 204.33 | -7.77 | 71.73 | 0.1422 | -576.2 | -353.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.45 | 6.21 | 207.78 | -4.32 | 59.89 | 0.0869 | -783.0 | -608.7 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 10.86 | 206.42 | -5.67 | 37.99 | 0.1584 | -803.0 | -674.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.41 | 206.10 | -5.99 | 83.41 | 0.1053 | -859.0 | -717.1 | |
| 0.64 | 2.27 | 0.32 | 1.13 | 7.09 | 205.80 | -6.30 | 61.60 | 0.1243 | -1216.4 | -889.8 | |
| 26.34 | 156.25 | 13.16 | 78.08 | 6.17 | 204.98 | -7.12 | 70.80 | 0.1310 | -1414.7 | -423.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 6.52 | 202.71 | -9.39 | 73.07 | 0.1701 | -961.0 | -766.3 | |
| 0.73 | 2.45 | 0.37 | 1.23 | 6.91 | 202.58 | -9.52 | 71.08 | 0.1743 | -1046.9 | -818.7 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 5.38 | 202.36 | -9.74 | 80.01 | 0.1718 | -1030.0 | -801.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.33 | 202.04 | -10.06 | 69.80 | 0.1853 | -925.0 | -727.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 3.34 | 201.88 | -10.21 | 91.93 | 0.1779 | -730.0 | -443.8 | |
| 1.54 | 3.54 | 0.78 | 1.79 | 6.14 | 201.50 | -10.59 | 76.77 | 0.1886 | 1072.9 | 773.6 | |
| 8.81 | 12.63 | 4.44 | 6.37 | 5.53 | 201.48 | -10.61 | 80.00 | 0.1870 | 1164.3 | 824.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.40 | 198.60 | -13.49 | 82.44 | 0.2353 | 866.0 | 681.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 5.57 | 197.56 | -14.54 | 82.25 | 0.2532 | 810.0 | 684.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 5.72 | 197.43 | -14.67 | 81.72 | 0.2557 | 831.0 | 678.5 | |
| 0.00 | 2.73 | 0.00 | 1.40 | 7.04 | 196.34 | -15.75 | 77.43 | 0.2773 | 755.0 | 736.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
