SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.68 | 166.88 | 39.72 | 121.20 | 9.31 | 165.18 | -46.92 | 80.74 | 0.7320 | -254.9 | -96.1 | |
|
previous
or next observation for the same group /

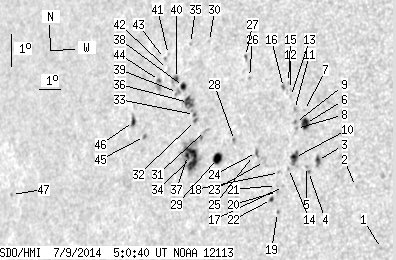

back to the solar disc SDO HMI 2014-07-09 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.70 | 6.15 | 172.57 | -39.53 | 84.86 | 0.6376 | -59.0 | -58.8 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 8.00 | 171.33 | -40.76 | 82.08 | 0.6551 | -650.0 | -534.8 | |
| 2.09 | 4.45 | 1.40 | 2.99 | 8.72 | 169.67 | -42.43 | 81.15 | 0.6772 | -875.8 | -687.1 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 8.37 | 169.34 | -42.76 | 81.70 | 0.6811 | -780.0 | -671.1 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 8.52 | 169.23 | -42.86 | 81.50 | 0.6825 | -693.0 | -623.8 | |
| 5.54 | 7.72 | 3.77 | 5.25 | 9.83 | 168.99 | -43.10 | 79.61 | 0.6868 | -869.7 | -571.8 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 10.23 | 168.89 | -43.21 | 79.05 | 0.6886 | -600.0 | -487.1 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 9.66 | 168.64 | -43.46 | 79.90 | 0.6910 | -769.0 | -589.5 | |
| 0.00 | 1.64 | 0.00 | 1.12 | 9.84 | 168.56 | -43.53 | 79.64 | 0.6921 | -674.0 | -514.9 | |
| 4.72 | 8.99 | 3.22 | 6.13 | 8.77 | 168.69 | -43.41 | 81.18 | 0.6896 | -883.7 | -620.3 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 10.24 | 168.45 | -43.64 | 79.09 | 0.6939 | -683.0 | -490.1 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 10.84 | 168.18 | -43.92 | 78.26 | 0.6981 | -734.0 | -642.1 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 10.63 | 168.21 | -43.88 | 78.56 | 0.6974 | -634.0 | -591.1 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 8.43 | 168.48 | -43.62 | 81.70 | 0.6919 | -768.0 | -690.1 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 11.05 | 168.05 | -44.05 | 77.98 | 0.6999 | -638.0 | -523.5 | |
| 0.45 | 2.27 | 0.32 | 1.58 | 10.89 | 167.86 | -44.23 | 78.23 | 0.7020 | -610.6 | -437.5 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 7.87 | 168.34 | -43.75 | 82.52 | 0.6932 | -378.0 | -432.7 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 8.29 | 168.11 | -43.98 | 81.93 | 0.6963 | -533.0 | -478.2 | |
| 0.00 | 1.27 | 0.00 | 0.87 | 7.06 | 168.19 | -43.91 | 83.69 | 0.6947 | 573.0 | 492.9 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 7.70 | 168.11 | -43.99 | 82.77 | 0.6961 | -705.0 | -529.8 | |
| 0.00 | 0.55 | 0.00 | 0.38 | 7.89 | 168.04 | -44.06 | 82.51 | 0.6970 | -549.0 | -467.2 | |
| 1.09 | 2.36 | 0.75 | 1.63 | 7.45 | 167.88 | -44.21 | 83.15 | 0.6987 | -437.2 | -262.1 | |
| 0.00 | 4.54 | 0.00 | 3.16 | 8.59 | 167.42 | -44.67 | 81.55 | 0.7051 | -22.0 | -167.5 | |
| 0.73 | 2.63 | 0.51 | 1.85 | 8.85 | 167.03 | -45.06 | 81.21 | 0.7100 | -487.0 | -463.6 | |
| 0.00 | 1.54 | 0.00 | 1.08 | 8.76 | 166.92 | -45.18 | 81.36 | 0.7114 | 200.0 | 3.3 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 11.13 | 166.32 | -45.78 | 78.11 | 0.7209 | -642.0 | -461.4 | |
| 0.45 | 2.27 | 0.33 | 1.63 | 11.77 | 166.00 | -46.09 | 77.28 | 0.7253 | -432.4 | -383.4 | |
| 0.00 | 1.73 | 0.00 | 1.23 | 9.18 | 166.01 | -46.09 | 80.85 | 0.7226 | 559.0 | 534.1 | |
| 7.18 | 9.72 | 5.19 | 7.02 | 8.59 | 165.34 | -46.76 | 81.71 | 0.7302 | -749.7 | -371.0 | |
| 0.00 | 0.64 | 0.00 | 0.47 | 12.15 | 164.27 | -47.83 | 77.00 | 0.7459 | 391.0 | 262.4 | |
| 0.00 | 2.54 | 0.00 | 1.86 | 9.42 | 164.65 | -47.44 | 80.63 | 0.7388 | 687.0 | 523.3 | |
| 0.64 | 1.73 | 0.47 | 1.28 | 9.71 | 164.14 | -47.96 | 80.29 | 0.7449 | 781.0 | 597.5 | |
| 0.64 | 2.82 | 0.47 | 2.09 | 9.89 | 164.06 | -48.04 | 80.06 | 0.7460 | 826.7 | 702.2 | |
| 14.90 | 49.06 | 11.00 | 36.26 | 8.57 | 164.15 | -47.94 | 81.82 | 0.7440 | -849.1 | -256.0 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 12.05 | 163.40 | -48.70 | 77.25 | 0.7555 | 623.0 | 466.1 | |
| 5.81 | 9.54 | 4.34 | 7.12 | 10.24 | 163.71 | -48.39 | 79.62 | 0.7503 | 811.1 | 626.9 | |
| 2.36 | -34.00 | 1.75 | -34.00 | 8.62 | 163.96 | -48.14 | 81.77 | 0.7463 | -597.0 | 999999 | |
| 2.82 | 4.72 | 2.12 | 3.55 | 10.72 | 163.37 | -48.72 | 79.02 | 0.7545 | 752.0 | 519.4 | |
| 0.00 | 3.36 | 0.00 | 2.54 | 10.52 | 163.13 | -48.97 | 79.30 | 0.7570 | 44.0 | 100.7 | |
| 1.36 | 5.45 | 1.03 | 4.14 | 10.95 | 162.99 | -49.11 | 78.75 | 0.7590 | 670.4 | 417.2 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 11.66 | 162.44 | -49.66 | 77.87 | 0.7657 | 468.0 | 387.9 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 11.20 | 162.50 | -49.60 | 78.47 | 0.7646 | 434.0 | 393.7 | |
| 0.00 | 1.27 | 0.00 | 0.98 | 11.53 | 162.28 | -49.82 | 78.06 | 0.7674 | 429.0 | 389.1 | |
| 0.91 | 6.45 | 0.70 | 4.96 | 10.85 | 162.19 | -49.90 | 78.96 | 0.7677 | 690.3 | 323.0 | |
| 0.45 | 1.73 | 0.35 | 1.34 | 9.10 | 161.83 | -50.26 | 81.26 | 0.7705 | 729.0 | 559.8 | |
| 2.54 | 5.54 | 2.00 | 4.35 | 9.53 | 161.21 | -50.89 | 80.74 | 0.7775 | 446.3 | 125.8 | |
| 0.00 | 0.91 | 0.00 | 0.82 | 6.99 | 155.30 | -56.80 | 84.09 | 0.8371 | 363.0 | 319.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
