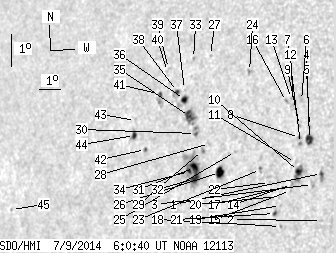

SDO HMI 2014-07-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.97 | 153.84 | 32.47 | 110.71 | 9.37 | 165.11 | -46.43 | 80.61 | 0.7263 | -245.8 | -120.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.73 | 4.36 | 0.48 | 2.90 | 8.75 | 169.70 | -41.85 | 81.06 | 0.6698 | -888.2 | -766.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 7.32 | 169.88 | -41.67 | 83.19 | 0.6664 | -129.0 | -124.0 | |
| 0.00 | 2.73 | 0.00 | 1.82 | 8.40 | 169.37 | -42.18 | 81.61 | 0.6737 | -730.0 | -603.1 | |
| 4.72 | 6.54 | 3.18 | 4.40 | 9.77 | 169.05 | -42.50 | 79.63 | 0.6792 | -907.7 | -652.9 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 10.17 | 168.98 | -42.56 | 79.05 | 0.6804 | -698.0 | -595.8 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 10.95 | 168.51 | -43.04 | 77.98 | 0.6874 | -561.0 | -444.9 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 9.63 | 168.69 | -42.86 | 79.87 | 0.6835 | -733.0 | -579.4 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 9.81 | 168.62 | -42.93 | 79.62 | 0.6846 | -703.0 | -552.5 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 10.18 | 168.56 | -42.99 | 79.09 | 0.6858 | -615.0 | -513.9 | |
| 3.27 | 9.54 | 2.21 | 6.44 | 8.77 | 168.73 | -42.82 | 81.13 | 0.6821 | -902.5 | -691.5 | |
| 0.00 | 0.73 | 0.00 | 0.49 | 9.04 | 168.57 | -42.98 | 80.75 | 0.6844 | -399.0 | -302.8 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 10.81 | 168.19 | -43.36 | 78.23 | 0.6911 | -728.0 | -599.6 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 10.99 | 168.07 | -43.47 | 77.99 | 0.6928 | -625.0 | -550.8 | |
| 0.00 | 2.54 | 0.00 | 1.72 | 8.36 | 168.49 | -43.05 | 81.75 | 0.6848 | -685.0 | -578.4 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 8.18 | 168.48 | -43.07 | 82.02 | 0.6849 | -668.0 | -532.0 | |
| 0.00 | 1.91 | 0.00 | 1.31 | 10.89 | 167.88 | -43.67 | 78.16 | 0.6951 | -613.0 | -469.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 8.25 | 168.13 | -43.42 | 81.94 | 0.6893 | -558.0 | -481.0 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 7.06 | 168.19 | -43.36 | 83.67 | 0.6878 | 614.0 | 485.8 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 7.70 | 168.11 | -43.43 | 82.74 | 0.6891 | -655.0 | -518.4 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 7.97 | 167.95 | -43.60 | 82.36 | 0.6913 | -145.0 | -223.0 | |
| 0.91 | 1.82 | 0.62 | 1.24 | 7.45 | 167.89 | -43.66 | 83.13 | 0.6918 | -445.4 | -359.5 | |
| 0.00 | 0.55 | 0.00 | 0.38 | 8.38 | 167.55 | -44.00 | 81.80 | 0.6966 | -573.0 | -462.5 | |
| 0.00 | 2.09 | 0.00 | 1.45 | 8.76 | 167.11 | -44.44 | 81.30 | 0.7023 | -617.0 | -557.8 | |
| 0.00 | 2.36 | 0.00 | 1.67 | 11.74 | 166.09 | -45.46 | 77.23 | 0.7178 | -697.0 | -461.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 9.26 | 165.93 | -45.61 | 80.70 | 0.7170 | 699.0 | 570.8 | |
| 6.63 | 9.08 | 4.74 | 6.50 | 8.59 | 165.33 | -46.22 | 81.68 | 0.7238 | -683.8 | -369.0 | |
| 0.00 | 0.73 | 0.00 | 0.53 | 12.15 | 164.23 | -47.32 | 76.94 | 0.7400 | 564.0 | 369.6 | |
| 0.00 | 1.91 | 0.00 | 1.38 | 9.45 | 164.73 | -46.81 | 80.54 | 0.7314 | 529.0 | 378.4 | |
| 0.00 | 2.18 | 0.00 | 1.59 | 9.23 | 164.46 | -47.09 | 80.88 | 0.7345 | 694.0 | 499.3 | |
| 0.73 | 5.45 | 0.53 | 4.00 | 9.73 | 164.04 | -47.50 | 80.23 | 0.7397 | 782.9 | 662.3 | |
| 6.27 | 41.25 | 4.58 | 30.19 | 8.69 | 164.18 | -47.37 | 81.62 | 0.7374 | -968.3 | -314.4 | |
| 5.45 | -31.00 | 3.98 | -31.00 | 8.35 | 164.24 | -47.31 | 82.08 | 0.7365 | -908.8 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 12.02 | 163.47 | -48.08 | 77.22 | 0.7485 | 545.0 | 473.6 | |
| 1.45 | -31.00 | 1.07 | -31.00 | 8.56 | 163.97 | -47.57 | 81.82 | 0.7397 | -657.2 | 999999 | |
| 6.72 | 13.26 | 4.97 | 9.80 | 10.24 | 163.67 | -47.88 | 79.58 | 0.7444 | 819.6 | 538.3 | |
| 3.27 | 8.18 | 2.43 | 6.10 | 10.74 | 163.33 | -48.21 | 78.93 | 0.7487 | 757.4 | 294.2 | |
| 0.00 | 0.36 | 0.00 | 0.27 | 11.05 | 163.27 | -48.28 | 78.53 | 0.7498 | 485.0 | 492.0 | |
| 1.27 | 5.09 | 0.95 | 3.82 | 10.97 | 162.95 | -48.59 | 78.67 | 0.7532 | 702.8 | 419.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 11.66 | 162.37 | -49.18 | 77.83 | 0.7604 | 498.0 | 428.5 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 11.56 | 162.35 | -49.20 | 77.96 | 0.7606 | 530.0 | 514.7 | |
| 0.82 | 7.00 | 0.62 | 5.32 | 10.84 | 162.17 | -49.37 | 78.92 | 0.7618 | 576.1 | 254.2 | |
| 0.55 | 1.64 | 0.42 | 1.25 | 9.13 | 161.81 | -49.74 | 81.19 | 0.7647 | 508.7 | 491.8 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 9.99 | 161.15 | -50.40 | 80.12 | 0.7725 | -515.0 | -441.4 | |
| 2.18 | 4.91 | 1.69 | 3.81 | 9.53 | 161.20 | -50.35 | 80.71 | 0.7717 | 413.4 | 214.8 | |
| 0.00 | 0.73 | 0.00 | 0.64 | 6.96 | 155.31 | -56.23 | 84.13 | 0.8317 | 333.0 | 334.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
