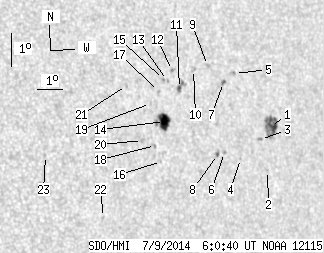

SDO HMI 2014-07-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.91 | 75.41 | 9.60 | 49.77 | 7.22 | 252.92 | 41.37 | 276.71 | 0.6621 | 257.3 | -125.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.62 | 0.00 | 15.54 | 6.85 | 255.47 | 43.92 | 275.99 | 0.6948 | -917.0 | -663.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 5.51 | 255.20 | 43.65 | 274.07 | 0.6911 | -474.0 | -397.0 | |
| 0.00 | 1.73 | 0.00 | 1.18 | 6.47 | 255.00 | 43.45 | 275.47 | 0.6888 | -816.0 | -766.6 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 5.93 | 254.10 | 42.55 | 274.70 | 0.6772 | -659.0 | -561.1 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 8.53 | 254.16 | 42.61 | 278.54 | 0.6793 | -579.0 | -546.1 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 6.14 | 253.46 | 41.91 | 275.03 | 0.6690 | -673.0 | -576.6 | |
| 0.55 | 2.18 | 0.36 | 1.46 | 8.28 | 253.66 | 42.12 | 278.21 | 0.6728 | -778.7 | -627.7 | |
| 0.64 | 2.54 | 0.42 | 1.68 | 6.09 | 253.16 | 41.62 | 274.97 | 0.6652 | -734.7 | -588.1 | |
| 0.00 | 1.82 | 0.00 | 1.20 | 8.83 | 253.07 | 41.53 | 279.09 | 0.6657 | -266.0 | -95.1 | |
| 0.00 | 2.18 | 0.00 | 1.43 | 8.73 | 252.49 | 40.94 | 279.01 | 0.6580 | 299.0 | 259.2 | |
| 1.00 | 5.63 | 0.65 | 3.66 | 8.17 | 251.84 | 40.30 | 278.23 | 0.6491 | 812.6 | 586.8 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 8.73 | 251.63 | 40.08 | 279.12 | 0.6469 | 798.0 | 648.6 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 8.44 | 251.39 | 39.84 | 278.69 | 0.6434 | 591.0 | 565.0 | |
| 12.72 | 19.71 | 8.17 | 12.65 | 7.19 | 251.13 | 39.58 | 276.77 | 0.6388 | 765.7 | 543.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 8.47 | 251.24 | 39.69 | 278.76 | 0.6414 | 834.0 | 750.1 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 5.98 | 250.89 | 39.34 | 274.87 | 0.6350 | 467.0 | 447.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 8.12 | 250.99 | 39.44 | 278.23 | 0.6378 | 652.0 | 586.4 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 6.48 | 250.70 | 39.15 | 275.67 | 0.6326 | 561.0 | 464.8 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 7.76 | 250.63 | 39.08 | 277.71 | 0.6326 | 587.0 | 485.8 | |
| 0.00 | 2.00 | 0.00 | 1.27 | 6.65 | 250.20 | 38.65 | 275.97 | 0.6260 | 787.0 | 652.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.35 | 249.75 | 38.20 | 278.75 | 0.6213 | 659.0 | 551.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 4.37 | 248.51 | 36.96 | 272.29 | 0.6022 | 700.0 | 489.7 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 6.34 | 246.45 | 34.90 | 275.72 | 0.5736 | 640.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
