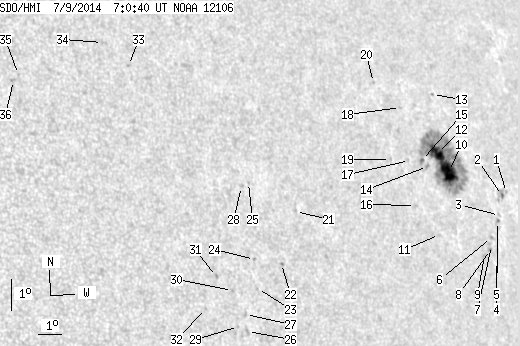

SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.52 | 211.89 | 33.80 | 165.96 | 14.55 | 261.23 | 50.23 | 285.84 | 0.7744 | -377.7 | -185.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.23 | 13.80 | 264.90 | 53.90 | 284.34 | 0.8121 | -346.0 | -317.9 | |
| 0.73 | 7.09 | 0.61 | 5.93 | 13.72 | 264.66 | 53.66 | 284.27 | 0.8096 | -635.8 | -517.9 | |
| 0.00 | 1.36 | 0.00 | 1.13 | 13.11 | 264.30 | 53.30 | 283.56 | 0.8055 | -481.0 | -405.3 | |
| 0.00 | 1.64 | 0.00 | 1.36 | 12.94 | 264.14 | 53.14 | 283.36 | 0.8037 | -580.0 | -566.6 | |
| 0.00 | 1.73 | 0.00 | 1.42 | 12.05 | 263.88 | 52.88 | 282.28 | 0.8002 | -439.0 | -353.1 | |
| 0.00 | 1.54 | 0.00 | 1.27 | 12.46 | 263.69 | 52.69 | 282.82 | 0.7986 | -607.0 | -490.1 | |
| 0.00 | 1.27 | 0.00 | 1.04 | 12.22 | 263.61 | 52.61 | 282.52 | 0.7977 | -498.0 | -527.4 | |
| 0.00 | 1.00 | 0.00 | 0.82 | 12.10 | 263.53 | 52.53 | 282.37 | 0.7967 | -702.0 | -620.1 | |
| 0.00 | 1.54 | 0.00 | 1.25 | 11.93 | 263.17 | 52.17 | 282.20 | 0.7929 | -234.0 | -204.5 | |
| 25.62 | 162.90 | 20.40 | 129.53 | 14.60 | 262.15 | 51.15 | 285.70 | 0.7851 | -843.9 | -235.4 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 12.68 | 261.13 | 50.13 | 283.39 | 0.7719 | -712.0 | -597.6 | |
| 15.26 | -10.00 | 12.08 | -10.00 | 15.18 | 261.79 | 50.79 | 286.49 | 0.7821 | -872.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 17.02 | 262.20 | 51.20 | 288.74 | 0.7892 | 323.0 | 276.9 | |
| 0.00 | 2.63 | 0.00 | 2.06 | 14.80 | 261.17 | 50.17 | 286.11 | 0.7750 | -684.0 | -598.7 | |
| 0.91 | -10.00 | 0.71 | -10.00 | 15.00 | 260.94 | 49.94 | 286.41 | 0.7729 | -760.4 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.32 | 13.63 | 260.23 | 49.23 | 284.75 | 0.7633 | -256.0 | -299.1 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 15.03 | 260.36 | 49.36 | 286.55 | 0.7667 | -458.0 | -466.4 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 16.69 | 260.47 | 49.47 | 288.66 | 0.7707 | -642.0 | -454.0 | |
| 0.00 | 0.64 | 0.00 | 0.48 | 15.11 | 259.46 | 48.46 | 286.80 | 0.7572 | -430.0 | -462.9 | |
| 0.00 | 1.18 | 0.00 | 0.90 | 17.53 | 259.45 | 48.45 | 289.97 | 0.7616 | 481.0 | 390.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 13.70 | 254.75 | 43.75 | 285.83 | 0.7006 | 478.0 | 447.5 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 12.13 | 253.80 | 42.80 | 283.77 | 0.6863 | 562.0 | 501.7 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 11.41 | 252.65 | 41.65 | 282.93 | 0.6707 | 507.0 | 396.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 12.30 | 252.70 | 41.70 | 284.24 | 0.6728 | 663.0 | 518.5 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 14.69 | 252.96 | 41.96 | 287.67 | 0.6811 | 504.0 | 390.5 | |
| 0.00 | 2.73 | 0.00 | 1.79 | 10.11 | 252.02 | 41.02 | 281.09 | 0.6607 | 607.0 | 512.3 | |
| 0.00 | 1.82 | 0.00 | 1.20 | 10.63 | 252.02 | 41.02 | 281.88 | 0.6614 | 752.0 | 560.6 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 14.58 | 252.64 | 41.64 | 287.59 | 0.6769 | 602.0 | 552.3 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 10.28 | 251.67 | 40.67 | 281.40 | 0.6565 | 773.0 | 639.7 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 11.39 | 251.61 | 40.61 | 283.10 | 0.6574 | 713.0 | 582.6 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 11.85 | 251.04 | 40.04 | 283.91 | 0.6509 | 784.0 | 681.8 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 10.89 | 250.43 | 39.43 | 282.56 | 0.6412 | 572.0 | 497.1 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 18.53 | 248.93 | 37.93 | 294.72 | 0.6439 | 672.0 | 595.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 19.30 | 248.08 | 37.08 | 296.25 | 0.6367 | 699.0 | 514.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 18.41 | 244.54 | 33.54 | 296.69 | 0.5889 | 548.0 | 463.6 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 18.23 | 244.30 | 33.30 | 296.53 | 0.5851 | 655.0 | 598.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
