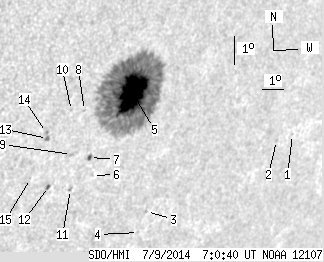

SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.05 | 410.40 | 47.12 | 306.54 | -19.16 | 254.46 | 43.46 | 240.18 | 0.7511 | 902.7 | 310.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.25 | -20.89 | 262.99 | 51.99 | 241.88 | 0.8368 | 482.0 | 457.3 | |
| 0.00 | 1.00 | 0.00 | 0.88 | -21.05 | 262.22 | 51.22 | 241.40 | 0.8308 | 485.0 | 414.8 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -23.15 | 256.70 | 45.70 | 236.58 | 0.7907 | -616.0 | -497.9 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -23.86 | 256.64 | 45.64 | 235.73 | 0.7933 | -463.0 | -395.8 | |
| 61.05 | 393.39 | 45.64 | 293.81 | -19.07 | 254.50 | 43.50 | 240.32 | 0.7511 | 1175.3 | 325.2 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -21.79 | 253.66 | 42.66 | 236.59 | 0.7560 | 559.0 | 486.9 | |
| 1.18 | 2.73 | 0.88 | 2.03 | -21.17 | 253.30 | 42.30 | 237.14 | 0.7494 | 563.8 | 430.5 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -19.57 | 252.55 | 41.55 | 238.68 | 0.7338 | 601.0 | 517.6 | |
| 0.00 | 1.64 | 0.00 | 1.20 | -21.03 | 252.46 | 41.46 | 236.84 | 0.7405 | 531.0 | 476.9 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -19.54 | 251.98 | 40.98 | 238.39 | 0.7279 | 323.0 | 237.2 | |
| 0.00 | 1.64 | 0.00 | 1.22 | -22.22 | 252.83 | 41.83 | 235.62 | 0.7504 | -588.0 | -446.9 | |
| 0.82 | 2.00 | 0.60 | 1.47 | -22.07 | 251.81 | 40.81 | 235.21 | 0.7398 | -587.6 | -501.6 | |
| 0.00 | 1.91 | 0.00 | 1.37 | -20.44 | 251.23 | 40.23 | 236.86 | 0.7250 | -615.0 | -443.5 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -20.23 | 251.12 | 40.12 | 237.04 | 0.7229 | -583.0 | -502.8 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -21.76 | 250.93 | 39.93 | 235.06 | 0.7295 | -533.0 | -416.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
