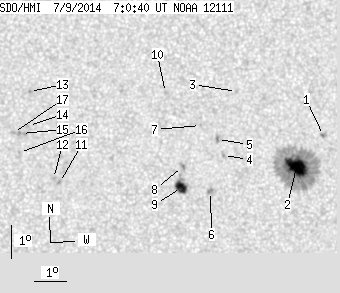

SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.98 | 193.61 | 16.98 | 96.76 | 6.20 | 204.10 | -6.90 | 69.20 | 0.1280 | -334.4 | -321.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 1.36 | 7.10 | 205.84 | -5.15 | 56.59 | 0.1073 | -1222.0 | -953.0 | |
| 24.71 | 152.54 | 12.32 | 76.05 | 6.15 | 205.02 | -5.98 | 67.76 | 0.1124 | -1430.2 | -444.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.43 | 203.13 | -7.87 | 58.72 | 0.1592 | -856.0 | -656.1 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 6.47 | 202.76 | -8.24 | 71.28 | 0.1510 | -1049.0 | -814.5 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 6.96 | 202.57 | -8.43 | 68.70 | 0.1569 | -1186.0 | -892.3 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 5.37 | 202.38 | -8.62 | 78.97 | 0.1528 | -980.0 | -899.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 7.38 | 202.03 | -8.97 | 67.44 | 0.1681 | -949.0 | -750.6 | |
| 0.00 | 3.54 | 0.00 | 1.78 | 6.13 | 201.50 | -9.50 | 75.51 | 0.1703 | 1110.0 | 875.2 | |
| 9.27 | 13.63 | 4.66 | 6.85 | 5.48 | 201.48 | -9.52 | 79.26 | 0.1684 | 1177.4 | 780.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 8.38 | 200.92 | -10.08 | 64.72 | 0.1924 | 929.0 | 578.2 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 5.59 | 197.66 | -13.34 | 81.58 | 0.2332 | 946.0 | 792.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 5.71 | 197.47 | -13.53 | 81.18 | 0.2366 | 792.0 | 544.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.36 | 196.63 | -14.37 | 71.45 | 0.2601 | 853.0 | 766.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 7.32 | 196.64 | -14.36 | 75.35 | 0.2555 | 654.0 | 438.4 | |
| 0.00 | 3.36 | 0.00 | 1.72 | 7.07 | 196.42 | -14.58 | 76.48 | 0.2581 | 865.0 | 741.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 6.49 | 196.37 | -14.63 | 78.73 | 0.2569 | 804.0 | 623.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 7.10 | 196.17 | -14.83 | 76.58 | 0.2623 | 729.0 | 585.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
