SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.81 | 0.00 | 7.31 | 18.37 | 197.21 | -13.79 | 40.34 | 0.3448 | 120.2 | -212.9 | |
|
previous
or next observation for the same group /

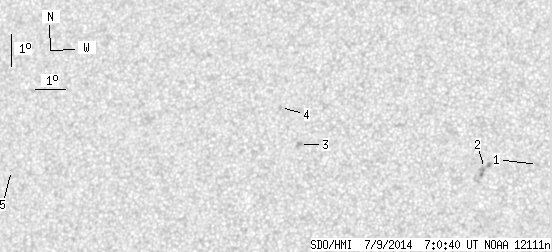

back to the solar disc SDO HMI 2014-07-09 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.17 | 202.07 | -8.93 | 30.55 | 0.2914 | -724.0 | -612.6 | |
| 0.00 | 7.00 | 0.00 | 3.64 | 18.03 | 200.36 | -10.64 | 35.33 | 0.3050 | -875.0 | -847.6 | |
| 0.00 | 3.45 | 0.00 | 1.85 | 18.70 | 194.18 | -16.82 | 46.44 | 0.3799 | 921.0 | 708.3 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 19.86 | 193.41 | -17.59 | 45.38 | 0.4009 | 637.0 | 489.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 17.66 | 184.35 | -26.65 | 59.97 | 0.4957 | 642.0 | 503.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
