SDO HMI 2014-07-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.43 | 200.17 | 29.33 | 159.13 | 14.66 | 261.36 | 50.91 | 285.86 | 0.7819 | -424.8 | -203.4 | |
|
previous
or next observation for the same group /

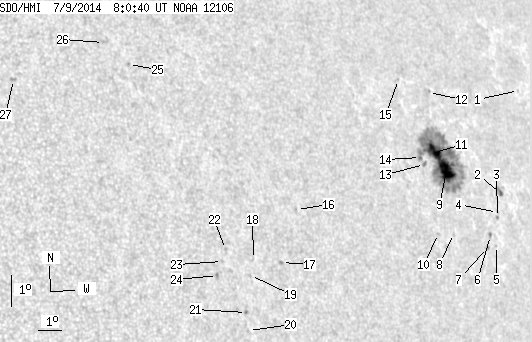

back to the solar disc SDO HMI 2014-07-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.58 | 16.84 | 266.96 | 56.51 | 287.68 | 0.8399 | -463.0 | -411.0 | |
| 1.54 | 4.82 | 1.32 | 4.10 | 13.72 | 264.70 | 54.25 | 284.21 | 0.8155 | -605.4 | -538.3 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 12.99 | 264.30 | 53.85 | 283.36 | 0.8108 | -579.0 | -533.8 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 13.15 | 264.35 | 53.90 | 283.54 | 0.8115 | -470.0 | -370.1 | |
| 0.00 | 0.91 | 0.00 | 0.76 | 12.14 | 263.99 | 53.53 | 282.33 | 0.8070 | -564.0 | -407.0 | |
| 0.00 | 1.91 | 0.00 | 1.58 | 12.46 | 263.76 | 53.31 | 282.75 | 0.8050 | -565.0 | -491.5 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 12.10 | 263.50 | 53.05 | 282.33 | 0.8020 | -699.0 | -622.4 | |
| 0.00 | 0.64 | 0.00 | 0.51 | 12.62 | 261.91 | 51.45 | 283.15 | 0.7860 | -185.0 | -215.0 | |
| 20.53 | 167.08 | 16.54 | 134.41 | 14.57 | 262.15 | 51.70 | 285.58 | 0.7908 | -884.3 | -254.5 | |
| 0.00 | 1.09 | 0.00 | 0.86 | 12.66 | 261.17 | 50.71 | 283.28 | 0.7782 | -665.0 | -539.2 | |
| 13.08 | -9.00 | 10.47 | -9.00 | 15.16 | 261.74 | 51.29 | 286.38 | 0.7873 | -917.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.11 | 17.03 | 262.12 | 51.67 | 288.67 | 0.7939 | 504.0 | 371.5 | |
| 0.73 | 2.09 | 0.57 | 1.65 | 14.81 | 261.12 | 50.67 | 286.04 | 0.7803 | -712.5 | -623.1 | |
| 0.55 | -9.00 | 0.43 | -9.00 | 15.04 | 260.99 | 50.54 | 286.35 | 0.7793 | -841.3 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.43 | 17.51 | 260.77 | 50.32 | 289.53 | 0.7810 | 489.0 | 380.0 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 13.71 | 254.82 | 44.37 | 285.71 | 0.7080 | 560.0 | 494.9 | |
| 0.00 | 1.82 | 0.00 | 1.24 | 12.11 | 253.81 | 43.36 | 283.64 | 0.6930 | 693.0 | 510.4 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 12.25 | 252.64 | 42.19 | 284.07 | 0.6789 | 683.0 | 566.6 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 11.77 | 252.42 | 41.97 | 283.40 | 0.6753 | 517.0 | 417.0 | |
| 0.00 | 0.55 | 0.00 | 0.36 | 10.09 | 252.04 | 41.59 | 280.97 | 0.6680 | 610.0 | 530.0 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 10.64 | 252.05 | 41.60 | 281.79 | 0.6689 | 765.0 | 648.2 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 12.61 | 251.54 | 41.09 | 284.83 | 0.6657 | 229.0 | 289.9 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 12.25 | 251.35 | 40.89 | 284.33 | 0.6626 | 638.0 | 564.7 | |
| 0.00 | 2.00 | 0.00 | 1.31 | 11.83 | 251.06 | 40.61 | 283.76 | 0.6581 | 783.0 | 699.8 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 18.52 | 248.91 | 38.46 | 294.46 | 0.6502 | 663.0 | 565.9 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 19.25 | 248.09 | 37.63 | 295.91 | 0.6432 | 653.0 | 568.4 | |
| 0.00 | 2.27 | 0.00 | 1.39 | 18.22 | 244.26 | 33.80 | 296.23 | 0.5913 | 809.0 | 649.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
