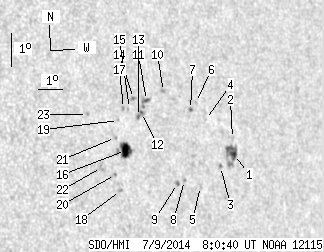

SDO HMI 2014-07-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.81 | 74.23 | 10.44 | 49.77 | 7.33 | 252.88 | 42.43 | 276.80 | 0.6759 | 256.5 | -25.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 18.35 | 1.40 | 12.85 | 6.85 | 255.67 | 45.22 | 275.94 | 0.7108 | -661.3 | -649.6 | |
| 0.00 | 1.64 | 0.00 | 1.15 | 7.35 | 255.65 | 45.19 | 276.64 | 0.7107 | -482.0 | -370.7 | |
| 0.00 | 1.91 | 0.00 | 1.32 | 6.52 | 255.02 | 44.57 | 275.49 | 0.7028 | -799.0 | -703.8 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 7.98 | 254.56 | 44.11 | 277.60 | 0.6977 | -737.0 | -678.7 | |
| 0.00 | 1.73 | 0.00 | 1.18 | 5.95 | 254.10 | 43.65 | 274.69 | 0.6912 | -591.0 | -539.1 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 8.52 | 254.21 | 43.76 | 278.41 | 0.6937 | -576.0 | -523.3 | |
| 0.45 | 1.64 | 0.31 | 1.12 | 8.31 | 253.96 | 43.51 | 278.13 | 0.6905 | -711.6 | -545.0 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 6.16 | 253.45 | 43.00 | 275.02 | 0.6829 | -604.0 | -508.3 | |
| 0.00 | 2.09 | 0.00 | 1.41 | 6.08 | 253.15 | 42.69 | 274.91 | 0.6790 | -829.0 | -670.2 | |
| 0.00 | 1.82 | 0.00 | 1.22 | 8.91 | 252.91 | 42.46 | 279.11 | 0.6777 | -128.0 | 28.7 | |
| 1.00 | 4.82 | 0.66 | 3.19 | 8.67 | 252.16 | 41.71 | 278.83 | 0.6680 | 622.1 | 511.7 | |
| 0.55 | 4.63 | 0.36 | 3.06 | 8.31 | 251.91 | 41.46 | 278.32 | 0.6644 | 714.3 | 623.0 | |
| 0.45 | -12.00 | 0.30 | -12.00 | 8.20 | 251.77 | 41.32 | 278.15 | 0.6625 | 801.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.32 | 8.75 | 251.64 | 41.19 | 279.01 | 0.6613 | 759.0 | 644.5 | |
| 0.00 | 0.64 | 0.00 | 0.42 | 8.46 | 251.44 | 40.98 | 278.58 | 0.6583 | 498.0 | 582.9 | |
| 11.36 | 18.35 | 7.41 | 11.97 | 7.18 | 251.12 | 40.67 | 276.67 | 0.6532 | 765.2 | 473.9 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 8.47 | 251.19 | 40.74 | 278.63 | 0.6552 | 761.0 | 636.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 5.97 | 250.79 | 40.34 | 274.82 | 0.6484 | 685.0 | 590.6 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 8.11 | 250.94 | 40.49 | 278.10 | 0.6516 | 662.0 | 577.8 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 6.47 | 250.64 | 40.19 | 275.59 | 0.6465 | 654.0 | 592.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 7.60 | 250.76 | 40.31 | 277.33 | 0.6488 | 796.0 | 637.4 | |
| 0.00 | 3.82 | 0.00 | 2.45 | 6.70 | 250.10 | 39.65 | 275.99 | 0.6394 | 802.0 | 720.3 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 8.34 | 249.72 | 39.27 | 278.60 | 0.6357 | 701.0 | 549.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
