SDO HMI 2014-07-09 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.79 | 206.14 | 17.86 | 102.82 | 6.11 | 204.09 | -5.81 | 65.85 | 0.1101 | -235.7 | -270.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

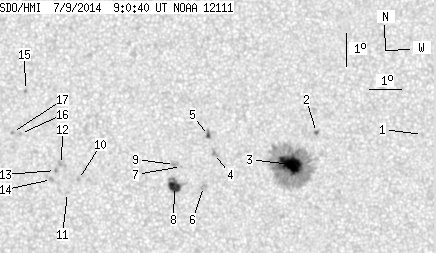

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.63 | 7.05 | 209.12 | -0.79 | 13.34 | 0.0595 | -792.0 | -559.7 | |
| 0.64 | 1.91 | 0.32 | 0.95 | 7.11 | 205.86 | -4.05 | 50.00 | 0.0919 | -1139.3 | -858.3 | |
| 24.71 | 156.90 | 12.30 | 78.08 | 6.13 | 205.06 | -4.84 | 63.53 | 0.0941 | -1418.0 | -432.7 | |
| 0.00 | 4.00 | 0.00 | 2.00 | 6.45 | 202.72 | -7.19 | 69.02 | 0.1337 | -1079.0 | -781.2 | |
| 1.45 | 3.82 | 0.73 | 1.91 | 7.00 | 202.53 | -7.38 | 65.81 | 0.1404 | -958.9 | -656.5 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 5.44 | 202.39 | -7.51 | 76.97 | 0.1342 | -944.0 | -748.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.05 | 201.70 | -8.20 | 73.96 | 0.1483 | 1007.0 | 770.8 | |
| 8.99 | 16.44 | 4.51 | 8.24 | 5.44 | 201.49 | -8.41 | 78.30 | 0.1494 | 1191.2 | 743.5 | |
| 0.00 | 4.91 | 0.00 | 2.46 | 6.11 | 201.49 | -8.42 | 73.96 | 0.1522 | 1096.0 | 732.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 5.62 | 198.51 | -11.40 | 80.21 | 0.2005 | 938.0 | 755.3 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 5.22 | 198.17 | -11.73 | 82.40 | 0.2052 | 860.0 | 716.9 | |
| 0.00 | 3.45 | 0.00 | 1.75 | 6.07 | 197.97 | -11.94 | 78.48 | 0.2109 | 914.0 | 797.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 5.89 | 197.78 | -12.12 | 79.49 | 0.2134 | 943.0 | 798.3 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 5.61 | 197.66 | -12.24 | 80.86 | 0.2147 | 994.0 | 847.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.32 | 196.77 | -13.13 | 70.11 | 0.2401 | 977.0 | 761.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.00 | 196.65 | -13.25 | 75.59 | 0.2359 | 995.0 | 635.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 7.03 | 196.40 | -13.50 | 75.72 | 0.2402 | 854.0 | 733.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
