SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.88 | 207.46 | 33.72 | 168.25 | 14.62 | 261.20 | 51.84 | 285.67 | 0.7911 | -397.7 | -142.0 | |
|
previous
or next observation for the same group /

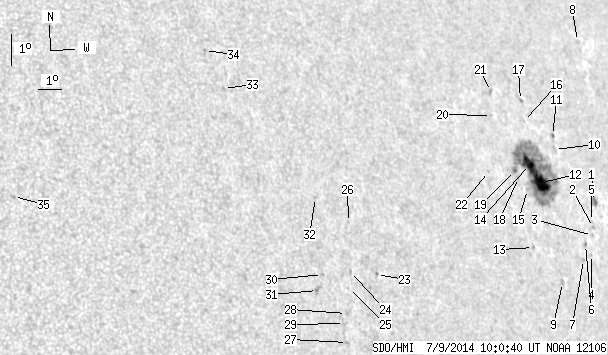

back to the solar disc SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 5.36 | 1.35 | 4.69 | 13.85 | 264.80 | 55.44 | 284.23 | 0.8271 | -575.2 | -468.1 | |
| 0.00 | 1.00 | 0.00 | 0.87 | 13.05 | 264.47 | 55.11 | 283.30 | 0.8232 | -535.0 | -474.2 | |
| 0.00 | 1.18 | 0.00 | 1.02 | 12.81 | 264.33 | 54.98 | 283.02 | 0.8217 | -360.0 | -381.5 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 12.23 | 264.09 | 54.74 | 282.34 | 0.8190 | -480.0 | -382.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 13.24 | 264.42 | 55.07 | 283.54 | 0.8230 | -499.0 | -502.3 | |
| 0.00 | 1.64 | 0.00 | 1.40 | 12.56 | 263.87 | 54.51 | 282.75 | 0.8170 | -565.0 | -553.5 | |
| 0.00 | 1.36 | 0.00 | 1.16 | 12.10 | 263.62 | 54.26 | 282.22 | 0.8142 | -648.0 | -607.9 | |
| 0.00 | 1.18 | 0.00 | 1.08 | 18.83 | 266.02 | 56.67 | 290.02 | 0.8437 | -423.0 | -343.5 | |
| 0.00 | 2.00 | 0.00 | 1.65 | 11.46 | 262.33 | 52.97 | 281.53 | 0.8007 | 512.0 | 374.6 | |
| 0.00 | 2.45 | 0.00 | 2.08 | 15.56 | 263.25 | 53.89 | 286.50 | 0.8139 | -123.0 | -126.5 | |
| 0.36 | 1.54 | 0.31 | 1.31 | 15.99 | 263.31 | 53.95 | 287.02 | 0.8150 | 220.8 | 197.0 | |
| 23.08 | 158.62 | 19.05 | 130.75 | 14.58 | 262.20 | 52.84 | 285.43 | 0.8023 | -811.7 | -214.8 | |
| 0.00 | 1.00 | 0.00 | 0.80 | 12.60 | 261.16 | 51.80 | 283.08 | 0.7896 | -639.0 | -595.6 | |
| 15.08 | -12.00 | 12.35 | -12.00 | 15.16 | 261.77 | 52.42 | 286.22 | 0.7988 | -890.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.11 | 14.40 | 261.41 | 52.05 | 285.31 | 0.7941 | -381.0 | -366.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | 16.51 | 261.96 | 52.61 | 287.86 | 0.8025 | -401.0 | -468.7 | |
| 0.00 | 1.54 | 0.00 | 1.28 | 17.16 | 262.07 | 52.71 | 288.65 | 0.8045 | 262.0 | 317.4 | |
| 0.00 | 1.36 | 0.00 | 1.10 | 14.79 | 261.08 | 51.72 | 285.85 | 0.7912 | -719.0 | -666.9 | |
| 0.82 | -12.00 | 0.66 | -12.00 | 15.01 | 261.00 | 51.64 | 286.15 | 0.7907 | -867.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.58 | 16.77 | 260.41 | 51.05 | 288.46 | 0.7873 | -531.0 | -452.0 | |
| 0.00 | 2.54 | 0.00 | 2.05 | 17.52 | 260.65 | 51.29 | 289.35 | 0.7909 | 582.0 | 439.7 | |
| 0.00 | 0.91 | 0.00 | 0.71 | 15.05 | 259.65 | 50.30 | 286.41 | 0.7767 | -494.0 | -450.6 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 12.13 | 253.67 | 44.31 | 283.49 | 0.7047 | 274.0 | 358.3 | |
| 0.00 | 1.36 | 0.00 | 0.93 | 12.27 | 252.57 | 43.22 | 283.89 | 0.6915 | 604.0 | 558.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 11.75 | 252.38 | 43.03 | 283.18 | 0.6884 | 506.0 | 444.0 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 13.78 | 252.82 | 43.46 | 286.00 | 0.6973 | 488.0 | 435.2 | |
| 0.00 | 2.09 | 0.00 | 1.41 | 10.10 | 252.04 | 42.68 | 280.83 | 0.6818 | 609.0 | 415.9 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 10.99 | 252.15 | 42.80 | 282.11 | 0.6844 | 411.0 | 441.7 | |
| 0.00 | 2.36 | 0.00 | 1.60 | 10.69 | 252.01 | 42.66 | 281.69 | 0.6822 | 590.0 | 474.2 | |
| 0.00 | 1.36 | 0.00 | 0.91 | 12.23 | 251.37 | 42.02 | 284.07 | 0.6766 | 672.0 | 555.7 | |
| 0.00 | 4.72 | 0.00 | 3.15 | 11.75 | 251.07 | 41.71 | 283.42 | 0.6720 | 820.0 | 622.6 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 14.62 | 251.60 | 42.24 | 287.49 | 0.6843 | 727.0 | 564.6 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 18.17 | 248.63 | 39.28 | 293.62 | 0.6588 | 387.0 | 342.8 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 19.39 | 248.18 | 38.83 | 295.59 | 0.6580 | 535.0 | 502.5 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 15.10 | 239.82 | 30.46 | 292.78 | 0.5329 | 602.0 | 510.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
