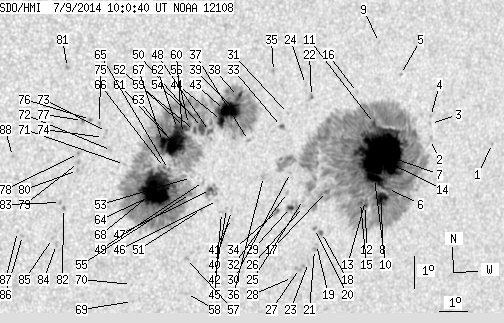

SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 345.13 | 2041.64 | 203.27 | 1206.89 | -6.91 | 240.81 | 31.45 | 251.10 | 0.5484 | 1.8 | 105.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.94 | -6.71 | 248.19 | 38.83 | 254.97 | 0.6471 | 610.0 | 470.6 | |
| 0.00 | 3.09 | 0.00 | 1.94 | -6.48 | 245.76 | 36.41 | 254.37 | 0.6146 | -135.0 | -41.9 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -5.99 | 245.72 | 36.37 | 255.14 | 0.6123 | 602.0 | 426.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -5.77 | 245.71 | 36.35 | 255.48 | 0.6114 | -183.0 | -176.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -4.43 | 244.49 | 35.13 | 257.20 | 0.5905 | -190.0 | -300.0 | |
| 1.09 | 1087.45 | 0.67 | 663.33 | -7.94 | 244.26 | 34.91 | 251.37 | 0.6003 | 361.6 | 438.6 | |
| 123.92 | -6.00 | 76.03 | -6.00 | -6.88 | 243.98 | 34.62 | 252.95 | 0.5922 | 1457.7 | 999999 | |
| 10.81 | -6.00 | 6.67 | -6.00 | -8.25 | 244.07 | 34.71 | 250.79 | 0.5990 | 926.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -3.41 | 243.66 | 34.30 | 258.61 | 0.5760 | -555.0 | -375.9 | |
| 11.27 | -6.00 | 6.91 | -6.00 | -7.61 | 243.74 | 34.39 | 251.65 | 0.5920 | 1231.8 | 999999 | |
| 0.27 | -6.00 | 0.17 | -6.00 | -5.90 | 243.61 | 34.25 | 254.39 | 0.5835 | 1014.7 | 999999 | |
| 1.64 | -6.00 | 1.00 | -6.00 | -8.44 | 243.49 | 34.13 | 250.18 | 0.5922 | 732.5 | 999999 | |
| 0.36 | -6.00 | 0.22 | -6.00 | -8.29 | 243.47 | 34.12 | 250.42 | 0.5913 | 826.5 | 999999 | |
| 3.00 | -6.00 | 1.82 | -6.00 | -6.69 | 243.18 | 33.83 | 252.88 | 0.5807 | 1623.2 | 999999 | |
| 2.63 | -6.00 | 1.61 | -6.00 | -8.34 | 243.29 | 33.94 | 250.23 | 0.5891 | 1004.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -4.92 | 242.92 | 33.56 | 255.75 | 0.5704 | -297.0 | -228.8 | |
| 1.27 | -6.00 | 0.77 | -6.00 | -7.95 | 242.00 | 32.64 | 250.18 | 0.5700 | 990.6 | 999999 | |
| 1.00 | 2.73 | 0.60 | 1.65 | -9.23 | 241.94 | 32.58 | 248.03 | 0.5753 | 870.7 | 702.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -9.60 | 241.79 | 32.44 | 247.34 | 0.5753 | 794.0 | 628.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -9.09 | 241.67 | 32.31 | 248.09 | 0.5711 | 867.0 | 764.8 | |
| 0.00 | 2.45 | 0.00 | 1.48 | -9.75 | 241.74 | 32.38 | 247.05 | 0.5753 | 767.0 | 630.3 | |
| 0.36 | 2.54 | 0.21 | 1.50 | -4.98 | 241.24 | 31.89 | 254.90 | 0.5472 | -653.0 | -539.0 | |
| 0.00 | 2.27 | 0.00 | 1.37 | -10.15 | 241.56 | 32.21 | 246.29 | 0.5751 | 557.0 | 518.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -4.60 | 241.01 | 31.65 | 255.46 | 0.5425 | 551.0 | 480.5 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -8.17 | 241.18 | 31.82 | 249.34 | 0.5600 | 329.0 | 344.0 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -8.39 | 241.20 | 31.84 | 248.98 | 0.5613 | 299.0 | 288.3 | |
| 0.00 | 4.91 | 0.00 | 2.96 | -10.33 | 241.25 | 31.90 | 245.81 | 0.5720 | 644.0 | 729.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -10.60 | 241.03 | 31.67 | 245.21 | 0.5706 | 778.0 | 641.7 | |
| 2.18 | 12.54 | 1.30 | 7.46 | -8.40 | 240.73 | 31.37 | 248.67 | 0.5550 | -773.8 | -128.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -7.31 | 240.64 | 31.28 | 250.49 | 0.5485 | 644.0 | 592.1 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -5.48 | 240.44 | 31.09 | 253.62 | 0.5378 | -468.0 | -306.2 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -7.93 | 240.58 | 31.22 | 249.39 | 0.5507 | 896.0 | 718.4 | |
| 1.00 | 2.27 | 0.59 | 1.33 | -5.87 | 240.22 | 30.86 | 252.80 | 0.5362 | -687.9 | -550.9 | |
| 0.64 | 3.91 | 0.38 | 2.31 | -8.48 | 240.27 | 30.91 | 248.26 | 0.5491 | 807.6 | 733.5 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -4.16 | 239.84 | 30.49 | 255.73 | 0.5242 | 867.0 | 739.5 | |
| 0.00 | 2.91 | 0.00 | 1.70 | -7.40 | 239.68 | 30.32 | 249.77 | 0.5357 | -343.0 | -185.8 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -6.26 | 239.07 | 29.71 | 251.44 | 0.5217 | -560.0 | -417.8 | |
| 3.91 | 843.52 | 2.25 | 478.97 | -4.89 | 238.64 | 29.28 | 253.76 | 0.5096 | 552.3 | -360.9 | |
| 14.99 | -38.00 | 8.62 | -38.00 | -5.29 | 238.52 | 29.16 | 252.94 | 0.5096 | -967.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -8.42 | 238.62 | 29.27 | 247.27 | 0.5264 | -456.0 | -366.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -8.67 | 238.64 | 29.29 | 246.84 | 0.5280 | -306.0 | -208.3 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -8.35 | 238.44 | 29.08 | 247.26 | 0.5235 | -546.0 | -446.1 | |
| 14.44 | -38.00 | 8.28 | -38.00 | -5.31 | 238.17 | 28.81 | 252.71 | 0.5046 | -1137.1 | 999999 | |
| 6.90 | -38.00 | 3.96 | -38.00 | -5.61 | 238.08 | 28.73 | 252.08 | 0.5047 | -1150.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -8.47 | 238.27 | 28.92 | 246.93 | 0.5219 | -487.0 | -378.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -8.09 | 238.10 | 28.75 | 247.49 | 0.5174 | -627.0 | -437.6 | |
| 2.36 | 12.63 | 1.36 | 7.28 | -7.74 | 237.83 | 28.47 | 247.94 | 0.5117 | -794.6 | -502.4 | |
| 1.64 | -38.00 | 0.93 | -38.00 | -5.94 | 237.68 | 28.32 | 251.21 | 0.5005 | -739.1 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -7.48 | 237.57 | 28.21 | 248.23 | 0.5067 | -494.0 | -403.1 | |
| 7.18 | -38.00 | 4.09 | -38.00 | -5.81 | 237.43 | 28.07 | 251.31 | 0.4962 | -835.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -8.36 | 237.56 | 28.20 | 246.63 | 0.5114 | -505.0 | -440.5 | |
| 1.27 | -38.00 | 0.72 | -38.00 | -5.89 | 237.16 | 27.80 | 250.97 | 0.4927 | -858.2 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.31 | -7.35 | 237.14 | 27.78 | 248.19 | 0.4999 | -337.0 | -212.8 | |
| 1.18 | -38.00 | 0.67 | -38.00 | -5.39 | 236.99 | 27.64 | 251.84 | 0.4880 | -593.7 | 999999 | |
| 0.45 | -38.00 | 0.26 | -38.00 | -7.84 | 237.14 | 27.78 | 247.26 | 0.5027 | -383.0 | 999999 | |
| 1.36 | -38.00 | 0.77 | -38.00 | -5.70 | 236.94 | 27.58 | 251.20 | 0.4886 | -820.3 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -9.87 | 237.16 | 27.81 | 243.60 | 0.5151 | -812.0 | -564.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -10.98 | 237.27 | 27.91 | 241.77 | 0.5237 | -529.0 | -394.7 | |
| 2.82 | -38.00 | 1.60 | -38.00 | -5.79 | 236.80 | 27.45 | 250.94 | 0.4871 | -907.5 | 999999 | |
| 3.54 | -38.00 | 2.01 | -38.00 | -5.97 | 236.74 | 27.39 | 250.55 | 0.4872 | -886.6 | 999999 | |
| 0.27 | -38.00 | 0.15 | -38.00 | -6.56 | 236.78 | 27.42 | 249.43 | 0.4906 | -710.3 | 999999 | |
| 5.45 | -38.00 | 3.08 | -38.00 | -5.81 | 236.56 | 27.21 | 250.74 | 0.4838 | -1089.1 | 999999 | |
| 35.52 | -38.00 | 20.10 | -38.00 | -6.30 | 236.49 | 27.13 | 249.72 | 0.4851 | -1122.2 | 999999 | |
| 1.64 | -38.00 | 0.93 | -38.00 | -7.58 | 236.53 | 27.17 | 247.31 | 0.4926 | -676.1 | 999999 | |
| 0.55 | -38.00 | 0.31 | -38.00 | -7.07 | 236.32 | 26.97 | 248.12 | 0.4869 | -799.3 | 999999 | |
| 0.64 | -38.00 | 0.36 | -38.00 | -7.01 | 236.18 | 26.83 | 248.14 | 0.4845 | -897.3 | 999999 | |
| 9.90 | -38.00 | 5.58 | -38.00 | -6.20 | 236.07 | 26.71 | 249.64 | 0.4786 | -1456.0 | 999999 | |
| 67.32 | -38.00 | 38.09 | -38.00 | -7.68 | 235.95 | 26.59 | 246.67 | 0.4851 | -1277.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -11.17 | 235.40 | 26.05 | 239.78 | 0.5006 | -549.0 | -544.7 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -10.63 | 235.32 | 25.96 | 240.66 | 0.4956 | -562.0 | -579.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.87 | 234.80 | 25.45 | 247.35 | 0.4642 | -209.0 | -217.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -6.42 | 234.34 | 24.98 | 247.88 | 0.4549 | -840.0 | -690.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.83 | 234.14 | 24.78 | 248.96 | 0.4487 | -886.0 | -723.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.01 | 234.05 | 24.69 | 248.50 | 0.4483 | -732.0 | -617.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -5.58 | 233.89 | 24.54 | 249.30 | 0.4437 | -922.0 | -746.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.44 | 233.58 | 24.23 | 249.34 | 0.4384 | -937.0 | -826.8 | |
| 0.36 | 1.64 | 0.20 | 0.90 | -5.47 | 233.32 | 23.96 | 249.07 | 0.4346 | -971.8 | -755.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -6.48 | 233.23 | 23.87 | 246.82 | 0.4392 | -875.0 | -742.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -6.76 | 233.24 | 23.89 | 246.25 | 0.4411 | -1023.0 | -851.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -7.01 | 233.22 | 23.87 | 245.72 | 0.4424 | -902.0 | -777.1 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -3.82 | 232.76 | 23.40 | 252.31 | 0.4177 | -959.0 | -795.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -8.18 | 232.82 | 23.46 | 242.93 | 0.4444 | -912.0 | -766.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.99 | 232.71 | 23.35 | 243.21 | 0.4415 | -915.0 | -802.6 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -9.30 | 232.66 | 23.30 | 240.53 | 0.4502 | -689.0 | -576.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.11 | 232.51 | 23.15 | 240.76 | 0.4468 | -834.0 | -681.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -8.99 | 231.50 | 22.14 | 239.91 | 0.4320 | -811.0 | -674.1 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.86 | 231.32 | 21.97 | 239.98 | 0.4287 | -689.0 | -522.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.52 | 231.03 | 21.68 | 244.67 | 0.4077 | -940.0 | -766.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
