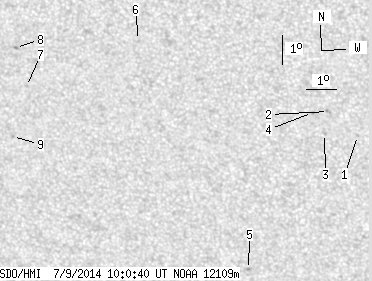

SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.91 | 0.00 | 6.13 | -22.40 | 199.62 | -9.74 | 160.72 | 0.4736 | -100.4 | 38.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.35 | 204.11 | -5.24 | 169.12 | 0.4496 | 508.0 | 388.0 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -21.54 | 203.19 | -6.17 | 166.83 | 0.4403 | 923.0 | 741.0 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -22.29 | 203.02 | -6.33 | 166.90 | 0.4522 | 688.0 | 506.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.58 | 202.66 | -6.70 | 165.77 | 0.4428 | 732.0 | 696.0 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -27.03 | 200.14 | -9.21 | 164.41 | 0.5326 | -831.0 | -626.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -19.23 | 197.07 | -12.29 | 152.68 | 0.4397 | -586.0 | -610.2 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -20.82 | 193.17 | -16.19 | 147.78 | 0.4907 | -784.0 | -536.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.53 | 192.94 | -16.42 | 145.85 | 0.4764 | -858.0 | -621.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.52 | 192.48 | -16.87 | 148.65 | 0.5173 | -696.0 | -607.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
