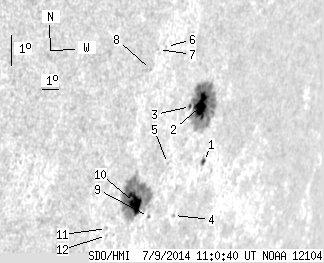

SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.80 | 194.85 | 41.57 | 198.43 | -11.93 | 267.90 | 59.09 | 254.06 | 0.8748 | 20.4 | -96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 2.73 | 1.78 | 2.97 | -12.37 | 270.14 | 61.33 | 254.08 | 0.8931 | 485.9 | 396.5 | |
| 19.08 | 95.47 | 20.09 | 100.91 | -10.57 | 269.35 | 60.54 | 255.92 | 0.8843 | 731.8 | 124.3 | |
| 0.91 | -2.00 | 0.94 | -2.00 | -10.56 | 268.65 | 59.84 | 255.80 | 0.8788 | 638.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.45 | -14.01 | 268.89 | 60.08 | 252.00 | 0.8861 | -321.0 | -269.0 | |
| 0.00 | 0.73 | 0.00 | 0.74 | -12.30 | 267.83 | 59.03 | 253.67 | 0.8749 | 234.0 | 351.2 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -8.57 | 266.65 | 57.84 | 257.66 | 0.8590 | 551.0 | 504.3 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -8.64 | 266.20 | 57.40 | 257.50 | 0.8551 | 638.0 | 565.0 | |
| 0.00 | 0.82 | 0.00 | 0.77 | -9.24 | 265.89 | 57.08 | 256.73 | 0.8533 | 482.0 | 439.7 | |
| 0.00 | 1.27 | 0.00 | 1.29 | -13.95 | 267.31 | 58.50 | 251.70 | 0.8736 | -340.0 | -289.0 | |
| 19.17 | 89.66 | 18.76 | 87.63 | -13.44 | 266.28 | 57.47 | 252.01 | 0.8642 | -827.2 | -365.1 | |
| 0.00 | 1.54 | 0.00 | 1.46 | -14.19 | 264.94 | 56.14 | 250.82 | 0.8544 | -588.0 | -417.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -14.42 | 265.03 | 56.22 | 250.58 | 0.8556 | -292.0 | -309.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
