SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 326.40 | 1985.55 | 194.06 | 1181.31 | -6.92 | 240.83 | 32.02 | 251.40 | 0.5563 | 82.0 | 91.1 | |
|
previous
or next observation for the same group /

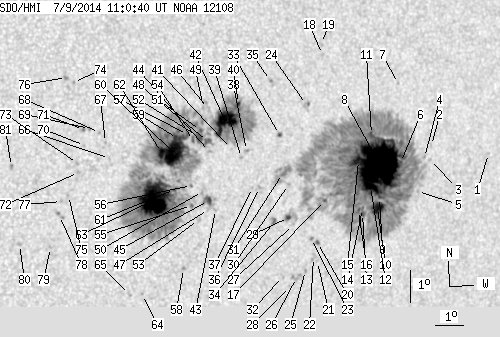

back to the solar disc SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.53 | -6.73 | 248.20 | 39.39 | 255.14 | 0.6543 | 625.0 | 520.4 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -6.39 | 245.93 | 37.12 | 254.81 | 0.6238 | -232.0 | -155.4 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -6.82 | 245.93 | 37.12 | 254.13 | 0.6252 | -123.0 | -98.7 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -6.75 | 245.69 | 36.89 | 254.15 | 0.6219 | 216.0 | 153.5 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -7.80 | 245.52 | 36.72 | 252.45 | 0.6235 | -203.0 | -198.8 | |
| 0.27 | 1060.03 | 0.17 | 651.25 | -6.87 | 244.78 | 35.98 | 253.58 | 0.6103 | 260.7 | 434.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -4.42 | 244.54 | 35.73 | 257.43 | 0.5987 | -483.0 | -346.6 | |
| 123.27 | -6.00 | 76.16 | -6.00 | -6.87 | 243.99 | 35.18 | 253.23 | 0.5997 | 1430.2 | 999999 | |
| 0.27 | -6.00 | 0.17 | -6.00 | -7.93 | 244.09 | 35.28 | 251.58 | 0.6051 | 720.3 | 999999 | |
| 12.35 | -6.00 | 7.68 | -6.00 | -8.24 | 244.04 | 35.23 | 251.07 | 0.6058 | 906.3 | 999999 | |
| 2.73 | -6.00 | 1.67 | -6.00 | -5.96 | 243.62 | 34.81 | 254.55 | 0.5913 | 860.0 | 999999 | |
| 11.99 | -6.00 | 7.40 | -6.00 | -7.57 | 243.71 | 34.91 | 251.97 | 0.5987 | 1260.6 | 999999 | |
| 2.00 | -6.00 | 1.23 | -6.00 | -8.40 | 243.49 | 34.69 | 250.53 | 0.5993 | 715.5 | 999999 | |
| 0.73 | -6.00 | 0.45 | -6.00 | -8.24 | 243.48 | 34.67 | 250.77 | 0.5984 | 862.1 | 999999 | |
| 6.27 | -6.00 | 3.83 | -6.00 | -6.74 | 243.19 | 34.39 | 253.06 | 0.5885 | 1556.7 | 999999 | |
| 1.73 | -6.00 | 1.06 | -6.00 | -8.30 | 243.33 | 34.53 | 250.61 | 0.5968 | 1025.6 | 999999 | |
| 0.82 | -6.00 | 0.50 | -6.00 | -7.94 | 242.03 | 33.23 | 250.51 | 0.5779 | 920.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -3.42 | 241.67 | 32.87 | 258.08 | 0.5558 | 668.0 | 517.9 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -3.08 | 241.62 | 32.82 | 258.66 | 0.5541 | 431.0 | 370.4 | |
| 0.73 | 2.82 | 0.44 | 1.71 | -9.24 | 241.90 | 33.10 | 248.31 | 0.5822 | 843.6 | 692.6 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -9.84 | 241.97 | 33.16 | 247.38 | 0.5860 | 515.0 | 453.9 | |
| 0.00 | 3.54 | 0.00 | 2.16 | -9.71 | 241.81 | 33.00 | 247.50 | 0.5833 | 570.0 | 630.9 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -9.11 | 241.67 | 32.86 | 248.39 | 0.5785 | 847.0 | 750.8 | |
| 0.00 | 3.91 | 0.00 | 2.32 | -4.94 | 241.16 | 32.35 | 255.19 | 0.5536 | -618.0 | -512.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -10.11 | 241.56 | 32.75 | 246.70 | 0.5820 | 731.0 | 646.6 | |
| 0.00 | 5.72 | 0.00 | 3.47 | -10.32 | 241.25 | 32.44 | 246.18 | 0.5791 | 477.0 | 673.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.65 | 240.96 | 32.16 | 248.73 | 0.5668 | 338.0 | 235.7 | |
| 0.00 | 0.55 | 0.00 | 0.33 | -10.59 | 241.02 | 32.22 | 245.59 | 0.5776 | 775.0 | 635.0 | |
| 1.82 | 9.81 | 1.09 | 5.88 | -8.42 | 240.76 | 31.95 | 248.99 | 0.5629 | -798.0 | -181.6 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -7.39 | 240.67 | 31.87 | 250.68 | 0.5569 | 807.0 | 636.4 | |
| 0.00 | 18.53 | 0.00 | 10.99 | -7.04 | 240.43 | 31.62 | 251.15 | 0.5519 | 245.0 | 286.5 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -10.27 | 240.73 | 31.92 | 245.92 | 0.5720 | 356.0 | 405.4 | |
| 1.00 | 1.91 | 0.59 | 1.12 | -5.83 | 240.24 | 31.43 | 253.17 | 0.5441 | -612.2 | -412.8 | |
| 1.09 | 2.82 | 0.65 | 1.68 | -8.53 | 240.26 | 31.46 | 248.51 | 0.5567 | 890.2 | 772.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -4.15 | 239.83 | 31.02 | 256.00 | 0.5318 | 847.0 | 753.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -7.45 | 239.63 | 30.82 | 249.98 | 0.5428 | -245.0 | -215.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -7.44 | 239.38 | 30.57 | 249.85 | 0.5393 | -490.0 | -388.0 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -6.28 | 239.08 | 30.28 | 251.74 | 0.5298 | -594.0 | -478.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.49 | 238.92 | 30.11 | 251.26 | 0.5285 | -548.0 | -402.3 | |
| 1.73 | 802.59 | 1.00 | 458.02 | -4.82 | 238.72 | 29.91 | 254.23 | 0.5184 | 796.1 | -393.3 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -6.20 | 238.55 | 29.74 | 251.57 | 0.5219 | -328.0 | -300.3 | |
| 31.52 | -40.00 | 18.19 | -40.00 | -5.36 | 238.29 | 29.48 | 252.99 | 0.5144 | -1072.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -8.08 | 238.11 | 29.31 | 247.90 | 0.5251 | -431.0 | -318.4 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -6.27 | 237.78 | 28.97 | 250.99 | 0.5112 | -511.0 | -380.6 | |
| 3.91 | 7.36 | 2.26 | 4.26 | -7.79 | 237.84 | 29.04 | 248.24 | 0.5198 | -733.0 | -499.5 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -4.94 | 237.67 | 28.86 | 253.44 | 0.5037 | -302.0 | -157.9 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -8.07 | 237.87 | 29.06 | 247.75 | 0.5216 | -332.0 | -264.4 | |
| 2.54 | -40.00 | 1.46 | -40.00 | -5.96 | 237.69 | 28.88 | 251.52 | 0.5085 | -751.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -4.90 | 237.49 | 28.69 | 253.41 | 0.5010 | -161.0 | -145.7 | |
| 0.00 | 2.73 | 0.00 | 1.57 | -7.50 | 237.61 | 28.81 | 248.60 | 0.5151 | -457.0 | -323.6 | |
| 0.91 | -40.00 | 0.52 | -40.00 | -5.61 | 237.42 | 28.62 | 252.02 | 0.5031 | -701.6 | 999999 | |
| 4.81 | -40.00 | 2.76 | -40.00 | -5.82 | 237.40 | 28.59 | 251.60 | 0.5038 | -879.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.42 | -8.37 | 237.54 | 28.73 | 246.98 | 0.5187 | -216.0 | -299.3 | |
| 0.64 | -40.00 | 0.36 | -40.00 | -5.91 | 237.20 | 28.39 | 251.31 | 0.5013 | -886.1 | 999999 | |
| 0.45 | -40.00 | 0.26 | -40.00 | -7.93 | 237.26 | 28.45 | 247.59 | 0.5124 | -405.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -7.30 | 237.21 | 28.41 | 248.70 | 0.5084 | -504.0 | -397.9 | |
| 0.27 | -40.00 | 0.16 | -40.00 | -5.72 | 236.98 | 28.17 | 251.54 | 0.4972 | -848.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -9.89 | 237.14 | 28.33 | 243.99 | 0.5223 | -772.0 | -641.4 | |
| 5.63 | -40.00 | 3.20 | -40.00 | -5.83 | 236.63 | 27.83 | 251.11 | 0.4928 | -1016.3 | 999999 | |
| 34.34 | -40.00 | 19.54 | -40.00 | -6.29 | 236.56 | 27.75 | 250.17 | 0.4940 | -1108.0 | 999999 | |
| 1.54 | -40.00 | 0.88 | -40.00 | -7.41 | 236.63 | 27.82 | 248.10 | 0.5008 | -462.5 | 999999 | |
| 6.18 | -40.00 | 3.50 | -40.00 | -6.25 | 236.10 | 27.30 | 249.95 | 0.4872 | -1528.8 | 999999 | |
| 64.86 | -40.00 | 36.88 | -40.00 | -7.70 | 235.95 | 27.14 | 247.06 | 0.4929 | -1277.3 | 999999 | |
| 0.00 | 0.55 | 0.00 | 0.31 | -10.66 | 235.78 | 26.97 | 241.51 | 0.5091 | -673.0 | -588.8 | |
| 0.00 | 1.82 | 0.00 | 1.04 | -10.65 | 235.32 | 26.52 | 241.13 | 0.5030 | -495.0 | -420.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.38 | 234.33 | 25.52 | 248.40 | 0.4624 | -792.0 | -693.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -5.88 | 234.17 | 25.36 | 249.30 | 0.4573 | -871.0 | -724.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -5.56 | 233.95 | 25.14 | 249.79 | 0.4525 | -785.0 | -709.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.43 | 233.60 | 24.80 | 249.81 | 0.4467 | -818.0 | -698.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -5.95 | 233.46 | 24.65 | 248.60 | 0.4474 | -769.0 | -576.9 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -5.45 | 233.40 | 24.60 | 249.60 | 0.4439 | -944.0 | -833.2 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -6.78 | 233.30 | 24.49 | 246.74 | 0.4499 | -821.0 | -788.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -6.50 | 233.25 | 24.44 | 247.28 | 0.4476 | -843.0 | -735.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -3.99 | 233.01 | 24.21 | 252.49 | 0.4307 | -673.0 | -612.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.48 | 233.00 | 24.19 | 245.03 | 0.4501 | -832.0 | -618.9 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -3.83 | 232.77 | 23.97 | 252.68 | 0.4263 | -898.0 | -750.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.66 | 232.77 | 23.97 | 244.46 | 0.4480 | -878.0 | -671.6 | |
| 0.00 | 3.00 | 0.00 | 1.66 | -8.10 | 232.73 | 23.93 | 243.54 | 0.4503 | -663.0 | -735.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.09 | 232.50 | 23.69 | 241.34 | 0.4540 | -801.0 | -723.3 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -8.97 | 231.45 | 22.64 | 240.49 | 0.4387 | -765.0 | -644.2 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -6.53 | 231.04 | 22.24 | 245.20 | 0.4159 | -928.0 | -809.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
