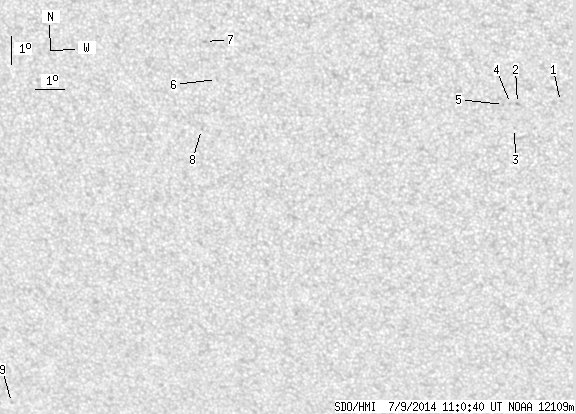

SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.47 | 0.00 | 4.82 | -22.64 | 196.91 | -11.90 | 158.21 | 0.4889 | 79.9 | 7.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.43 | 204.58 | -4.22 | 170.85 | 0.4326 | 581.0 | 390.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -21.50 | 203.17 | -5.64 | 167.90 | 0.4379 | 899.0 | 706.2 | |
| 0.00 | 0.55 | 0.00 | 0.30 | -22.35 | 203.03 | -5.77 | 168.05 | 0.4513 | 646.0 | 496.0 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -21.50 | 202.94 | -5.87 | 167.42 | 0.4387 | 695.0 | 698.0 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -21.54 | 202.71 | -6.10 | 166.96 | 0.4400 | 715.0 | 626.0 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.81 | 193.19 | -15.61 | 148.68 | 0.4859 | -764.0 | -675.4 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -19.55 | 192.96 | -15.85 | 146.79 | 0.4719 | -801.0 | -581.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.51 | 192.49 | -16.32 | 149.47 | 0.5130 | -756.0 | -602.1 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -32.47 | 183.47 | -25.34 | 148.34 | 0.6903 | -496.0 | -462.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
