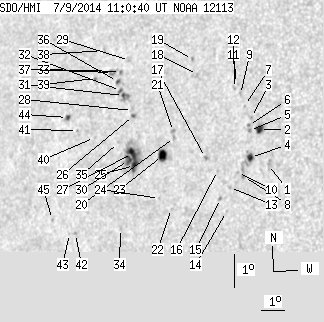

SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.80 | 131.56 | 25.23 | 90.08 | 9.14 | 165.21 | -43.59 | 80.67 | 0.6917 | -338.9 | -87.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.62 | 8.51 | 169.79 | -39.02 | 81.12 | 0.6324 | -825.0 | -687.5 | |
| 3.91 | 5.72 | 2.51 | 3.68 | 9.56 | 169.29 | -39.51 | 79.53 | 0.6403 | -915.5 | -708.6 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 9.92 | 168.92 | -39.88 | 79.04 | 0.6457 | -728.0 | -577.8 | |
| 3.27 | 12.54 | 2.11 | 8.10 | 8.69 | 169.05 | -39.76 | 80.92 | 0.6425 | -906.5 | -586.3 | |
| 0.00 | 2.00 | 0.00 | 1.29 | 9.51 | 168.90 | -39.91 | 79.66 | 0.6454 | -717.0 | -562.1 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 9.67 | 168.84 | -39.97 | 79.44 | 0.6464 | -599.0 | -556.8 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 10.27 | 168.59 | -40.22 | 78.55 | 0.6506 | -531.0 | -391.6 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 8.10 | 168.84 | -39.97 | 81.86 | 0.6447 | -736.0 | -638.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 10.60 | 168.37 | -40.44 | 78.08 | 0.6538 | -723.0 | -641.5 | |
| 0.00 | 0.82 | 0.00 | 0.53 | 8.21 | 168.58 | -40.22 | 81.71 | 0.6482 | -582.0 | -443.2 | |
| 0.00 | 0.55 | 0.00 | 0.36 | 10.93 | 168.15 | -40.65 | 77.62 | 0.6572 | -405.0 | -471.0 | |
| 0.00 | 1.64 | 0.00 | 1.07 | 10.77 | 168.10 | -40.71 | 77.86 | 0.6576 | -602.0 | -411.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 7.74 | 168.31 | -40.49 | 82.47 | 0.6513 | -672.0 | -541.9 | |
| 0.00 | 0.55 | 0.00 | 0.35 | 7.01 | 168.27 | -40.53 | 83.60 | 0.6513 | 582.0 | 462.3 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 7.39 | 167.99 | -40.82 | 83.03 | 0.6553 | -628.0 | -511.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 8.24 | 167.76 | -41.04 | 81.76 | 0.6589 | -443.0 | -284.3 | |
| 0.00 | 1.82 | 0.00 | 1.20 | 8.62 | 167.22 | -41.58 | 81.24 | 0.6662 | -774.0 | -515.3 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 11.14 | 166.50 | -42.31 | 77.59 | 0.6785 | -677.0 | -602.6 | |
| 0.00 | 1.18 | 0.00 | 0.80 | 11.59 | 166.20 | -42.60 | 76.98 | 0.6829 | -545.0 | -467.3 | |
| 0.00 | 1.82 | 0.00 | 1.23 | 9.17 | 165.85 | -42.96 | 80.57 | 0.6843 | 628.0 | 538.7 | |
| 0.00 | 1.73 | 0.00 | 1.17 | 9.35 | 165.78 | -43.03 | 80.31 | 0.6853 | 750.0 | 619.3 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 7.00 | 166.00 | -42.80 | 83.74 | 0.6807 | -575.0 | -507.4 | |
| 7.09 | 12.08 | 4.83 | 8.23 | 8.60 | 165.42 | -43.39 | 81.44 | 0.6891 | -633.5 | -190.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 7.28 | 165.47 | -43.34 | 83.36 | 0.6877 | -454.0 | -526.7 | |
| 5.18 | 37.52 | 3.60 | 26.12 | 8.24 | 164.27 | -44.54 | 82.05 | 0.7032 | -914.5 | -369.3 | |
| 0.55 | 1.91 | 0.38 | 1.33 | 9.77 | 163.99 | -44.82 | 79.92 | 0.7078 | 799.2 | 641.1 | |
| 7.54 | -25.00 | 5.25 | -25.00 | 8.61 | 164.13 | -44.68 | 81.55 | 0.7051 | -874.0 | 999999 | |
| 0.00 | 3.63 | 0.00 | 2.54 | 9.92 | 163.92 | -44.89 | 79.71 | 0.7088 | 384.0 | 505.2 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 11.44 | 163.50 | -45.31 | 77.63 | 0.7156 | 686.0 | 595.1 | |
| 4.36 | -25.00 | 3.04 | -25.00 | 8.38 | 163.99 | -44.82 | 81.87 | 0.7067 | -676.0 | 999999 | |
| 1.09 | 10.63 | 0.77 | 7.50 | 10.36 | 163.44 | -45.36 | 79.15 | 0.7150 | 926.6 | 686.0 | |
| 0.91 | -31.00 | 0.64 | -31.00 | 10.51 | 163.28 | -45.52 | 78.96 | 0.7171 | 607.7 | 999999 | |
| 0.36 | 1.64 | 0.26 | 1.16 | 11.09 | 163.17 | -45.64 | 78.17 | 0.7191 | 579.2 | 479.7 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 6.30 | 163.90 | -44.90 | 84.84 | 0.7068 | -140.0 | -160.4 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 8.91 | 163.47 | -45.34 | 81.17 | 0.7134 | -294.0 | -190.5 | |
| 1.09 | 2.36 | 0.77 | 1.68 | 10.77 | 163.10 | -45.71 | 78.61 | 0.7196 | 721.9 | 620.3 | |
| 0.00 | 4.36 | 0.00 | 3.12 | 11.04 | 162.82 | -45.99 | 78.28 | 0.7232 | 726.0 | 538.9 | |
| 0.00 | 1.91 | 0.00 | 1.38 | 11.70 | 162.32 | -46.48 | 77.44 | 0.7298 | 578.0 | 442.0 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 10.82 | 162.05 | -46.75 | 78.68 | 0.7320 | 546.0 | 504.9 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 9.02 | 162.38 | -46.42 | 81.12 | 0.7265 | 539.0 | 390.2 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 9.20 | 161.58 | -47.22 | 80.94 | 0.7360 | 724.0 | 656.8 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 6.05 | 161.94 | -46.87 | 85.22 | 0.7305 | -656.0 | -529.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 6.04 | 161.67 | -47.14 | 85.24 | 0.7337 | -498.0 | -481.7 | |
| 1.45 | 3.09 | 1.07 | 2.27 | 9.57 | 161.06 | -47.75 | 80.47 | 0.7424 | 450.2 | 334.7 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 6.43 | 160.85 | -47.96 | 84.72 | 0.7434 | -516.0 | -384.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
