SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.89 | 174.62 | 37.66 | 191.23 | -19.53 | 149.26 | -59.55 | 114.19 | 0.8922 | 385.0 | 28.4 | |
|
previous
or next observation for the same group /

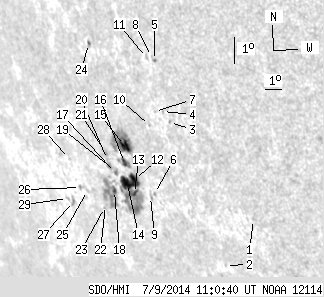

back to the solar disc SDO HMI 2014-07-09 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 1.16 | -20.74 | 156.28 | -52.52 | 117.76 | 0.8408 | 678.0 | 536.7 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -22.41 | 153.81 | -55.00 | 118.73 | 0.8656 | 359.0 | 309.7 | |
| 0.00 | 1.00 | 0.00 | 0.96 | -17.72 | 153.10 | -55.71 | 113.30 | 0.8589 | 571.0 | 536.1 | |
| 0.00 | 0.91 | 0.00 | 0.88 | -17.38 | 152.86 | -55.95 | 112.84 | 0.8600 | 510.0 | 448.5 | |
| 0.00 | 1.27 | 0.00 | 1.20 | -15.71 | 153.14 | -55.67 | 111.04 | 0.8537 | 657.0 | 582.9 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -20.17 | 150.91 | -57.90 | 115.35 | 0.8818 | 529.0 | 456.8 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -17.40 | 152.38 | -56.42 | 112.73 | 0.8639 | 341.0 | 285.0 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -15.59 | 153.02 | -55.78 | 110.87 | 0.8545 | 457.0 | 454.3 | |
| 0.00 | 1.73 | 0.00 | 1.82 | -20.29 | 150.59 | -58.22 | 115.39 | 0.8844 | 339.0 | 317.7 | |
| 0.00 | 0.73 | 0.00 | 0.72 | -17.89 | 151.85 | -56.95 | 113.11 | 0.8693 | -138.0 | -144.4 | |
| 0.00 | 1.82 | 0.00 | 1.74 | -15.64 | 152.72 | -56.09 | 110.84 | 0.8571 | 393.0 | 296.5 | |
| 6.36 | 65.32 | 6.81 | 71.22 | -19.77 | 149.90 | -58.91 | 114.62 | 0.8883 | 780.3 | 86.3 | |
| 2.09 | -12.00 | 2.26 | -12.00 | -20.25 | 149.60 | -59.20 | 115.06 | 0.8915 | 411.4 | 999999 | |
| 13.08 | -12.00 | 14.26 | -12.00 | -19.93 | 149.35 | -59.45 | 114.65 | 0.8926 | 476.3 | 999999 | |
| 7.63 | 37.34 | 8.08 | 39.68 | -18.65 | 149.92 | -58.88 | 113.41 | 0.8858 | 784.2 | 228.0 | |
| 2.63 | 8.36 | 2.83 | 8.99 | -19.23 | 149.59 | -59.22 | 113.95 | 0.8895 | 627.2 | 449.0 | |
| 0.73 | 2.54 | 0.80 | 2.81 | -19.60 | 148.78 | -60.03 | 114.13 | 0.8960 | 344.8 | 286.6 | |
| 1.73 | 31.07 | 1.95 | 35.51 | -20.22 | 148.32 | -60.49 | 114.68 | 0.9005 | 149.6 | -223.9 | |
| 0.00 | 2.82 | 0.00 | 3.14 | -19.42 | 148.50 | -60.31 | 113.86 | 0.8976 | -292.0 | -195.0 | |
| 0.00 | 1.09 | 0.00 | 1.21 | -19.19 | 148.51 | -60.29 | 113.62 | 0.8971 | -197.0 | -175.6 | |
| 0.00 | 1.64 | 0.00 | 1.81 | -18.99 | 148.57 | -60.24 | 113.42 | 0.8963 | -215.0 | -194.2 | |
| 0.00 | 1.18 | 0.00 | 1.38 | -20.78 | 147.33 | -61.48 | 115.01 | 0.9082 | -188.0 | -247.8 | |
| 0.00 | 0.73 | 0.00 | 0.86 | -20.85 | 147.21 | -61.60 | 115.06 | 0.9092 | -243.0 | -268.2 | |
| 0.64 | 2.63 | 0.67 | 2.76 | -15.38 | 149.37 | -59.44 | 109.67 | 0.8836 | -337.9 | -267.2 | |
| 0.00 | 1.18 | 0.00 | 1.43 | -20.34 | 146.38 | -62.42 | 114.30 | 0.9136 | -564.0 | -479.2 | |
| 0.00 | 2.27 | 0.00 | 2.78 | -20.27 | 145.94 | -62.87 | 114.11 | 0.9164 | -515.0 | -468.2 | |
| 0.00 | 3.18 | 0.00 | 4.05 | -20.78 | 145.03 | -63.77 | 114.44 | 0.9229 | -493.0 | -372.9 | |
| 0.00 | 1.00 | 0.00 | 1.22 | -19.32 | 145.82 | -62.98 | 113.08 | 0.9155 | -535.0 | -497.4 | |
| 0.00 | 1.18 | 0.00 | 1.52 | -20.71 | 144.64 | -64.16 | 114.27 | 0.9251 | -360.0 | -342.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
