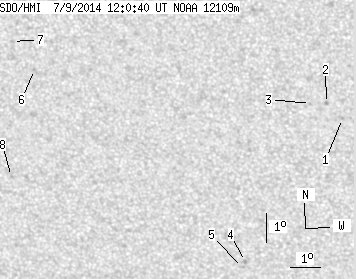

SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.09 | 0.00 | 5.71 | -23.20 | 198.73 | -9.52 | 161.58 | 0.4840 | -149.6 | -116.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.04 | 203.69 | -4.57 | 170.37 | 0.4430 | 732.0 | 542.6 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -21.53 | 203.18 | -5.08 | 169.08 | 0.4366 | 1018.0 | 775.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.54 | 202.65 | -5.60 | 167.99 | 0.4383 | 636.0 | 556.0 | |
| 0.00 | 1.82 | 0.00 | 1.06 | -27.02 | 200.15 | -8.10 | 166.20 | 0.5283 | -829.0 | -667.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -27.23 | 200.03 | -8.22 | 166.11 | 0.5318 | -556.0 | -433.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.49 | 193.56 | -14.70 | 149.82 | 0.4747 | -790.0 | -464.9 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.57 | 192.91 | -15.35 | 147.66 | 0.4680 | -830.0 | -618.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.15 | 192.35 | -15.90 | 151.77 | 0.5306 | -578.0 | -476.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
