SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.06 | 133.00 | 18.29 | 90.57 | 9.14 | 165.06 | -43.20 | 80.62 | 0.6865 | -233.4 | -163.0 | |
|
previous
or next observation for the same group /

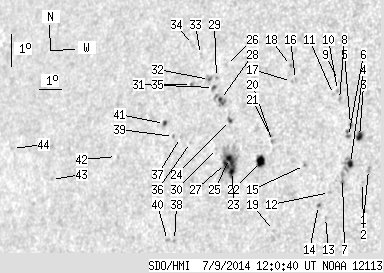

back to the solar disc SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.55 | 8.53 | 169.84 | -38.42 | 81.01 | 0.6244 | -944.0 | -705.2 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 8.12 | 169.65 | -38.61 | 81.68 | 0.6266 | -748.0 | -620.7 | |
| 3.54 | 5.45 | 2.26 | 3.48 | 9.52 | 169.35 | -38.90 | 79.50 | 0.6321 | -905.6 | -689.5 | |
| 3.09 | 10.63 | 1.98 | 6.80 | 8.68 | 169.10 | -39.15 | 80.86 | 0.6344 | -905.6 | -627.8 | |
| 0.36 | 1.36 | 0.23 | 0.87 | 9.88 | 168.95 | -39.31 | 79.01 | 0.6380 | -661.2 | -553.0 | |
| 0.45 | 4.09 | 0.29 | 2.62 | 9.51 | 168.92 | -39.34 | 79.59 | 0.6379 | -723.0 | -514.0 | |
| 0.00 | 4.72 | 0.00 | 3.03 | 8.21 | 168.84 | -39.42 | 81.63 | 0.6374 | -721.0 | -617.9 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 10.62 | 168.39 | -39.86 | 77.94 | 0.6465 | -766.0 | -614.8 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 11.20 | 168.26 | -40.00 | 77.08 | 0.6492 | -492.0 | -406.4 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 10.89 | 168.27 | -39.99 | 77.55 | 0.6485 | -623.0 | -535.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 10.77 | 168.12 | -40.13 | 77.77 | 0.6502 | -591.0 | -491.6 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 7.77 | 168.37 | -39.89 | 82.38 | 0.6433 | -662.0 | -547.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | 7.00 | 168.29 | -39.96 | 83.58 | 0.6438 | 638.0 | 423.5 | |
| 0.00 | 1.45 | 0.00 | 0.94 | 7.35 | 167.97 | -40.28 | 83.05 | 0.6482 | -702.0 | -516.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 8.55 | 167.26 | -40.99 | 81.29 | 0.6585 | -650.0 | -575.6 | |
| 0.00 | 1.64 | 0.00 | 1.09 | 11.16 | 166.49 | -41.76 | 77.47 | 0.6717 | -693.0 | -455.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 11.09 | 166.34 | -41.92 | 77.60 | 0.6736 | -514.0 | -477.4 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 11.58 | 166.21 | -42.05 | 76.90 | 0.6759 | -555.0 | -437.3 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 6.51 | 166.22 | -42.04 | 84.43 | 0.6707 | 583.0 | 473.1 | |
| 0.00 | 1.82 | 0.00 | 1.22 | 9.22 | 165.84 | -42.41 | 80.43 | 0.6774 | 721.0 | 608.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 9.40 | 165.73 | -42.53 | 80.18 | 0.6790 | 741.0 | 603.3 | |
| 6.90 | 10.17 | 4.66 | 6.87 | 8.59 | 165.43 | -42.83 | 81.40 | 0.6821 | -648.2 | -350.8 | |
| 3.00 | 38.42 | 2.06 | 26.52 | 8.24 | 164.28 | -43.97 | 82.02 | 0.6961 | -900.0 | -441.1 | |
| 1.18 | 3.27 | 0.82 | 2.27 | 9.79 | 163.96 | -44.30 | 79.83 | 0.7015 | 681.4 | 520.0 | |
| 3.09 | -23.00 | 2.13 | -23.00 | 8.63 | 164.10 | -44.16 | 81.48 | 0.6987 | -870.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 11.46 | 163.48 | -44.78 | 77.52 | 0.7093 | 723.0 | 650.5 | |
| 1.27 | -23.00 | 0.88 | -23.00 | 8.47 | 163.95 | -44.31 | 81.72 | 0.7004 | -617.4 | 999999 | |
| 1.00 | 8.90 | 0.70 | 6.23 | 10.41 | 163.42 | -44.84 | 79.01 | 0.7088 | 929.3 | 705.0 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 11.08 | 163.11 | -45.14 | 78.12 | 0.7132 | 671.0 | 620.4 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 8.91 | 163.49 | -44.76 | 81.13 | 0.7064 | -296.0 | -314.5 | |
| 0.91 | 2.73 | 0.64 | 1.92 | 10.76 | 163.04 | -45.21 | 78.56 | 0.7137 | 783.2 | 565.5 | |
| 0.64 | 3.72 | 0.45 | 2.64 | 11.00 | 162.82 | -45.44 | 78.26 | 0.7166 | 650.6 | 517.6 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 11.75 | 162.26 | -45.99 | 77.30 | 0.7241 | 481.0 | 367.0 | |
| 0.00 | 2.73 | 0.00 | 1.97 | 12.04 | 161.84 | -46.42 | 76.97 | 0.7295 | 160.0 | 240.9 | |
| 0.36 | 1.54 | 0.26 | 1.11 | 10.81 | 162.05 | -46.21 | 78.62 | 0.7255 | 559.8 | 479.5 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 9.04 | 162.33 | -45.93 | 81.05 | 0.7206 | 485.0 | 350.4 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 9.17 | 161.86 | -46.40 | 80.90 | 0.7263 | 548.0 | 416.4 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 6.02 | 162.02 | -46.23 | 85.25 | 0.7229 | -532.0 | -488.4 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 9.19 | 161.54 | -46.72 | 80.91 | 0.7301 | 595.0 | 564.4 | |
| 0.00 | 1.82 | 0.00 | 1.31 | 6.01 | 161.71 | -46.54 | 85.28 | 0.7266 | -531.0 | -499.0 | |
| 1.27 | 2.54 | 0.93 | 1.85 | 9.56 | 161.06 | -47.19 | 80.43 | 0.7359 | 453.4 | 309.7 | |
| 0.00 | 0.55 | 0.00 | 0.41 | 8.45 | 159.02 | -49.23 | 82.07 | 0.7586 | -383.0 | -444.3 | |
| 0.00 | 0.91 | 0.00 | 0.73 | 7.60 | 155.99 | -52.26 | 83.29 | 0.7915 | 545.0 | 483.6 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 8.44 | 153.81 | -54.45 | 82.30 | 0.8143 | 387.0 | 388.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
