SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.33 | 182.04 | 42.84 | 195.21 | -19.58 | 149.42 | -58.84 | 114.44 | 0.8872 | 427.7 | 33.4 | |
|
previous
or next observation for the same group /

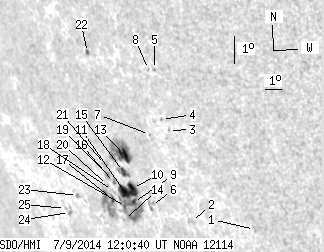

back to the solar disc SDO HMI 2014-07-09 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 2.28 | -20.77 | 156.31 | -51.94 | 118.01 | 0.8360 | 621.0 | 572.3 | |
| 0.00 | 3.36 | 0.00 | 3.28 | -20.70 | 152.86 | -55.39 | 116.71 | 0.8639 | 420.0 | 236.4 | |
| 0.00 | 1.00 | 0.00 | 0.95 | -17.69 | 153.08 | -55.18 | 113.43 | 0.8544 | 639.0 | 564.4 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -17.35 | 152.84 | -55.41 | 112.97 | 0.8555 | 545.0 | 509.8 | |
| 0.00 | 1.09 | 0.00 | 1.02 | -15.72 | 153.16 | -55.10 | 111.21 | 0.8489 | 618.0 | 575.2 | |
| 0.00 | 4.81 | 0.00 | 4.97 | -20.29 | 150.72 | -57.53 | 115.59 | 0.8793 | 362.0 | 381.7 | |
| 0.00 | 0.73 | 0.00 | 0.71 | -17.89 | 151.90 | -56.36 | 113.29 | 0.8646 | -232.0 | -230.1 | |
| 0.00 | 1.00 | 0.00 | 0.94 | -15.74 | 152.81 | -55.44 | 111.13 | 0.8519 | 471.0 | 392.2 | |
| 2.45 | 65.22 | 2.61 | 69.93 | -20.25 | 149.63 | -58.62 | 115.22 | 0.8873 | 482.4 | 97.7 | |
| 7.27 | -9.00 | 7.66 | -9.00 | -19.77 | 149.86 | -58.40 | 114.77 | 0.8846 | 745.3 | 999999 | |
| 12.26 | -9.00 | 13.16 | -9.00 | -19.94 | 149.32 | -58.94 | 114.79 | 0.8889 | 475.9 | 999999 | |
| 1.27 | -9.00 | 1.39 | -9.00 | -20.42 | 149.02 | -59.24 | 115.23 | 0.8921 | -251.4 | 999999 | |
| 9.54 | 39.69 | 9.93 | 41.55 | -18.65 | 150.00 | -58.25 | 113.58 | 0.8811 | 767.3 | 167.1 | |
| 0.00 | 1.18 | 0.00 | 1.31 | -20.87 | 148.66 | -59.59 | 115.62 | 0.8956 | -124.0 | -142.8 | |
| 3.36 | 8.81 | 3.55 | 9.32 | -19.23 | 149.61 | -58.64 | 114.11 | 0.8852 | 640.5 | 423.2 | |
| 0.91 | 2.27 | 0.99 | 2.47 | -19.64 | 148.80 | -59.46 | 114.32 | 0.8920 | 340.0 | 290.9 | |
| 2.27 | 30.34 | 2.52 | 34.10 | -20.23 | 148.30 | -59.96 | 114.83 | 0.8968 | 140.2 | -289.4 | |
| 0.00 | 1.73 | 0.00 | 1.90 | -19.92 | 148.50 | -59.76 | 114.55 | 0.8948 | 256.0 | 234.5 | |
| 0.00 | 4.63 | 0.00 | 5.07 | -19.39 | 148.50 | -59.76 | 113.98 | 0.8937 | -252.0 | -203.5 | |
| 0.00 | 1.27 | 0.00 | 1.41 | -19.77 | 148.27 | -59.99 | 114.32 | 0.8961 | 229.0 | 141.2 | |
| 0.00 | 4.18 | 0.00 | 4.55 | -19.06 | 148.57 | -59.69 | 113.64 | 0.8925 | -146.0 | -127.5 | |
| 1.00 | 2.27 | 1.03 | 2.34 | -15.38 | 149.38 | -58.87 | 109.81 | 0.8792 | -400.9 | -275.4 | |
| 0.00 | 1.73 | 0.00 | 2.08 | -20.24 | 145.92 | -62.34 | 114.21 | 0.9129 | -503.0 | -424.4 | |
| 0.00 | 2.73 | 0.00 | 3.42 | -20.86 | 144.88 | -63.38 | 114.62 | 0.9206 | -437.0 | -370.0 | |
| 0.00 | 0.73 | 0.00 | 0.92 | -20.74 | 144.67 | -63.58 | 114.44 | 0.9216 | -355.0 | -353.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
