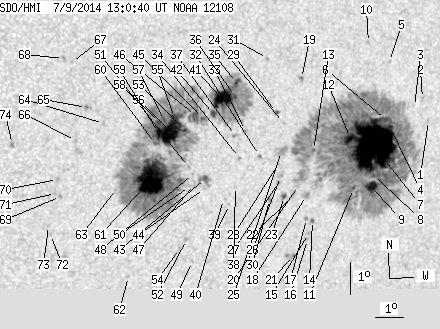

SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 317.96 | 1878.49 | 191.87 | 1132.03 | -6.90 | 240.82 | 33.12 | 252.01 | 0.5712 | 139.0 | 77.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.41 | -6.28 | 246.07 | 38.36 | 255.43 | 0.6396 | -160.0 | -111.1 | |
| 0.00 | 2.09 | 0.00 | 1.33 | -5.59 | 245.78 | 38.07 | 256.39 | 0.6337 | -383.0 | -185.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -5.83 | 245.48 | 37.78 | 255.92 | 0.6305 | 431.0 | 397.6 | |
| 2.27 | 1002.70 | 1.43 | 625.17 | -6.44 | 244.60 | 36.90 | 254.63 | 0.6210 | 776.1 | 418.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -4.40 | 244.42 | 36.72 | 257.80 | 0.6121 | -47.0 | -139.8 | |
| 2.63 | -4.00 | 1.65 | -4.00 | -6.18 | 244.39 | 36.69 | 254.95 | 0.6173 | 685.3 | 999999 | |
| 143.50 | -4.00 | 89.95 | -4.00 | -6.97 | 244.00 | 36.29 | 253.54 | 0.6149 | 1344.3 | 999999 | |
| 1.09 | -4.00 | 0.69 | -4.00 | -7.91 | 244.09 | 36.38 | 252.12 | 0.6196 | 611.8 | 999999 | |
| 9.81 | -4.00 | 6.18 | -4.00 | -8.25 | 244.05 | 36.34 | 251.58 | 0.6204 | 937.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -3.78 | 243.59 | 35.89 | 258.53 | 0.5990 | 638.0 | 469.7 | |
| 1.18 | -4.00 | 0.74 | -4.00 | -8.28 | 243.36 | 35.66 | 251.20 | 0.6116 | 988.2 | 999999 | |
| 6.99 | -4.00 | 4.33 | -4.00 | -6.72 | 243.10 | 35.40 | 253.56 | 0.6020 | 1450.0 | 999999 | |
| 0.91 | -4.00 | 0.55 | -4.00 | -7.04 | 241.74 | 34.04 | 252.41 | 0.5850 | 1117.2 | 999999 | |
| 0.73 | 2.00 | 0.45 | 1.23 | -9.22 | 241.92 | 34.21 | 248.97 | 0.5968 | 780.2 | 630.1 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -9.63 | 241.81 | 34.11 | 248.27 | 0.5973 | 715.0 | 616.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -9.81 | 241.80 | 34.09 | 247.97 | 0.5980 | 739.0 | 669.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -9.15 | 241.69 | 33.98 | 248.95 | 0.5934 | 833.0 | 734.1 | |
| 0.00 | 4.63 | 0.00 | 2.83 | -8.43 | 241.61 | 33.91 | 250.07 | 0.5891 | 925.0 | 780.5 | |
| 0.00 | 2.36 | 0.00 | 1.42 | -4.79 | 241.15 | 33.44 | 255.91 | 0.5684 | -759.0 | -621.1 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -8.11 | 241.28 | 33.58 | 250.42 | 0.5833 | 301.0 | 331.2 | |
| 0.36 | 5.99 | 0.22 | 3.68 | -10.30 | 241.33 | 33.63 | 246.93 | 0.5944 | 862.5 | 649.5 | |
| 0.00 | 2.82 | 0.00 | 1.71 | -8.41 | 241.13 | 33.42 | 249.84 | 0.5826 | 138.0 | 130.4 | |
| 1.18 | 2.63 | 0.72 | 1.60 | -8.43 | 240.80 | 33.09 | 249.62 | 0.5783 | -755.2 | -589.1 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -6.13 | 240.57 | 32.87 | 253.36 | 0.5653 | 453.0 | 414.8 | |
| 0.00 | 9.90 | 0.00 | 5.95 | -7.03 | 240.56 | 32.86 | 251.84 | 0.5689 | 368.0 | 320.0 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -7.80 | 240.59 | 32.89 | 250.55 | 0.5727 | 557.0 | 521.7 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -7.99 | 240.53 | 32.83 | 250.21 | 0.5727 | 796.0 | 734.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.39 | 240.48 | 32.78 | 251.17 | 0.5694 | 573.0 | 509.3 | |
| 0.91 | 2.18 | 0.54 | 1.30 | -5.81 | 240.29 | 32.59 | 253.78 | 0.5602 | -635.7 | -439.2 | |
| 0.00 | 2.54 | 0.00 | 1.53 | -8.51 | 240.25 | 32.55 | 249.19 | 0.5713 | 947.0 | 762.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -4.13 | 239.88 | 32.17 | 256.54 | 0.5482 | 873.0 | 748.5 | |
| 0.36 | 1.18 | 0.22 | 0.70 | -7.12 | 239.77 | 32.06 | 251.26 | 0.5584 | -559.0 | -479.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -6.33 | 239.20 | 31.50 | 252.33 | 0.5471 | -619.0 | -462.0 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -7.16 | 239.05 | 31.34 | 250.79 | 0.5486 | 785.0 | 607.5 | |
| 1.09 | 147.95 | 0.64 | 86.63 | -4.83 | 238.79 | 31.09 | 254.79 | 0.5353 | 876.6 | -69.9 | |
| 1.18 | -35.00 | 0.69 | -35.00 | -5.26 | 238.78 | 31.08 | 254.01 | 0.5368 | -613.1 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.44 | -6.47 | 238.85 | 31.15 | 251.89 | 0.5429 | -620.0 | -484.9 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -8.05 | 238.98 | 31.27 | 249.20 | 0.5519 | -500.0 | -345.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -8.61 | 238.81 | 31.10 | 248.15 | 0.5524 | -432.0 | -331.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -8.44 | 238.58 | 30.87 | 248.28 | 0.5484 | -142.0 | -236.0 | |
| 23.07 | -35.00 | 13.46 | -35.00 | -5.31 | 238.32 | 30.61 | 253.69 | 0.5304 | -1116.1 | 999999 | |
| 3.27 | -35.00 | 1.91 | -35.00 | -5.76 | 238.02 | 30.32 | 252.71 | 0.5281 | -906.4 | 999999 | |
| 1.82 | 10.08 | 1.06 | 5.90 | -7.77 | 237.88 | 30.17 | 249.02 | 0.5354 | -717.5 | -497.1 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.08 | 237.87 | 30.16 | 248.47 | 0.5368 | -472.0 | -308.4 | |
| 1.45 | 626.23 | 0.84 | 359.91 | -5.90 | 237.68 | 29.97 | 252.26 | 0.5238 | -804.8 | -472.8 | |
| 5.81 | -45.00 | 3.36 | -45.00 | -5.80 | 237.39 | 29.68 | 252.28 | 0.5192 | -848.2 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.38 | -7.94 | 237.50 | 29.79 | 248.47 | 0.5311 | 62.0 | -2.3 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -7.63 | 237.40 | 29.70 | 248.97 | 0.5282 | -459.0 | -404.1 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -10.35 | 237.65 | 29.94 | 244.41 | 0.5465 | -676.0 | -536.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -8.00 | 237.33 | 29.62 | 248.26 | 0.5290 | -353.0 | -229.7 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -7.37 | 237.24 | 29.54 | 249.32 | 0.5246 | -438.0 | -379.2 | |
| 0.00 | 2.36 | 0.00 | 1.39 | -9.65 | 237.36 | 29.66 | 245.40 | 0.5386 | -797.0 | -578.5 | |
| 1.63 | -45.00 | 0.94 | -45.00 | -6.22 | 237.03 | 29.32 | 251.29 | 0.5160 | -664.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -9.93 | 237.14 | 29.44 | 244.76 | 0.5373 | -668.0 | -518.5 | |
| 5.00 | -45.00 | 2.87 | -45.00 | -5.83 | 236.65 | 28.95 | 251.78 | 0.5089 | -1019.4 | 999999 | |
| 33.60 | -45.00 | 19.32 | -45.00 | -6.26 | 236.54 | 28.83 | 250.91 | 0.5093 | -1104.7 | 999999 | |
| 2.36 | -45.00 | 1.35 | -45.00 | -5.92 | 236.31 | 28.60 | 251.42 | 0.5043 | -965.9 | 999999 | |
| 2.54 | -45.00 | 1.45 | -45.00 | -5.97 | 236.13 | 28.43 | 251.21 | 0.5021 | -1114.5 | 999999 | |
| 6.09 | -45.00 | 3.48 | -45.00 | -6.28 | 236.12 | 28.41 | 250.61 | 0.5034 | -1469.5 | 999999 | |
| 0.73 | -45.00 | 0.42 | -45.00 | -6.62 | 236.03 | 28.33 | 249.92 | 0.5038 | -980.4 | 999999 | |
| 56.40 | -45.00 | 32.41 | -45.00 | -7.73 | 235.93 | 28.23 | 247.78 | 0.5083 | -1296.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -10.75 | 235.42 | 27.72 | 241.99 | 0.5196 | -761.0 | -621.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -7.97 | 234.77 | 27.06 | 246.47 | 0.4934 | -150.0 | -156.8 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -5.94 | 234.20 | 26.49 | 249.99 | 0.4741 | -606.0 | -574.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.43 | 233.59 | 25.89 | 250.60 | 0.4627 | -1071.0 | -947.4 | |
| 0.00 | 2.09 | 0.00 | 1.17 | -6.44 | 233.27 | 25.56 | 248.30 | 0.4633 | -752.0 | -582.9 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -4.03 | 233.03 | 25.32 | 253.16 | 0.4476 | -690.0 | -567.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -3.89 | 232.75 | 25.05 | 253.27 | 0.4429 | -730.0 | -680.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -8.16 | 232.86 | 25.15 | 244.53 | 0.4679 | -813.0 | -682.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -7.63 | 232.72 | 25.02 | 245.46 | 0.4626 | -602.0 | -535.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.07 | 232.68 | 24.98 | 244.57 | 0.4648 | -913.0 | -766.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.34 | 232.60 | 24.90 | 242.03 | 0.4723 | -754.0 | -605.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -9.06 | 232.51 | 24.81 | 242.49 | 0.4691 | -601.0 | -546.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -6.50 | 231.14 | 23.44 | 246.40 | 0.4331 | -931.0 | -791.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
