SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.93 | 1614.22 | 141.98 | 838.53 | -7.68 | 220.82 | 13.11 | 228.49 | 0.3007 | 824.6 | 309.7 | |
|
previous
or next observation for the same group /

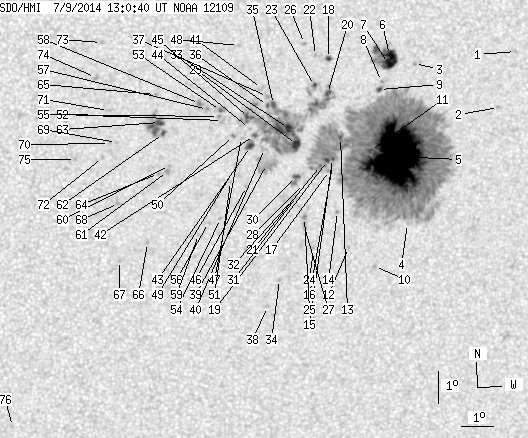

back to the solar disc SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.77 | -4.76 | 225.61 | 17.90 | 244.69 | 0.3404 | 773.0 | 592.4 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -6.48 | 225.11 | 17.41 | 239.56 | 0.3463 | 893.0 | 691.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.06 | 222.39 | 14.69 | 239.10 | 0.2957 | -876.0 | -674.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.04 | 222.34 | 14.64 | 226.48 | 0.3446 | -53.0 | -65.0 | |
| 205.35 | 1171.90 | 107.21 | 611.50 | -7.94 | 221.91 | 14.20 | 230.45 | 0.3165 | 1649.2 | 488.2 | |
| 11.81 | 45.41 | 6.09 | 23.43 | -4.77 | 221.60 | 13.90 | 238.54 | 0.2818 | 1239.3 | 640.9 | |
| 11.17 | -6.00 | 5.77 | -6.00 | -5.05 | 221.57 | 13.87 | 237.66 | 0.2839 | 1084.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.60 | 221.37 | 13.66 | 235.63 | 0.2860 | 705.0 | 567.9 | |
| 1.45 | 2.82 | 0.75 | 1.46 | -5.85 | 221.31 | 13.60 | 234.81 | 0.2876 | 518.4 | 286.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -11.37 | 221.35 | 13.64 | 221.74 | 0.3488 | -781.0 | -619.5 | |
| 1.91 | -5.00 | 0.99 | -5.00 | -7.73 | 221.08 | 13.37 | 229.25 | 0.3038 | 1289.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.76 | 220.49 | 12.78 | 221.12 | 0.3320 | -737.0 | -562.7 | |
| 1.73 | -5.00 | 0.89 | -5.00 | -7.32 | 220.12 | 12.41 | 228.22 | 0.2872 | 963.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.62 | 220.10 | 12.39 | 222.63 | 0.3138 | 899.0 | 731.9 | |
| 1.18 | -5.00 | 0.61 | -5.00 | -7.96 | 219.88 | 12.18 | 226.01 | 0.2917 | 1316.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.18 | 219.89 | 12.19 | 225.49 | 0.2943 | 877.0 | 722.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -8.34 | 219.80 | 12.10 | 224.90 | 0.2950 | 890.0 | 741.5 | |
| 1.82 | 3.18 | 0.93 | 1.63 | -4.87 | 219.69 | 11.98 | 234.33 | 0.2558 | -927.3 | -634.3 | |
| 2.18 | -5.00 | 1.13 | -5.00 | -8.02 | 219.73 | 12.02 | 225.50 | 0.2905 | 1253.2 | 999999 | |
| 2.36 | 228.97 | 1.21 | 117.44 | -5.95 | 219.68 | 11.97 | 231.00 | 0.2667 | -938.1 | -9.3 | |
| 0.64 | -5.00 | 0.33 | -5.00 | -8.18 | 219.51 | 11.81 | 224.60 | 0.2897 | 1197.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -4.77 | 219.28 | 11.57 | 233.70 | 0.2492 | -940.0 | -638.2 | |
| 1.18 | 8.36 | 0.61 | 4.28 | -5.69 | 219.26 | 11.56 | 230.77 | 0.2586 | -940.2 | -631.2 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -10.77 | 219.38 | 11.67 | 218.54 | 0.3204 | -687.0 | -577.2 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -9.79 | 219.06 | 11.35 | 219.78 | 0.3045 | -380.0 | -370.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -4.39 | 218.93 | 11.23 | 234.11 | 0.2407 | -879.0 | -691.7 | |
| 0.00 | 3.45 | 0.00 | 1.80 | -10.08 | 219.07 | 11.36 | 219.21 | 0.3083 | -15.0 | -220.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.73 | 219.03 | 11.32 | 222.07 | 0.2908 | 907.0 | 693.2 | |
| 6.72 | -20.00 | 3.46 | -20.00 | -7.51 | 218.74 | 11.04 | 224.34 | 0.2727 | 1192.9 | 999999 | |
| 1.82 | 7.54 | 0.94 | 3.90 | -8.51 | 218.77 | 11.06 | 221.94 | 0.2852 | 1046.8 | 881.6 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -9.13 | 218.79 | 11.08 | 220.54 | 0.2932 | -491.0 | -414.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.23 | 218.66 | 10.96 | 220.02 | 0.2931 | -771.0 | -711.0 | |
| 4.81 | -20.00 | 2.47 | -20.00 | -7.01 | 218.48 | 10.77 | 224.98 | 0.2637 | 1291.7 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.74 | 218.34 | 10.63 | 214.19 | 0.3230 | -932.0 | -720.5 | |
| 2.27 | -20.00 | 1.16 | -20.00 | -6.26 | 218.00 | 10.29 | 225.77 | 0.2490 | -743.0 | 999999 | |
| 0.82 | -20.00 | 0.42 | -20.00 | -6.29 | 217.81 | 10.10 | 225.16 | 0.2470 | -853.8 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.44 | -6.01 | 217.80 | 10.10 | 225.96 | 0.2437 | -849.0 | -652.0 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -12.59 | 217.99 | 10.29 | 211.87 | 0.3315 | -782.0 | -630.8 | |
| 0.00 | 24.79 | 0.00 | 12.75 | -8.12 | 217.82 | 10.11 | 220.32 | 0.2698 | -122.0 | -116.6 | |
| 0.00 | 3.45 | 0.00 | 1.77 | -7.62 | 217.74 | 10.04 | 221.35 | 0.2627 | -505.0 | -543.9 | |
| 0.00 | 3.81 | 0.00 | 1.95 | -5.76 | 217.61 | 9.91 | 226.17 | 0.2384 | -608.0 | -557.1 | |
| 0.91 | -20.00 | 0.47 | -20.00 | -7.22 | 217.42 | 9.72 | 221.49 | 0.2539 | -841.7 | 999999 | |
| 3.54 | -20.00 | 1.82 | -20.00 | -7.56 | 217.30 | 9.60 | 220.26 | 0.2570 | -958.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.00 | 217.26 | 9.56 | 221.60 | 0.2493 | -584.0 | -501.9 | |
| 3.81 | -20.00 | 1.95 | -20.00 | -6.65 | 217.22 | 9.52 | 222.42 | 0.2446 | -1051.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.80 | 217.21 | 9.50 | 217.01 | 0.2723 | -732.0 | -551.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.27 | 217.02 | 9.31 | 220.13 | 0.2502 | -657.0 | -592.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.43 | 216.88 | 9.18 | 228.33 | 0.2138 | -854.0 | -696.1 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -8.23 | 216.82 | 9.12 | 217.16 | 0.2608 | -594.0 | -559.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.21 | 216.77 | 9.06 | 219.53 | 0.2466 | -924.0 | -778.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.64 | 216.70 | 9.00 | 215.88 | 0.2651 | -701.0 | -624.6 | |
| 0.00 | 3.36 | 0.00 | 1.71 | -6.74 | 216.42 | 8.71 | 219.68 | 0.2367 | -671.0 | -533.2 | |
| 0.73 | 3.27 | 0.37 | 1.66 | -6.43 | 216.35 | 8.65 | 220.32 | 0.2319 | -1060.5 | -848.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.79 | 216.42 | 8.72 | 212.60 | 0.2784 | -779.0 | -585.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.61 | 216.29 | 8.59 | 219.61 | 0.2337 | -1027.0 | -838.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | -9.91 | 216.05 | 8.34 | 211.24 | 0.2768 | -650.0 | -452.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | -6.39 | 215.95 | 8.24 | 219.07 | 0.2271 | -1042.0 | -886.9 | |
| 0.00 | 4.09 | 0.00 | 2.08 | -6.20 | 215.70 | 7.99 | 218.74 | 0.2219 | -1172.0 | -946.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.29 | 215.74 | 8.04 | 209.63 | 0.2796 | -438.0 | -345.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.12 | 214.80 | 7.09 | 210.77 | 0.2400 | -1066.0 | -841.8 | |
| 0.00 | 2.27 | 0.00 | 1.16 | -8.31 | 214.74 | 7.03 | 210.17 | 0.2422 | -1167.0 | -940.7 | |
| 1.45 | 31.52 | 0.74 | 16.00 | -7.12 | 214.60 | 6.89 | 212.31 | 0.2237 | -913.9 | -889.7 | |
| 3.27 | -62.00 | 1.66 | -62.00 | -6.78 | 214.47 | 6.76 | 212.67 | 0.2176 | -1180.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.36 | 214.46 | 6.76 | 209.05 | 0.2407 | -886.0 | -823.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.91 | 214.33 | 6.63 | 214.43 | 0.2040 | -902.0 | -779.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -10.52 | 214.16 | 6.45 | 204.17 | 0.2711 | -792.0 | -655.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -11.08 | 213.29 | 5.59 | 200.49 | 0.2743 | -608.0 | -566.8 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -9.29 | 213.23 | 5.53 | 202.87 | 0.2458 | -915.0 | -721.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.39 | 213.15 | 5.44 | 205.98 | 0.2157 | -830.0 | -620.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.42 | 212.93 | 5.23 | 205.02 | 0.2145 | -804.0 | -689.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.40 | 212.89 | 5.19 | 207.04 | 0.1985 | -881.0 | -664.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.85 | 212.72 | 5.02 | 203.31 | 0.2198 | -937.0 | -788.1 | |
| 0.00 | 1.91 | 0.00 | 0.96 | -4.30 | 212.66 | 4.96 | 211.64 | 0.1650 | -39.0 | -73.5 | |
| 0.00 | 2.82 | 0.00 | 1.42 | -5.37 | 212.48 | 4.78 | 207.63 | 0.1796 | -754.0 | -730.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -7.91 | 211.89 | 4.18 | 199.68 | 0.2155 | -810.0 | -598.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.37 | 210.01 | 2.30 | 186.40 | 0.3477 | -730.0 | -586.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
