SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.32 | 131.32 | 25.12 | 88.27 | 9.07 | 165.35 | -42.36 | 80.62 | 0.6759 | -341.1 | -158.4 | |
|
previous
or next observation for the same group /

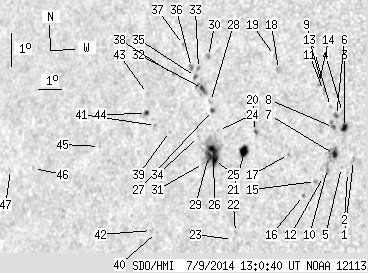

back to the solar disc SDO HMI 2014-07-09 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.60 | 8.49 | 169.88 | -37.82 | 80.99 | 0.6163 | -866.0 | -685.7 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 8.12 | 169.69 | -38.01 | 81.62 | 0.6185 | -727.0 | -619.6 | |
| 3.36 | 5.09 | 2.13 | 3.22 | 9.49 | 169.41 | -38.30 | 79.46 | 0.6240 | -892.7 | -669.8 | |
| 0.00 | 1.54 | 0.00 | 0.98 | 9.94 | 169.27 | -38.44 | 78.76 | 0.6265 | -625.0 | -509.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 8.26 | 169.44 | -38.26 | 81.42 | 0.6220 | -633.0 | -510.8 | |
| 0.64 | 2.45 | 0.40 | 1.56 | 9.84 | 169.04 | -38.66 | 78.96 | 0.6294 | -665.7 | -498.5 | |
| 2.91 | 11.90 | 1.84 | 7.55 | 8.65 | 169.12 | -38.59 | 80.84 | 0.6268 | -930.9 | -630.8 | |
| 0.54 | 4.27 | 0.35 | 2.72 | 9.47 | 168.98 | -38.73 | 79.56 | 0.6298 | -641.5 | -515.0 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 10.11 | 168.77 | -38.94 | 78.58 | 0.6334 | -659.0 | -498.9 | |
| 0.00 | 3.63 | 0.00 | 2.31 | 8.21 | 168.89 | -38.81 | 81.57 | 0.6293 | -735.0 | -644.9 | |
| 0.00 | 2.18 | 0.00 | 1.40 | 10.58 | 168.42 | -39.29 | 77.90 | 0.6388 | -634.0 | -594.7 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 7.96 | 168.76 | -38.94 | 81.98 | 0.6309 | -419.0 | -404.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 10.83 | 168.30 | -39.40 | 77.54 | 0.6408 | -622.0 | -479.1 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 10.73 | 168.19 | -39.51 | 77.72 | 0.6420 | -640.0 | -457.2 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 7.79 | 168.46 | -39.24 | 82.27 | 0.6347 | -669.0 | -543.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 7.35 | 168.03 | -39.67 | 83.01 | 0.6401 | -544.0 | -454.5 | |
| 0.00 | 0.64 | 0.00 | 0.41 | 8.57 | 167.29 | -40.42 | 81.19 | 0.6511 | -630.0 | -518.1 | |
| 0.00 | 2.63 | 0.00 | 1.74 | 11.15 | 166.49 | -41.21 | 77.38 | 0.6647 | -802.0 | -551.7 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 11.58 | 166.25 | -41.46 | 76.80 | 0.6685 | -705.0 | -504.2 | |
| 0.54 | 3.27 | 0.36 | 2.18 | 9.22 | 165.84 | -41.86 | 80.38 | 0.6704 | 626.2 | 579.7 | |
| 6.90 | 9.35 | 4.62 | 6.26 | 8.59 | 165.47 | -42.23 | 81.35 | 0.6745 | -647.9 | -361.0 | |
| 0.00 | 1.09 | 0.00 | 0.73 | 6.10 | 165.38 | -42.32 | 85.05 | 0.6742 | -617.0 | -423.1 | |
| 0.00 | 0.45 | 0.00 | 0.30 | 5.88 | 165.28 | -42.42 | 85.38 | 0.6755 | -520.0 | -504.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 9.18 | 164.29 | -43.42 | 80.61 | 0.6900 | 103.0 | 207.0 | |
| 4.45 | 35.97 | 3.04 | 24.60 | 8.26 | 164.25 | -43.45 | 81.95 | 0.6897 | -938.4 | -254.2 | |
| 7.90 | -25.00 | 5.40 | -25.00 | 8.56 | 164.17 | -43.54 | 81.52 | 0.6910 | -876.9 | 999999 | |
| 0.73 | 2.09 | 0.50 | 1.44 | 9.78 | 163.94 | -43.77 | 79.78 | 0.6950 | 693.5 | 591.8 | |
| 0.00 | 1.73 | 0.00 | 1.19 | 10.05 | 163.80 | -43.90 | 79.41 | 0.6969 | 558.0 | 543.8 | |
| 5.27 | -25.00 | 3.61 | -25.00 | 8.37 | 163.98 | -43.73 | 81.81 | 0.6932 | -679.6 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 11.43 | 163.47 | -44.24 | 77.49 | 0.7027 | 717.0 | 587.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 8.15 | 163.80 | -43.91 | 82.15 | 0.6953 | -93.0 | -89.1 | |
| 2.18 | 8.26 | 1.51 | 5.74 | 10.43 | 163.39 | -44.31 | 78.91 | 0.7024 | 917.3 | 682.9 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 11.04 | 163.11 | -44.60 | 78.10 | 0.7066 | 629.0 | 569.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 8.96 | 163.46 | -44.24 | 81.01 | 0.7000 | -307.0 | -309.3 | |
| 0.54 | 2.09 | 0.38 | 1.46 | 10.79 | 163.02 | -44.68 | 78.46 | 0.7073 | 795.5 | 599.8 | |
| 0.00 | 2.54 | 0.00 | 1.78 | 11.06 | 162.79 | -44.91 | 78.12 | 0.7104 | 826.0 | 579.4 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 11.74 | 162.30 | -45.40 | 77.22 | 0.7171 | 464.0 | 418.0 | |
| 0.00 | 1.09 | 0.00 | 0.77 | 10.81 | 162.05 | -45.66 | 78.56 | 0.7190 | 603.0 | 554.3 | |
| 0.00 | 0.82 | 0.00 | 0.58 | 9.06 | 162.18 | -45.53 | 80.99 | 0.7158 | 410.0 | 292.7 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 5.95 | 162.02 | -45.69 | 85.34 | 0.7163 | -678.0 | -554.0 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 9.21 | 161.53 | -46.17 | 80.83 | 0.7236 | 579.0 | 595.5 | |
| 0.00 | 2.09 | 0.00 | 1.48 | 6.00 | 161.79 | -45.91 | 85.27 | 0.7190 | -608.0 | -439.8 | |
| 0.00 | 1.09 | 0.00 | 0.79 | 10.17 | 161.00 | -46.71 | 79.56 | 0.7308 | -495.0 | -400.1 | |
| 1.36 | 2.45 | 0.98 | 1.77 | 9.56 | 161.07 | -46.64 | 80.39 | 0.7294 | 324.1 | 354.9 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 8.45 | 159.09 | -48.61 | 82.03 | 0.7516 | -586.0 | -420.8 | |
| 0.00 | 1.18 | 0.00 | 0.94 | 7.63 | 156.05 | -51.66 | 83.24 | 0.7851 | 549.0 | 449.2 | |
| 0.00 | 0.45 | 0.00 | 0.37 | 7.54 | 154.90 | -52.80 | 83.38 | 0.7972 | 258.0 | 240.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
