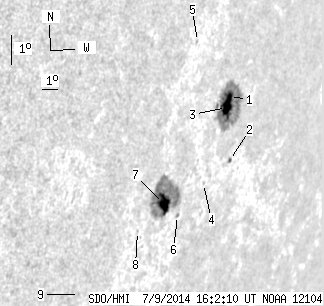

SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.96 | 176.41 | 34.37 | 196.40 | -11.95 | 267.91 | 61.88 | 254.62 | 0.8966 | -29.5 | -93.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 87.53 | 4.41 | 101.72 | -10.32 | 269.39 | 63.36 | 256.71 | 0.9053 | 592.5 | 106.3 | |
| 0.82 | 2.09 | 0.99 | 2.52 | -12.38 | 270.23 | 64.20 | 254.62 | 0.9138 | 498.8 | 391.3 | |
| 10.53 | -1.00 | 12.18 | -1.00 | -10.66 | 269.30 | 63.27 | 256.32 | 0.9051 | 708.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.94 | -13.02 | 268.68 | 62.65 | 253.64 | 0.9037 | 146.0 | 121.9 | |
| 0.00 | 0.91 | 0.00 | 0.95 | -8.45 | 266.68 | 60.65 | 258.31 | 0.8823 | 622.0 | 507.0 | |
| 0.00 | 1.63 | 0.00 | 1.80 | -13.95 | 267.36 | 61.33 | 252.34 | 0.8954 | -280.0 | -176.1 | |
| 15.80 | 82.80 | 16.79 | 87.84 | -13.50 | 266.25 | 60.22 | 252.59 | 0.8864 | -759.1 | -349.7 | |
| 0.00 | 0.27 | 0.00 | 0.28 | -14.32 | 264.97 | 58.94 | 251.39 | 0.8778 | -452.0 | -451.0 | |
| 0.00 | 0.36 | 0.00 | 0.35 | -16.18 | 262.33 | 56.30 | 248.60 | 0.8601 | -193.0 | -186.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
