SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.77 | 172.91 | 30.14 | 151.80 | 14.70 | 261.31 | 55.28 | 285.32 | 0.8254 | -393.7 | -174.8 | |
|
previous
or next observation for the same group /

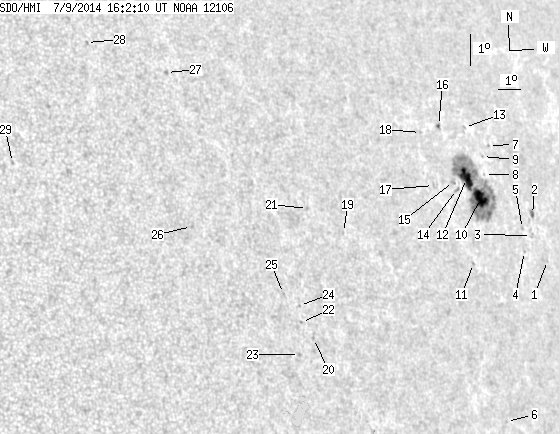

back to the solar disc SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.97 | 12.38 | 265.42 | 59.39 | 282.17 | 0.8620 | -368.0 | -297.3 | |
| 1.18 | 2.91 | 1.14 | 2.80 | 13.84 | 265.07 | 59.04 | 283.89 | 0.8597 | -480.9 | -379.5 | |
| 0.00 | 1.63 | 0.00 | 1.56 | 13.20 | 264.75 | 58.72 | 283.17 | 0.8566 | -502.0 | -410.8 | |
| 0.00 | 0.73 | 0.00 | 0.68 | 12.73 | 264.15 | 58.12 | 282.67 | 0.8510 | -586.0 | -526.5 | |
| 0.00 | 1.18 | 0.00 | 1.11 | 13.44 | 264.30 | 58.27 | 283.49 | 0.8528 | -412.0 | -329.7 | |
| 0.00 | 1.09 | 0.00 | 0.95 | 7.62 | 261.69 | 55.66 | 276.66 | 0.8261 | 71.0 | 112.4 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 16.10 | 263.40 | 57.37 | 286.69 | 0.8468 | 256.0 | 180.3 | |
| 0.00 | 0.91 | 0.00 | 0.82 | 15.22 | 262.78 | 56.75 | 285.72 | 0.8404 | -230.0 | -149.4 | |
| 0.00 | 0.73 | 0.00 | 0.66 | 15.78 | 262.90 | 56.87 | 286.37 | 0.8421 | -498.0 | -426.9 | |
| 16.52 | 135.65 | 14.79 | 121.05 | 14.49 | 262.26 | 56.23 | 284.92 | 0.8350 | -745.0 | -203.8 | |
| 0.00 | 1.09 | 0.00 | 0.95 | 12.52 | 261.16 | 55.13 | 282.65 | 0.8230 | -682.0 | -537.6 | |
| 15.53 | -10.00 | 13.74 | -10.00 | 15.15 | 261.72 | 55.69 | 285.76 | 0.8306 | -795.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.82 | 16.72 | 262.28 | 56.25 | 287.58 | 0.8374 | -553.0 | -404.8 | |
| 0.00 | 2.45 | 0.00 | 2.13 | 14.84 | 261.04 | 55.01 | 285.47 | 0.8239 | -768.0 | -652.8 | |
| 0.00 | 3.00 | 0.00 | 2.60 | 15.09 | 260.97 | 54.94 | 285.79 | 0.8235 | -730.0 | -582.8 | |
| 0.54 | 1.91 | 0.47 | 1.66 | 16.86 | 260.87 | 54.84 | 287.94 | 0.8245 | 197.3 | 101.1 | |
| 0.00 | 1.73 | 0.00 | 1.46 | 15.03 | 259.86 | 53.83 | 285.85 | 0.8126 | -427.0 | -449.1 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 16.70 | 259.81 | 53.78 | 287.90 | 0.8142 | 304.0 | 271.0 | |
| 0.00 | 0.73 | 0.00 | 0.55 | 13.81 | 254.90 | 48.87 | 285.02 | 0.7596 | 105.0 | 163.5 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 10.63 | 252.73 | 46.70 | 281.06 | 0.7311 | 432.0 | 354.7 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 14.63 | 253.43 | 47.40 | 286.36 | 0.7446 | 518.0 | 424.0 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 11.14 | 252.29 | 46.26 | 281.82 | 0.7265 | 507.0 | 407.0 | |
| 0.00 | 2.18 | 0.00 | 1.56 | 10.17 | 252.01 | 45.98 | 280.51 | 0.7222 | 572.0 | 421.0 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 11.67 | 252.32 | 46.29 | 282.54 | 0.7274 | 554.0 | 432.3 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 12.07 | 251.68 | 45.65 | 283.18 | 0.7205 | 560.0 | 467.8 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 14.31 | 248.18 | 42.15 | 287.06 | 0.6825 | 80.0 | 42.8 | |
| 0.00 | 1.91 | 0.00 | 1.32 | 19.15 | 248.44 | 42.41 | 293.84 | 0.6988 | 689.0 | 536.3 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 20.23 | 245.34 | 39.31 | 296.58 | 0.6670 | 573.0 | 548.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 16.59 | 241.41 | 35.38 | 292.83 | 0.6042 | 630.0 | 506.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
