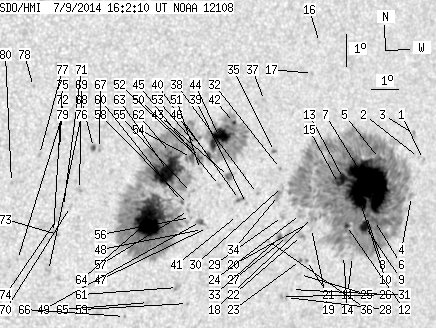

SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 308.32 | 1863.39 | 190.05 | 1145.52 | -6.96 | 240.85 | 34.81 | 252.74 | 0.5943 | 128.7 | 69.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.72 | -6.26 | 246.21 | 40.17 | 256.10 | 0.6629 | -64.0 | -75.8 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -6.19 | 246.00 | 39.97 | 256.13 | 0.6600 | 388.0 | 353.9 | |
| 0.00 | 2.54 | 0.00 | 1.66 | -5.47 | 245.78 | 39.75 | 257.13 | 0.6551 | 137.0 | 113.9 | |
| 0.00 | 3.63 | 0.00 | 2.39 | -7.39 | 245.84 | 39.80 | 254.30 | 0.6617 | -84.0 | -97.6 | |
| 0.73 | 967.14 | 0.47 | 616.97 | -6.16 | 244.45 | 38.42 | 255.64 | 0.6400 | 509.4 | 411.7 | |
| 5.63 | -5.00 | 3.64 | -5.00 | -8.08 | 244.44 | 38.41 | 252.74 | 0.6464 | 13.2 | 999999 | |
| 124.93 | -5.00 | 80.17 | -5.00 | -6.95 | 244.09 | 38.06 | 254.30 | 0.6379 | 1333.1 | 999999 | |
| 2.09 | -5.00 | 1.35 | -5.00 | -7.91 | 244.11 | 38.08 | 252.85 | 0.6415 | 511.4 | 999999 | |
| 8.72 | -5.00 | 5.62 | -5.00 | -8.25 | 244.11 | 38.07 | 252.34 | 0.6427 | 921.6 | 999999 | |
| 12.53 | -5.00 | 8.03 | -5.00 | -7.49 | 243.83 | 37.80 | 253.37 | 0.6364 | 1272.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.58 | -9.17 | 243.70 | 37.67 | 250.79 | 0.6412 | 2.0 | 110.4 | |
| 2.36 | -5.00 | 1.51 | -5.00 | -8.19 | 243.36 | 37.33 | 252.11 | 0.6329 | 1030.1 | 999999 | |
| 6.54 | -5.00 | 4.14 | -5.00 | -6.72 | 243.10 | 37.07 | 254.26 | 0.6241 | 1358.9 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.57 | -9.12 | 243.35 | 37.32 | 250.69 | 0.6365 | 299.0 | 294.7 | |
| 1.27 | -5.00 | 0.80 | -5.00 | -6.87 | 242.92 | 36.89 | 253.95 | 0.6223 | 1454.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -2.48 | 241.93 | 35.90 | 260.66 | 0.5959 | 548.0 | 416.4 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -3.43 | 241.70 | 35.67 | 259.03 | 0.5951 | 618.0 | 415.3 | |
| 0.00 | 7.63 | 0.00 | 4.78 | -7.88 | 242.02 | 35.99 | 251.97 | 0.6143 | 870.0 | 686.9 | |
| 0.00 | 1.82 | 0.00 | 1.14 | -8.23 | 242.01 | 35.98 | 251.43 | 0.6157 | 312.0 | 269.1 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -8.06 | 241.84 | 35.81 | 251.61 | 0.6128 | 688.0 | 510.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -9.22 | 241.93 | 35.90 | 249.85 | 0.6188 | 719.0 | 672.9 | |
| 0.00 | 5.81 | 0.00 | 3.63 | -8.43 | 241.65 | 35.62 | 250.94 | 0.6118 | 843.0 | 649.0 | |
| 0.64 | 1.45 | 0.40 | 0.91 | -9.21 | 241.70 | 35.67 | 249.75 | 0.6158 | 796.9 | 689.7 | |
| 0.00 | 5.81 | 0.00 | 3.62 | -7.77 | 241.55 | 35.52 | 251.93 | 0.6077 | 470.0 | 470.7 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -9.65 | 241.72 | 35.69 | 249.08 | 0.6179 | 747.0 | 609.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -10.11 | 241.47 | 35.44 | 248.25 | 0.6168 | 764.0 | 633.2 | |
| 0.00 | 5.45 | 0.00 | 3.38 | -8.44 | 241.13 | 35.09 | 250.66 | 0.6049 | 153.0 | 103.1 | |
| 0.00 | 2.63 | 0.00 | 1.65 | -10.35 | 241.31 | 35.28 | 247.79 | 0.6159 | 808.0 | 699.4 | |
| 0.00 | 3.09 | 0.00 | 1.91 | -7.81 | 240.87 | 34.84 | 251.54 | 0.5989 | 575.0 | 327.1 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -6.87 | 240.79 | 34.76 | 253.01 | 0.5941 | 483.0 | 462.6 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -10.31 | 241.11 | 35.08 | 247.74 | 0.6133 | 926.0 | 779.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -6.31 | 240.67 | 34.64 | 253.87 | 0.5903 | 895.0 | 665.9 | |
| 1.36 | 3.18 | 0.84 | 1.97 | -8.46 | 240.83 | 34.80 | 250.48 | 0.6011 | -764.9 | -531.8 | |
| 0.00 | 5.81 | 0.00 | 3.57 | -7.15 | 240.67 | 34.63 | 252.51 | 0.5935 | 361.0 | 312.2 | |
| 0.00 | 2.27 | 0.00 | 1.38 | -5.78 | 240.41 | 34.38 | 254.64 | 0.5848 | -696.0 | -513.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -8.57 | 240.42 | 34.39 | 250.10 | 0.5962 | 835.0 | 663.5 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -4.19 | 239.95 | 33.92 | 257.13 | 0.5730 | 703.0 | 585.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -7.06 | 239.88 | 33.84 | 252.28 | 0.5824 | -639.0 | -558.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -7.35 | 239.49 | 33.46 | 251.60 | 0.5785 | -460.0 | -359.8 | |
| 0.00 | 4.72 | 0.00 | 2.85 | -7.22 | 239.22 | 33.19 | 251.68 | 0.5743 | 893.0 | 611.5 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -7.71 | 239.19 | 33.16 | 250.84 | 0.5760 | -476.0 | -450.3 | |
| 1.09 | 758.68 | 0.65 | 445.06 | -4.82 | 238.88 | 32.85 | 255.59 | 0.5602 | 823.0 | -395.6 | |
| 2.45 | 5.08 | 1.47 | 3.05 | -6.49 | 238.76 | 32.73 | 252.68 | 0.5649 | -646.0 | -437.9 | |
| 24.42 | -42.00 | 14.52 | -42.00 | -5.27 | 238.36 | 32.33 | 254.59 | 0.5545 | -1051.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.47 | -6.75 | 238.46 | 32.43 | 252.06 | 0.5618 | -579.0 | -433.9 | |
| 2.45 | -42.00 | 1.45 | -42.00 | -5.84 | 238.03 | 32.00 | 253.42 | 0.5521 | -850.4 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -8.04 | 238.12 | 32.09 | 249.69 | 0.5631 | -549.0 | -500.0 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -8.10 | 237.95 | 31.92 | 249.49 | 0.5609 | -298.0 | -199.5 | |
| 1.63 | 4.90 | 0.97 | 2.92 | -7.85 | 237.85 | 31.82 | 249.87 | 0.5585 | -705.8 | -501.9 | |
| 0.54 | -42.00 | 0.32 | -42.00 | -5.86 | 237.71 | 31.68 | 253.23 | 0.5477 | -743.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -6.23 | 237.73 | 31.70 | 252.59 | 0.5495 | -563.0 | -433.4 | |
| 0.91 | -42.00 | 0.54 | -42.00 | -5.86 | 237.60 | 31.57 | 253.18 | 0.5461 | -807.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -5.49 | 237.58 | 31.54 | 253.83 | 0.5443 | -588.0 | -503.2 | |
| 2.54 | -42.00 | 1.50 | -42.00 | -5.85 | 237.38 | 31.35 | 253.08 | 0.5431 | -857.7 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -6.93 | 237.45 | 31.42 | 251.21 | 0.5488 | -487.0 | -408.4 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -7.71 | 237.48 | 31.45 | 249.89 | 0.5527 | -444.0 | -390.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -7.49 | 237.39 | 31.36 | 250.21 | 0.5504 | -543.0 | -375.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -7.30 | 237.37 | 31.34 | 250.53 | 0.5494 | -227.0 | -190.6 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -10.40 | 237.63 | 31.60 | 245.48 | 0.5686 | -622.0 | -609.2 | |
| 0.54 | 1.73 | 0.32 | 1.02 | -7.20 | 237.11 | 31.08 | 250.56 | 0.5453 | -611.2 | -498.2 | |
| 0.00 | 4.18 | 0.00 | 2.49 | -9.88 | 237.21 | 31.18 | 246.05 | 0.5603 | -672.0 | -529.8 | |
| 0.54 | -42.00 | 0.32 | -42.00 | -5.67 | 236.62 | 30.59 | 253.01 | 0.5316 | -954.3 | 999999 | |
| 45.58 | -42.00 | 26.65 | -42.00 | -6.22 | 236.55 | 30.52 | 251.97 | 0.5329 | -1102.1 | 999999 | |
| 57.38 | -42.00 | 33.54 | -42.00 | -7.75 | 235.98 | 29.95 | 248.90 | 0.5323 | -1279.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.13 | -10.32 | 236.21 | 30.18 | 244.63 | 0.5495 | -640.0 | -577.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -10.73 | 235.40 | 29.37 | 243.33 | 0.5412 | -665.0 | -600.1 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -5.46 | 234.11 | 28.08 | 251.97 | 0.4947 | -585.0 | -533.0 | |
| 1.45 | 2.91 | 0.83 | 1.65 | -5.42 | 233.90 | 27.87 | 251.91 | 0.4915 | -991.9 | -774.0 | |
| 0.00 | 3.00 | 0.00 | 1.70 | -6.71 | 233.49 | 27.45 | 249.15 | 0.4919 | -770.0 | -673.0 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -7.22 | 233.21 | 27.18 | 247.96 | 0.4908 | -666.0 | -561.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.22 | 232.96 | 26.93 | 247.80 | 0.4873 | -843.0 | -685.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -5.45 | 232.73 | 26.70 | 251.11 | 0.4746 | -713.0 | -595.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -8.08 | 232.82 | 26.78 | 246.04 | 0.4902 | -717.0 | -668.9 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -7.61 | 232.75 | 26.72 | 246.88 | 0.4865 | -794.0 | -582.9 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -8.01 | 232.67 | 26.64 | 246.05 | 0.4878 | -806.0 | -742.7 | |
| 0.00 | 2.54 | 0.00 | 1.45 | -9.20 | 232.59 | 26.56 | 243.77 | 0.4940 | -724.0 | -620.2 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -5.58 | 232.05 | 26.02 | 250.37 | 0.4654 | -681.0 | -531.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -3.48 | 231.77 | 25.74 | 254.58 | 0.4515 | -751.0 | -563.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.82 | 231.49 | 25.46 | 243.53 | 0.4765 | -813.0 | -606.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.42 | 231.14 | 25.11 | 247.98 | 0.4567 | -649.0 | -581.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
