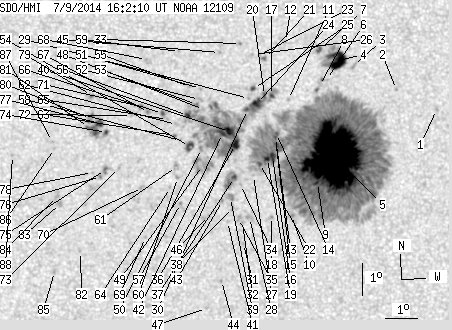

SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 294.09 | 1616.61 | 154.17 | 846.12 | -7.68 | 220.92 | 14.89 | 232.16 | 0.3234 | 787.6 | 297.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.54 | 225.15 | 19.12 | 241.70 | 0.3711 | 868.0 | 668.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -5.89 | 223.83 | 17.80 | 241.58 | 0.3472 | 656.0 | 481.9 | |
| 0.00 | 2.91 | 0.00 | 1.52 | -5.12 | 222.43 | 16.40 | 241.65 | 0.3209 | -420.0 | -341.1 | |
| 21.97 | 40.86 | 11.45 | 21.28 | -4.96 | 221.92 | 15.89 | 241.34 | 0.3122 | 1173.9 | 490.6 | |
| 218.72 | 1180.69 | 115.10 | 620.88 | -7.93 | 221.91 | 15.88 | 233.56 | 0.3384 | 1658.0 | 467.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -5.54 | 221.58 | 15.55 | 239.19 | 0.3121 | 691.0 | 522.1 | |
| 1.18 | 3.63 | 0.61 | 1.89 | -4.61 | 221.34 | 15.31 | 241.44 | 0.3009 | 1126.2 | 814.7 | |
| 0.00 | 5.27 | 0.00 | 2.74 | -5.72 | 221.36 | 15.33 | 238.32 | 0.3105 | 203.0 | 543.3 | |
| 1.63 | -5.00 | 0.86 | -5.00 | -8.73 | 221.40 | 15.37 | 230.77 | 0.3397 | 1063.8 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -9.74 | 220.61 | 14.58 | 226.99 | 0.3408 | 188.0 | 176.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.13 | 220.39 | 14.36 | 235.46 | 0.3007 | -665.0 | -443.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.34 | 220.26 | 14.23 | 240.45 | 0.2829 | -663.0 | -485.3 | |
| 2.18 | -5.00 | 1.14 | -5.00 | -7.52 | 220.05 | 14.02 | 231.12 | 0.3099 | 1148.6 | 999999 | |
| 0.82 | -5.00 | 0.43 | -5.00 | -7.18 | 220.04 | 14.01 | 231.98 | 0.3063 | 882.4 | 999999 | |
| 1.09 | -5.00 | 0.57 | -5.00 | -7.30 | 220.01 | 13.98 | 231.60 | 0.3072 | 940.7 | 999999 | |
| 4.09 | -5.00 | 2.13 | -5.00 | -7.89 | 219.94 | 13.91 | 229.96 | 0.3123 | 1303.8 | 999999 | |
| 1.27 | 209.64 | 0.66 | 108.24 | -6.00 | 219.85 | 13.82 | 234.79 | 0.2921 | -676.1 | 40.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.76 | 219.98 | 13.95 | 225.67 | 0.3335 | 635.0 | 506.0 | |
| 2.00 | -5.00 | 1.04 | -5.00 | -7.95 | 219.78 | 13.75 | 229.49 | 0.3110 | 1327.6 | 999999 | |
| 1.09 | -17.00 | 0.56 | -17.00 | -5.99 | 219.63 | 13.60 | 234.37 | 0.2890 | -784.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -4.85 | 219.61 | 13.58 | 237.68 | 0.2780 | -999.0 | -800.9 | |
| 1.27 | -5.00 | 0.66 | -5.00 | -8.10 | 219.53 | 13.50 | 228.60 | 0.3095 | 1031.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -4.73 | 219.45 | 13.42 | 237.76 | 0.2746 | -755.0 | -575.9 | |
| 5.63 | -17.00 | 2.91 | -17.00 | -6.24 | 219.38 | 13.35 | 233.18 | 0.2881 | -449.0 | 999999 | |
| 1.09 | 2.45 | 0.56 | 1.27 | -5.77 | 219.28 | 13.25 | 234.29 | 0.2820 | -976.7 | -778.7 | |
| 0.00 | 0.64 | 0.00 | 0.33 | -4.72 | 219.26 | 13.23 | 237.40 | 0.2719 | -673.0 | -557.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.47 | 219.36 | 13.33 | 227.33 | 0.3114 | 903.0 | 679.7 | |
| 0.00 | 4.27 | 0.00 | 2.24 | -9.78 | 219.28 | 13.25 | 224.16 | 0.3255 | -140.0 | -147.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.08 | 219.13 | 13.10 | 233.10 | 0.2831 | -719.0 | -584.6 | |
| 1.09 | -17.00 | 0.56 | -17.00 | -6.42 | 219.11 | 13.08 | 232.09 | 0.2862 | -478.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -10.60 | 219.12 | 13.09 | 222.10 | 0.3335 | -660.0 | -570.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.94 | 219.06 | 13.03 | 223.36 | 0.3249 | -338.0 | -247.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -4.38 | 218.84 | 12.81 | 237.67 | 0.2629 | -929.0 | -717.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.75 | 218.95 | 12.92 | 225.80 | 0.3097 | 777.0 | 637.3 | |
| 0.00 | 3.00 | 0.00 | 1.57 | -9.81 | 218.93 | 12.90 | 223.35 | 0.3218 | -626.0 | -545.4 | |
| 6.36 | -17.00 | 3.29 | -17.00 | -7.50 | 218.76 | 12.73 | 228.44 | 0.2932 | 1199.2 | 999999 | |
| 1.36 | 15.53 | 0.71 | 8.07 | -8.52 | 218.76 | 12.73 | 225.89 | 0.3048 | 1129.3 | 507.9 | |
| 0.00 | 3.81 | 0.00 | 1.99 | -9.46 | 218.76 | 12.73 | 223.73 | 0.3157 | -628.0 | -494.2 | |
| 0.00 | 5.08 | 0.00 | 2.65 | -9.15 | 218.65 | 12.62 | 224.20 | 0.3108 | -752.0 | -626.0 | |
| 6.17 | -17.00 | 3.19 | -17.00 | -7.09 | 218.56 | 12.53 | 229.05 | 0.2862 | 1324.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.90 | 218.58 | 12.55 | 222.38 | 0.3190 | -530.0 | -328.8 | |
| 3.36 | -17.00 | 1.74 | -17.00 | -7.15 | 218.34 | 12.31 | 228.40 | 0.2841 | 586.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.24 | 218.40 | 12.37 | 223.42 | 0.3090 | -959.0 | -756.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.75 | 218.47 | 12.44 | 218.41 | 0.3409 | -786.0 | -625.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.64 | 218.19 | 12.16 | 235.42 | 0.2561 | -746.0 | -618.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.70 | 217.98 | 11.94 | 221.40 | 0.3098 | -773.0 | -626.7 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -12.63 | 218.03 | 12.00 | 215.84 | 0.3480 | -745.0 | -644.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.40 | 217.72 | 11.69 | 229.01 | 0.2680 | -593.0 | -499.5 | |
| 0.00 | 17.89 | 0.00 | 9.25 | -8.14 | 217.74 | 11.71 | 224.44 | 0.2881 | -22.0 | -163.4 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -7.61 | 217.69 | 11.66 | 225.66 | 0.2813 | -816.0 | -603.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.75 | 217.62 | 11.59 | 230.65 | 0.2596 | -789.0 | -694.3 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -6.09 | 217.59 | 11.56 | 229.58 | 0.2629 | -677.0 | -636.7 | |
| 0.00 | 3.09 | 0.00 | 1.58 | -6.24 | 217.50 | 11.47 | 228.92 | 0.2634 | -1013.0 | -834.1 | |
| 3.72 | 6.90 | 1.92 | 3.56 | -7.54 | 217.31 | 11.28 | 224.89 | 0.2760 | -965.3 | -678.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.68 | 217.27 | 11.24 | 230.00 | 0.2544 | -886.0 | -772.3 | |
| 2.09 | -17.00 | 1.07 | -17.00 | -6.58 | 217.23 | 11.20 | 227.27 | 0.2638 | -1112.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -9.31 | 217.08 | 11.05 | 220.05 | 0.2952 | -870.0 | -680.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.35 | 217.03 | 11.00 | 224.65 | 0.2704 | -766.0 | -587.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.60 | 216.94 | 10.91 | 232.62 | 0.2385 | -801.0 | -646.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -8.50 | 216.96 | 10.93 | 221.61 | 0.2837 | -870.0 | -653.8 | |
| 0.00 | 4.90 | 0.00 | 2.53 | -8.15 | 216.92 | 10.89 | 222.33 | 0.2790 | -699.0 | -547.6 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -6.85 | 216.89 | 10.86 | 225.63 | 0.2628 | -793.0 | -604.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -7.19 | 216.83 | 10.80 | 224.56 | 0.2662 | -963.0 | -828.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.81 | 216.75 | 10.72 | 220.33 | 0.2853 | -848.0 | -665.6 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -6.69 | 216.61 | 10.57 | 225.31 | 0.2575 | -751.0 | -638.0 | |
| 0.82 | 3.45 | 0.42 | 1.77 | -6.50 | 216.45 | 10.41 | 225.40 | 0.2534 | -1010.6 | -797.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.47 | 216.01 | 9.98 | 224.27 | 0.2477 | -945.0 | -893.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.83 | 215.92 | 9.89 | 229.07 | 0.2275 | -851.0 | -695.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.36 | 216.01 | 9.98 | 215.05 | 0.2982 | -785.0 | -666.0 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -8.80 | 215.87 | 9.84 | 217.97 | 0.2758 | -743.0 | -754.3 | |
| 0.00 | 3.18 | 0.00 | 1.62 | -6.28 | 215.76 | 9.73 | 224.08 | 0.2424 | -999.0 | -828.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.55 | 215.48 | 9.45 | 222.48 | 0.2426 | -890.0 | -692.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.16 | 215.14 | 9.11 | 217.29 | 0.2598 | -894.0 | -614.3 | |
| 0.82 | 2.54 | 0.42 | 1.30 | -7.07 | 214.71 | 8.68 | 218.67 | 0.2408 | -880.2 | -787.8 | |
| 0.00 | 4.09 | 0.00 | 2.09 | -8.22 | 214.70 | 8.67 | 215.81 | 0.2562 | -1179.0 | -961.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -8.44 | 214.55 | 8.52 | 214.84 | 0.2577 | -1024.0 | -874.5 | |
| 3.54 | 17.52 | 1.80 | 8.93 | -6.79 | 214.49 | 8.46 | 218.69 | 0.2347 | -1090.5 | -893.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -8.31 | 214.30 | 8.27 | 214.33 | 0.2535 | -926.0 | -704.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.92 | 214.23 | 8.20 | 220.26 | 0.2205 | -867.0 | -800.7 | |
| 0.00 | 5.45 | 0.00 | 2.77 | -6.63 | 214.21 | 8.18 | 218.18 | 0.2297 | -955.0 | -888.8 | |
| 0.73 | -77.00 | 0.37 | -77.00 | -6.91 | 214.15 | 8.12 | 217.24 | 0.2328 | -1019.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.78 | 213.98 | 7.95 | 208.49 | 0.2862 | -601.0 | -539.5 | |
| 0.00 | 3.18 | 0.00 | 1.63 | -9.27 | 213.33 | 7.29 | 209.12 | 0.2586 | -882.0 | -752.0 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -9.05 | 213.20 | 7.17 | 209.12 | 0.2543 | -888.0 | -707.5 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -11.40 | 213.19 | 7.15 | 205.06 | 0.2895 | -812.0 | -679.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -7.55 | 213.11 | 7.08 | 211.98 | 0.2317 | -859.0 | -681.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.33 | 213.04 | 7.01 | 212.25 | 0.2280 | -905.0 | -645.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.76 | 211.81 | 5.78 | 206.60 | 0.2239 | -776.0 | -571.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
