SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.44 | 0.00 | 7.15 | -23.82 | 195.36 | -10.67 | 161.23 | 0.5022 | -178.2 | -134.0 | |
|
previous
or next observation for the same group /

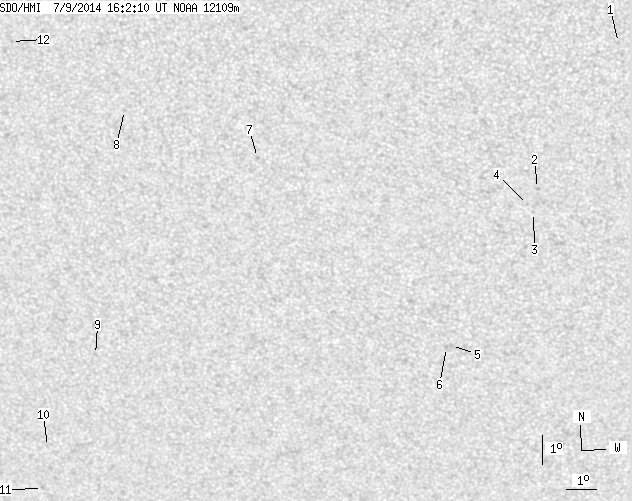

back to the solar disc SDO HMI 2014-07-09 16:02:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.43 | -16.71 | 205.92 | -0.11 | 179.69 | 0.3513 | 660.0 | 585.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.55 | 203.25 | -2.78 | 173.98 | 0.4316 | 977.0 | 808.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.36 | 203.10 | -2.93 | 173.87 | 0.4445 | 619.0 | 449.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -22.09 | 202.91 | -3.12 | 173.40 | 0.4406 | 761.0 | 568.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -26.99 | 200.17 | -5.86 | 169.91 | 0.5210 | -758.0 | -557.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -27.06 | 200.00 | -6.03 | 169.64 | 0.5226 | -788.0 | -660.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.57 | 194.07 | -11.96 | 154.72 | 0.4561 | -750.0 | -586.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.08 | 189.76 | -16.27 | 145.54 | 0.4697 | -657.0 | -409.9 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -27.48 | 187.61 | -18.43 | 151.46 | 0.5891 | -552.0 | -293.6 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -30.87 | 185.14 | -20.89 | 151.54 | 0.6446 | -300.0 | -397.5 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -32.46 | 184.56 | -21.47 | 152.26 | 0.6656 | -648.0 | -502.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -16.89 | 186.19 | -19.84 | 137.05 | 0.4786 | -703.0 | -490.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
