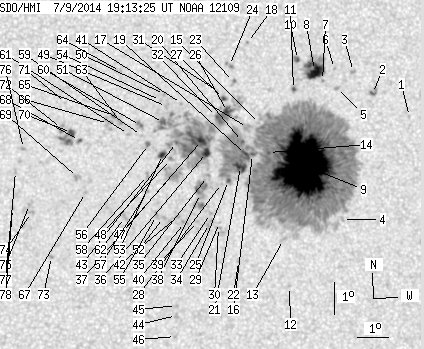

SDO HMI 2014-07-09 19:13:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 277.14 | 1650.22 | 146.71 | 871.12 | -7.70 | 220.80 | 16.54 | 234.97 | 0.3457 | 881.1 | 283.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-09 19:13:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.51 | 225.27 | 21.01 | 243.95 | 0.3983 | 802.0 | 563.7 | |
| 1.09 | 4.81 | 0.58 | 2.57 | -5.77 | 224.04 | 19.77 | 244.31 | 0.3751 | 885.2 | 665.5 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -5.07 | 223.40 | 19.13 | 245.29 | 0.3609 | -793.0 | -667.5 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -9.66 | 223.24 | 18.98 | 234.47 | 0.3956 | 10.0 | 74.9 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -5.59 | 222.86 | 18.60 | 243.36 | 0.3567 | -861.0 | -704.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -4.97 | 222.78 | 18.52 | 244.84 | 0.3511 | -409.0 | -395.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.33 | 222.40 | 18.14 | 243.44 | 0.3481 | -637.0 | -524.2 | |
| 19.79 | 40.58 | 10.43 | 21.37 | -5.01 | 222.14 | 17.87 | 243.92 | 0.3419 | 1130.4 | 510.8 | |
| 212.78 | 1158.13 | 113.03 | 614.70 | -7.95 | 221.88 | 17.62 | 236.28 | 0.3621 | 1729.2 | 474.0 | |
| 1.45 | 3.54 | 0.76 | 1.86 | -4.66 | 221.58 | 17.32 | 244.15 | 0.3312 | 1066.6 | 770.9 | |
| 0.91 | 1.82 | 0.48 | 0.95 | -5.59 | 221.48 | 17.22 | 241.53 | 0.3365 | 958.2 | 806.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -11.74 | 221.63 | 17.37 | 227.86 | 0.3959 | -723.0 | -651.0 | |
| 0.00 | 3.36 | 0.00 | 1.80 | -10.25 | 221.35 | 17.09 | 230.37 | 0.3771 | 57.0 | 80.7 | |
| 1.09 | -9.00 | 0.57 | -9.00 | -7.52 | 220.74 | 16.48 | 235.51 | 0.3427 | 1128.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -6.62 | 220.42 | 16.16 | 237.26 | 0.3301 | 240.0 | 262.2 | |
| 1.18 | -9.00 | 0.62 | -9.00 | -7.57 | 220.23 | 15.97 | 234.54 | 0.3363 | 1226.0 | 999999 | |
| 0.00 | 7.53 | 0.00 | 3.95 | -6.73 | 220.04 | 15.78 | 236.33 | 0.3259 | 340.0 | 310.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -4.11 | 219.97 | 15.71 | 243.50 | 0.3032 | -657.0 | -517.0 | |
| 3.99 | -9.00 | 2.10 | -9.00 | -7.57 | 220.01 | 15.75 | 234.16 | 0.3333 | 1234.0 | 999999 | |
| 0.82 | -9.00 | 0.43 | -9.00 | -7.16 | 219.90 | 15.64 | 234.99 | 0.3279 | 889.6 | 999999 | |
| 6.72 | -9.00 | 3.53 | -9.00 | -7.94 | 219.86 | 15.60 | 233.01 | 0.3349 | 1375.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.91 | 219.93 | 15.67 | 226.56 | 0.3668 | -810.0 | -635.4 | |
| 0.00 | 2.54 | 0.00 | 1.32 | -5.30 | 219.56 | 15.30 | 239.38 | 0.3065 | -808.0 | -649.5 | |
| 0.00 | 3.45 | 0.00 | 1.79 | -4.80 | 219.42 | 15.16 | 240.58 | 0.3004 | -867.0 | -824.3 | |
| 1.00 | -9.00 | 0.52 | -9.00 | -8.37 | 219.49 | 15.23 | 231.32 | 0.3344 | 1155.4 | 999999 | |
| 4.72 | 242.28 | 2.46 | 126.01 | -6.22 | 219.39 | 15.13 | 236.55 | 0.3123 | -612.2 | 19.8 | |
| 1.09 | 2.27 | 0.57 | 1.18 | -5.82 | 219.25 | 14.99 | 237.42 | 0.3067 | -926.1 | -784.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.46 | 219.27 | 15.01 | 230.71 | 0.3325 | 770.0 | 653.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -9.68 | 219.26 | 15.00 | 227.92 | 0.3453 | -348.0 | -300.2 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -9.83 | 219.24 | 14.98 | 227.53 | 0.3467 | -479.0 | -341.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.60 | 219.06 | 14.80 | 237.69 | 0.3020 | -665.0 | -482.8 | |
| 0.54 | -26.00 | 0.28 | -26.00 | -6.37 | 219.05 | 14.78 | 235.54 | 0.3089 | -687.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -9.39 | 218.96 | 14.70 | 227.98 | 0.3385 | -534.0 | -408.6 | |
| 0.00 | 3.90 | 0.00 | 2.06 | -9.70 | 218.94 | 14.68 | 227.25 | 0.3417 | -456.0 | -345.8 | |
| 0.00 | 3.90 | 0.00 | 2.04 | -8.23 | 218.82 | 14.56 | 230.38 | 0.3244 | 759.0 | 716.6 | |
| 5.08 | -26.00 | 2.65 | -26.00 | -7.48 | 218.76 | 14.50 | 232.11 | 0.3159 | 1193.5 | 999999 | |
| 4.99 | -26.00 | 2.60 | -26.00 | -7.11 | 218.59 | 14.33 | 232.75 | 0.3099 | 1389.3 | 999999 | |
| 0.00 | 24.42 | 0.00 | 12.80 | -8.76 | 218.62 | 14.36 | 228.74 | 0.3274 | 376.0 | 204.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.63 | 218.56 | 14.30 | 226.64 | 0.3363 | -642.0 | -504.2 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -9.65 | 218.14 | 13.88 | 225.75 | 0.3316 | -726.0 | -669.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.95 | 217.93 | 13.67 | 234.59 | 0.2896 | -849.0 | -608.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -9.46 | 217.91 | 13.65 | 225.70 | 0.3267 | -958.0 | -807.8 | |
| 0.54 | -26.00 | 0.28 | -26.00 | -7.16 | 217.80 | 13.54 | 231.04 | 0.3001 | -660.7 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -12.58 | 218.03 | 13.77 | 219.69 | 0.3652 | -751.0 | -598.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -12.27 | 218.01 | 13.75 | 220.23 | 0.3611 | -735.0 | -636.2 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -13.25 | 218.03 | 13.77 | 218.52 | 0.3736 | -800.0 | -553.8 | |
| 0.00 | 25.51 | 0.00 | 13.28 | -8.12 | 217.74 | 13.48 | 228.47 | 0.3095 | -9.0 | -117.4 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -7.68 | 217.63 | 13.37 | 229.33 | 0.3034 | -758.0 | -625.1 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -6.04 | 217.46 | 13.20 | 233.39 | 0.2841 | -872.0 | -699.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -5.66 | 217.39 | 13.12 | 234.31 | 0.2794 | -827.0 | -678.9 | |
| 2.00 | -26.00 | 1.03 | -26.00 | -6.53 | 217.37 | 13.11 | 231.83 | 0.2880 | -1149.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -9.49 | 217.47 | 13.21 | 224.70 | 0.3218 | -843.0 | -694.0 | |
| 3.09 | -26.00 | 1.60 | -26.00 | -7.52 | 217.37 | 13.11 | 229.18 | 0.2984 | -958.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.85 | 217.26 | 13.00 | 233.52 | 0.2796 | -709.0 | -577.5 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -9.42 | 217.24 | 12.98 | 224.36 | 0.3184 | -817.0 | -674.4 | |
| 0.64 | 2.72 | 0.33 | 1.41 | -7.20 | 216.92 | 12.66 | 229.02 | 0.2893 | -944.4 | -749.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.67 | 216.93 | 12.67 | 225.40 | 0.3059 | -861.0 | -713.2 | |
| 0.00 | 3.09 | 0.00 | 1.60 | -8.17 | 216.92 | 12.66 | 226.56 | 0.3000 | -694.0 | -668.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.92 | 216.69 | 12.43 | 229.26 | 0.2833 | -657.0 | -546.0 | |
| 0.00 | 4.81 | 0.00 | 2.48 | -6.61 | 216.65 | 12.39 | 230.02 | 0.2794 | -1035.0 | -849.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.88 | 216.28 | 12.02 | 228.41 | 0.2777 | -930.0 | -741.5 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -9.47 | 216.23 | 11.97 | 221.95 | 0.3075 | -894.0 | -731.4 | |
| 0.00 | 2.90 | 0.00 | 1.49 | -6.48 | 216.02 | 11.76 | 228.91 | 0.2699 | -1009.0 | -819.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.93 | 215.99 | 11.73 | 233.47 | 0.2532 | -840.0 | -674.0 | |
| 0.00 | 2.54 | 0.00 | 1.31 | -6.29 | 215.80 | 11.54 | 228.90 | 0.2650 | -1057.0 | -909.6 | |
| 0.00 | 7.99 | 0.00 | 4.10 | -6.53 | 215.65 | 11.39 | 227.83 | 0.2658 | -940.0 | -727.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.67 | 214.98 | 10.72 | 220.63 | 0.2837 | -760.0 | -520.0 | |
| 0.82 | 2.81 | 0.42 | 1.44 | -7.05 | 214.75 | 10.49 | 224.07 | 0.2610 | -877.9 | -646.5 | |
| 0.00 | 4.18 | 0.00 | 2.15 | -8.20 | 214.72 | 10.46 | 221.04 | 0.2748 | -866.0 | -818.8 | |
| 2.81 | 16.43 | 1.44 | 8.42 | -6.80 | 214.50 | 10.24 | 224.05 | 0.2550 | -1079.1 | -893.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -5.86 | 214.29 | 10.03 | 226.15 | 0.2414 | -759.0 | -597.8 | |
| 0.00 | 4.27 | 0.00 | 2.18 | -6.67 | 214.18 | 9.92 | 223.51 | 0.2497 | -634.0 | -849.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -10.66 | 213.97 | 9.71 | 213.72 | 0.2999 | -811.0 | -710.7 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -9.27 | 213.31 | 9.05 | 214.60 | 0.2745 | -853.0 | -722.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.02 | 213.24 | 8.98 | 214.93 | 0.2704 | -893.0 | -734.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.27 | 213.01 | 8.75 | 218.33 | 0.2445 | -928.0 | -791.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -7.99 | 212.78 | 8.52 | 215.83 | 0.2517 | -785.0 | -721.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.14 | 212.71 | 8.45 | 213.07 | 0.2670 | -859.0 | -705.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
